Product Details:
Payment & Shipping Terms:
|
Raw Material: | PP PE ABS Etc | Processing Capacity: | 100-1500kg/h |
---|---|---|---|
Screw Design: | Single Screw Extruder | Cutting Type: | Water Ring Type |
Machine Type: | Mother Baby Extruder Or Two Stages Extruder | Feeding Type: | Force Feeding Or Compactor |
Degassing Device: | Vacuum Degassing | Screen Changer: | Without Mesh Type Filter |
Main Motor Brand: | Siemens Beide | Name: | Plastic Recycling Pelletizing Line |
High Light: | PLASTAR pelletizing machine for plastic recycling,PLASTAR plastic granulator line,1400L pelletizing machine for plastic recycling |
Crushed Rigid Hard PP PE HDPE Plastic Scraps Material Recycling Pelletizing Line
This type of plastic pelletizing production line is desighed for hard pp hdpe ldpe crushed flakes specially,with features of energy saving ,stable performance , good plasticizing , cleaning and drying effection;
Pelletizing flow: the bulk materials or thick flakes after crushed will be conveyed into the single screw extruder by screw loader,then,compressing,plasticizing in the extruder and remove the violatile and moisture by the vacuum system,after filtering through the filtration system to pelletize into granules. with different screw diameters of single screw extruders, the capacity can cover 100 to 1500kg/h.
Recycling Material of Plastic Recycling Pelletizing Machine:
Material | PE, HDPE, LDPE, LLDPE, PP, CPP, BOPP, EPS etc. |
Shape | Film, Bag, Woven bag, Raffia,Bubble film, Foam, nonwoven fabric, Filament,sheet,chips |
Type | Loose, Bundle, Roll, Scrap |
Origin | Off cut, Washed film, In house waste, Regrind |
Features:
• Gear box: high-torque design; low- noise; smooth running.
• Special barrel design can assure better compounding effect in order to reduce the problem of black point and chromatism.
• Equipped with a force feeder and hydraulic screen changers according to material’s special character, it can get a better capacity and save more power.
• Vacuum or common gas exhaust system, which help getting rid of damp, waste gas, impurity, can ensure a more stable extrusion and more solid pellets.
Basic data of Plastic Recycling Pelletizing Machine:
Machine Size | Date of Compactor | Data of Single Screw Extruder |
Throughput Rate (kg/h) |
|||
Efficiency Volume (Liter) |
Motor Power (KW) |
Diameter of screw (mm) |
L/D |
Motor Power (KW) |
||
PSD 80 | 300 | 37 | 80 | 36 | 45/55 | 160-220 |
PSD 100 | 500 | 55 | 100 | 36 | 90/110 | 300-380 |
PSD 120 | 800 | 90 | 120 | 36 | 132 | 450-480 |
PSD 140 | 1000 | 110 | 140 | 36 | 160/185 | 500-650 |
PSD 160 | 1200 | 132 | 160 | 34 | 220/250 | 800-1000 |
PSD 180 | 1400 | 315 | 180 | 34 | 315 | 1000-1200 |

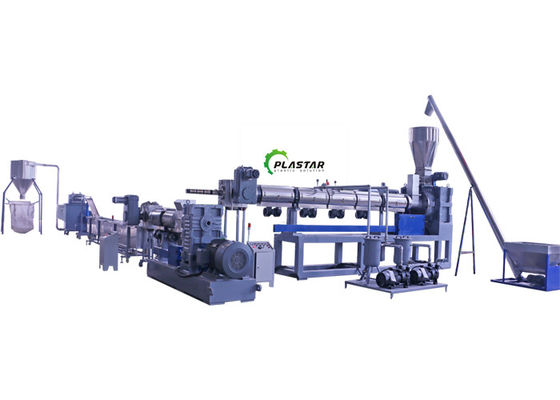

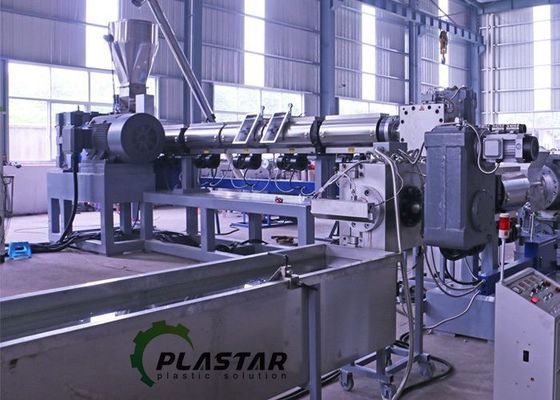

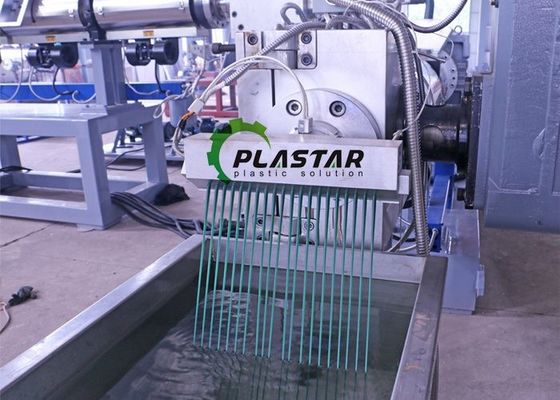

Machine pictures for reference:
