Product Details:
Payment & Shipping Terms:
|
Raw Material: | PLA, PBAT | Cutting Type: | Strand Cutting Type |
---|---|---|---|
Processing Capacity: | 100-1500kg/h | Screw Design: | Single Screw Extruder |
Machine Type: | Mother Baby Extruder Or Two Stages Extruder | Feeding Type: | Force Feeding Or Compactor |
Degassing Device: | Vacuum Degassing | Screen Changer: | Without Mesh Type Filter |
Main Motor Brand: | Siemens Beide | Name: | Plastic Recycling Pelletizing Line |
High Light: | PLA PBAT Plastic Pelletizing Recycling Machine,PLASTAR Biodegradable Resin small plastic granulator,PLASTAR PVA Plastic Pelletizing Recycling Machine |
PLA PBAT PVA Biodegradable Resin Plastic Granulating Pelletizing Machine
Product Application
PLA Biodegradable Resin Making/Granulating/Pelletizing Machine is mainly used for granulating biodegradable corn starch with formula material that make biodegradable resin to make biodegradable product,like dishes,chopsticks,food container,shopping bags and so on.
Main Features
1)Extruder screw and barrel is nitriding,with good quality with long life time.
2) Gearbox: From Jiangyin gearbox company,very famous brand in China,with nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4) Driving system: adopting WN motor, using ABB inverter which provide stable torque output and various speed.
5) Belt traction machine are all made by stainless steel.
6) Granule cutting machine speed is adjustable by frequency inverter,cutting motor is 4/5.5/7.5KW,cutting stable and quick.
General Overview of 100% Biodegradable PLA PBAT starch biodegradable granules/plastic bags making machine
100% Biodegradable PLA PBAT starch biodegradable granules/plastic bags making machine | |
Product name | 100% Biodegradable PLA PBAT starch biodegradable granules/plastic bags making machine |
Processing material | PLA/PBAT/PVA+Corn starch/Cassava starch+some small additives |
Final product | 100% biodegradable granule |
Application | Films, bags, plates, cups, straws, chopsticks,etc |
Capacity | 10~1000KG/H (We can provide any capacity model as per cutomers' need) |
Certification | CE&ISO |
Formula | Available (We have formulation, it can be provide to customers together with the machine) |

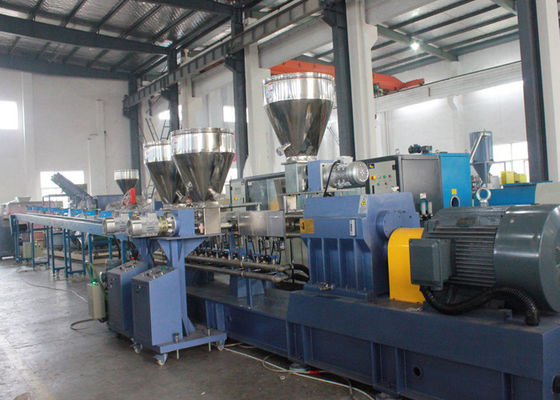

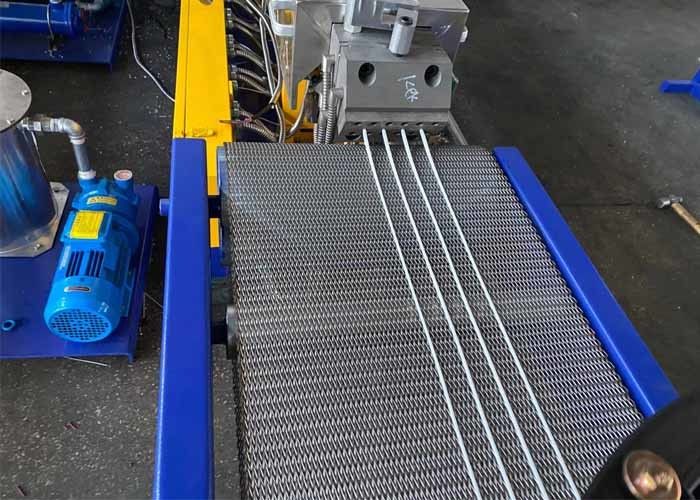

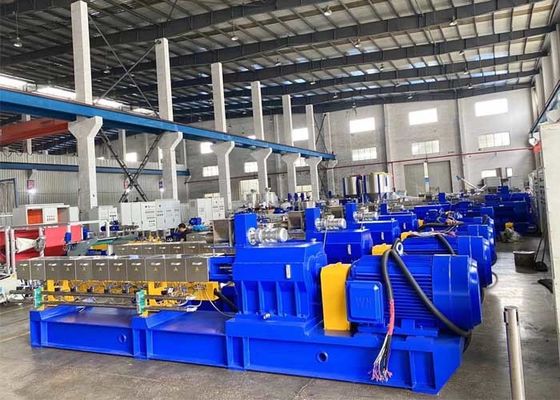

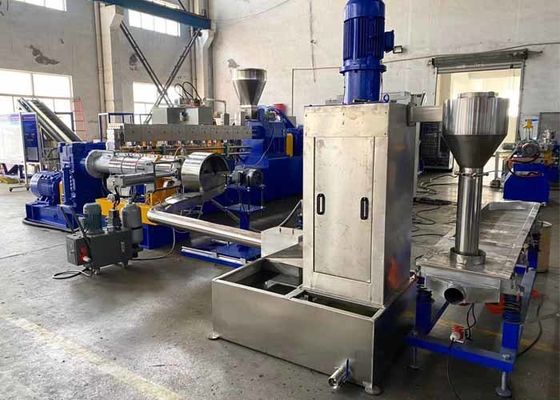

Machine pictures for reference:
We have different model machine for you choose:
Model/Parameter | SHJ-20 | SHJ-35 | SHJ-50 | SHJ-65 | SHJ-75 | SHJ-95 |
Capacity | 10-20 | 30-50 | 100-200 | 200-300 | 300-400 | 400-800 |
Main motor | 4 | 45-22 | 37-65 | 45-75 | 75-160 | 132-250 |
Screw diameter | 21 | 35.6 | 50.5 | 62.4 | 71 | 93 |
L/D | 28-40 | 28-48 | 28-64 | 28-64 | 28-64 | 28-64 |
Rotate speed(rpm) | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 | |
Screw material | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal |
Screw hardness | HRC65-70 | HRC65-70 | HRC65-70 | HRC65-70 | HRC65-70 | HRC65-70 |
Shaft core material | 40CrNiMoA | 40CrNiMoA | 40CrNiMoA | 40CrNiMoA | 40CrNiMoA | 40CrNiMoA |
