Product Details:
Payment & Shipping Terms:
|
| Processed Plastic: | PMMA ASA PVC | Dimension(L*W*H): | 55000*1500*3500mm |
|---|---|---|---|
| Screw Design: | Conical Twin-screw | Die Type: | T Type, Thickness Adjustable |
| Capacity: | 120 - 580 Kg/h | Sheet Wide: | 1220-1560mm |
| Thickness: | 2-12mm | Core Components: | PLC, Engine, Gearbox |
| Warranty: | 1 Year | Final Product: | Glazed Roof Tile |
| High Light: | ASA PMMA pvc profile extrusion line,PMMA pvc ceiling panel machine,Conical screw pvc profile extrusion line |
||
PVC ASA PMMA Plastic Glazed Ceiling Tile PVC Roofing Sheet Extruding Making Machine
PMMA ASA PVC profile production line
Glazed tile roofing sheet Applications
The Plastic Roofing Tile Roll Forming Machine is mainly used in the production of plastic glazed tile.The plastic glazed tiles are widely used in the garden-style factory,tourist scenic spots, pavilions,hotels,family building, etc.
Product Flows
High speed mixer---conical twin screw extruder---co-extruder---co-extrusion die head---embossing and cooling rollers---forming machine---saw cutting machine---stacker---pneumatic pressing machine for ridge tiles moulds
PMMA ASA PVC Glazed Roofing Tile Extruding Making Machine including:
| No. | Machine | Quantity |
| 1 | Screw loader | 1 set |
| 2 | SJZ80/156 conical twin-screw extruder | 1 set |
| 3 | SJ65/35 single screw co-extruder | 1 set |
| 4 | Extrusion mould and flow distributor | 1 set |
| 5 | Embossing roller | 1 set |
| 6 | Side cutter | 1 set |
| 7 | Glazed-tile forming machine | 1 set |
| 8 | Cutter | 1 set |
| 9 | Stacker | 1 set |
Auxiliary machine:
| No. | Machine | Quantity |
| 1 | Mould: Main rigde tile; Oblique ridge tile; T cock; Tile end | 4set |
| 2 | Pressing machine and oven | 2set |
| 3 | SRL-Z500/1000 Mixing unit | 1set |
| 4 | Screw loader | 1set |
| 5 | SWP360 Crusher | 1set |
| 6 | SMP600 Miller | 1set |

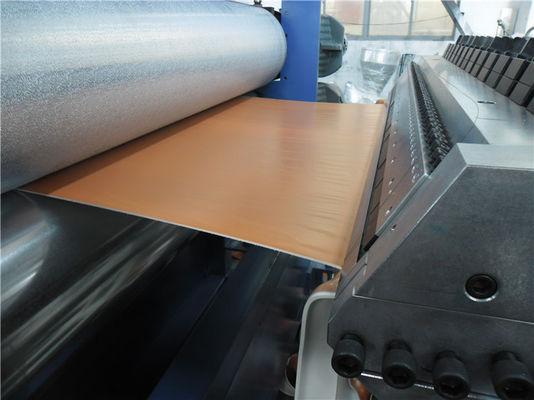

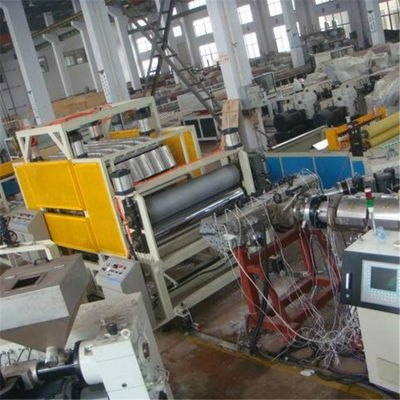

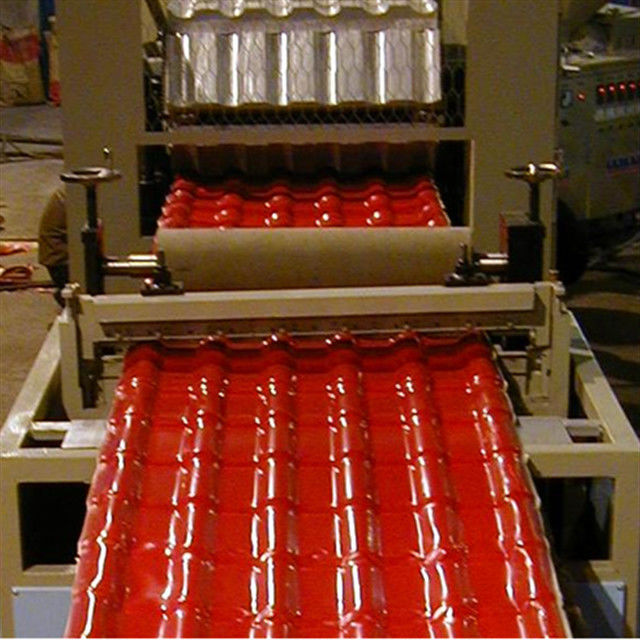

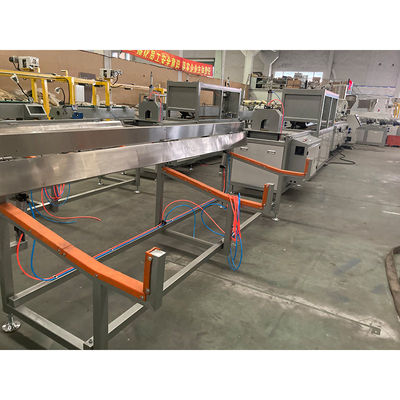

PVC ASA PMMA Roofing Sheet Extrusion Line pictures:
