PP PE Plastic Recycling Granulator Machine Waste Plastic Granules Making Machine

The actual production capacity is even bigger than the supplier promised me, i am very satisfied with this machine, very good. I surely will cooperate with you again in the future.

—— Mr. Joshua Douglas

Good service, prompt delivery

—— Mr. Bond Toth

I am so glad to have this pleasant business cooperation with Plastar,they have done quite amazing job. We communicate so well and they give me very professional help of this new technology,we will start the new business of plastic recycling and we are sure it will be a good result.

—— Mr. Mark harrison

I am very happy to have such good cooperator and shipping is very fast and solve my issue very fast,give big thumb,happy happy~ Very professional and easy to communicate.

—— Mrs. Nancy

I'm Online Chat Now

PP PE Plastic Recycling Granulator Machine Waste Plastic Granules Making Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  PP PE Plastic Recycling Granulator Machine Waste Plastic Granules Making Machine

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: PL500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 25000-85000$
Packaging Details: wood box+wood pallet+stretch film package
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/year
Detailed Product Description
Raw Material: PP PE ABS PET HDPE, LDPE Etc Screw Design: Single Screw Extruder
Screw Material: 38CrMoAL Screen Changer: No Stop Automatic Hydraulic Screen Changer
Processing Capacity: 100-1200kg/h Machine Type: Single Stage Or Double Stage
Feeding Type: Force Feeding Degassing Device: Vacuum Degassing
Main Motor Brand: Siemens Beide Name: Plastic Recycling Pelletizing Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

Single stage plastic recycling granulator machine

,

Vacuum degassing plastic granules making machine

,

plastar plastic recycling granulator machine

Customized PP PE Pelletizing Line Plastic Recycling Granulating Machine Waste Plastic Granules Making Machine

It can be coustomized according to your specific requirements.

The capacity can be 100-1200kg/h.



Features:

1. Very strong and long life: Screw and barrel are made of 38CrMoAlA, inlet mouth treated with special alloy.

2. Easy operation: It has automatic constant temperature control and stable performance. After adjusting well, 1 or 2 workers are enough to run this machine, to feed the materials and change pellet receiver.

3. Low cost in using after redesign:Now this kind machine is more economic in electric power source and also water. In the long working life of this machine, it can save many sources in energy!

4. High output, long operating life and lower noise: it’s the ideal waste plastics regenerative pelletizer machine for nowadays.

Configuration:

No. Name Specification Amount
1 Belt conveyor DS-60 1set
2 Pelletizing system

single stage extruder/

double stage extruder

1set
3 Water-ring cutting machine   1set
4 Dewatering machine   1set
5 Vibrating screen   1set
6 Air conveyor system   1set
7 Storage   1set

Pelletizing types:

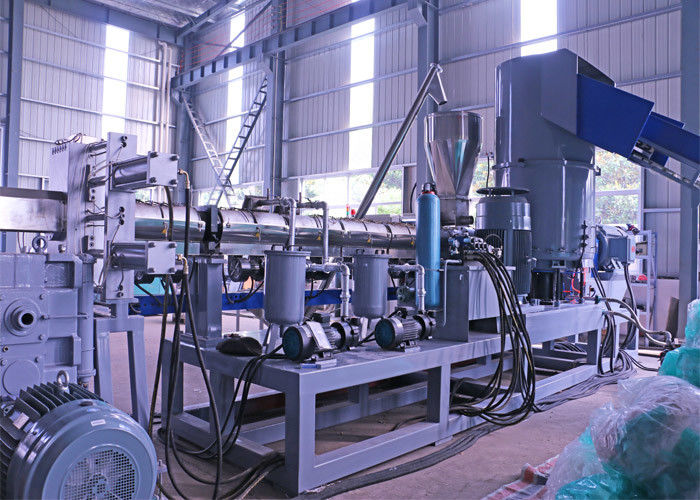

1. Single/double stage water-ring cutting pelletizing line

a. Fast hydraulic screen changing system

b. High efficiency water-ring cutting(Die-face hot cutting system)

c. Stainless steel water-ring, water cooling tank, dewatering machine, silo

d. This is suitable for film/bags after crushing, washing and drying.

PP PE Plastic Recycling Granulator Machine Waste Plastic Granules Making Machine 0

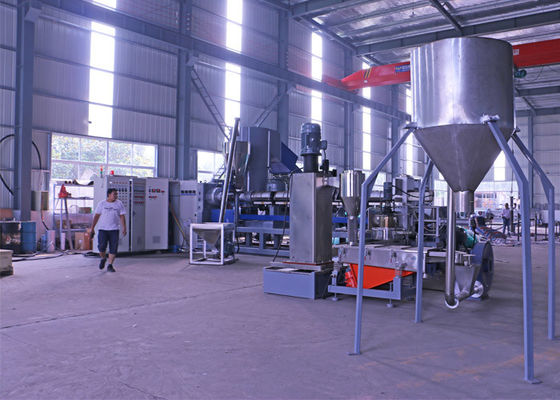

2. Compacting water-ring cutting pelletizing line

a. Forced feeding system of cutting and compacting

b. Fast hydraulic screen changing system

c. High efficiency water-ring cutting(Die-face hot cutting system)

d. Stainless steel water-ring, water cooling tank, dewatering machine, silo

PP PE Plastic Recycling Granulator Machine Waste Plastic Granules Making Machine 1



Main Pelletizing Granulation Line Models for Reference:

Type Model Capacity(KG/H) Main motor power(KW)





Single sage

70 70-120 37
100 200-250 90
120 300-400 110
150 500-600 132
180 700-850 185





Double stage

70+90 110-180 30+22
100+120 200-300 75+37
120+150 300-450 90+45
150+180 500-650 110+55
180+200 700-850 160+75



Quality first is the tenet of our company.In order to realize this concept, we set up our own mold and CNC workshop, factory quality control personnel strictly control the quality.Also can facilitate the customer to better understand the production process and the physical machine.
Welcome friends from all walks of life to visit our workshop, sincerely hope that we can become partners and long-term cooperation in the future!
