Plastic Wpc Window PVC Profile Extrusion Machine Conical Twin Screw

large.img.alt
small.img.alt

Large Image :  Plastic Wpc Window PVC Profile Extrusion Machine Conical Twin Screw

Product Details:
Place of Origin: CHINA
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: SJ120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 50000-95000$/set
Packaging Details: Wood pallet+stretch film
Delivery Time: 10-40 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Detailed Product Description
Processed Plastic: PMMA ASA PVC Screw Design: Conical Twin-screw
Capacity: 120 - 580 Kg/h Dimension(L*W*H): 55000*1500*3500mm
Die Type: T Type, Thickness Adjustable Sheet Wide: 1220-1560mm
Thickness: 2-12mm Core Components: PLC, Engine, Gearbox
Warranty: 1 Year Final Product: Glazed Roof Tile
High Light:

PLC Plastic Profile Extrusion Line

,

Wpc Window PVC Profile Extrusion Machine

,

Conical Twin Screw Pvc Profile Extruder

Plastic Wood And Plastic Pvc Wpc Window Profile Making Machine



ASA PMMA PVC Plastic Corrugated Roof Tile Extruding Machine Production Line

Plastic glazed tile extrusion line consists of extruder, T die and shaping downstream units, which can continuous extruding single layer PVC glazed tile, PVC/PMMA and PVC/ASA composite multi-layer glazed tile.
The extrusion line is mechantronics, with the advantages of: high production efficiency, reasonable structure, convenient operation and maintenance, long use life etc.

Compared with ordinary plastic tile, glazed tile has more beautiful appearance, better quality, strong durability and some special features, such as anti-fire, anti-corrion, anti-freeze, good weather resistance and color retention, etc.
The glazed tiles are widely used in the garden-style factory, tourist scenic spots, pavilions, hotels, family building etc.



Applications:

The Plastic Roofing Tile Roll Forming Machine is mainly used in the production of plastic glazed tile.The plastic glazed tiles are widely used in the garden-style factory,tourist scenic spots, pavilions,hotels,family building, etc.
Glazed tile product features:
1. Excellence weather fastness;
2. Waterproof outstanding performance;
3. Wind resistance,quake-proof;
4. Rich color, new personalized, stable and lasting;
5. Excellent fireproof performance;
6. Heat insulation,heat preservation;
7. Good sound insulation performance;
8. Excellent toughness and strength;
9. Simple construction--paving speed most quickly,construction cost minimum;

10. Economical.





PMMA ASA PVC Glazed Roofing Tile Extruding Making Machine including:

Sheet size Width( mm) 900 1130 1200 1300
  Thickness(mm) 0.8-3 0.8-3 0.8-3 0.8-3
T-type Die head Die head width 1050mm 1280 1350 1450
Shape waves Round waves or trapezoidal waves
Max extruder

SJ-65/132 or 80/156



SJ-80/156
Max output 250-300kg/h 350-400kg/h
Drive motor 37kw/55kw 55kw/75kw
Production cost (only for your reference):
General production formulation
Raw materials Percent
PVC resin 100kg
Calcium carbonate 100kg
CPE 5kg
PE Wax 1.2kg
Stearic acid 1.5kg
Stablizer 4.8kg
ACR 3.8kg
Paraffin 0.3kg
The cost of the mixture is around USD470/Tons-USD550/Tons.
The surface material of the tile is ASA; the cost is around USD3,750/Tons. The weight of ASA is around 100-150g/.
So the production cost of the final roof tile is around USD2.3-USD3.1 per square meter.

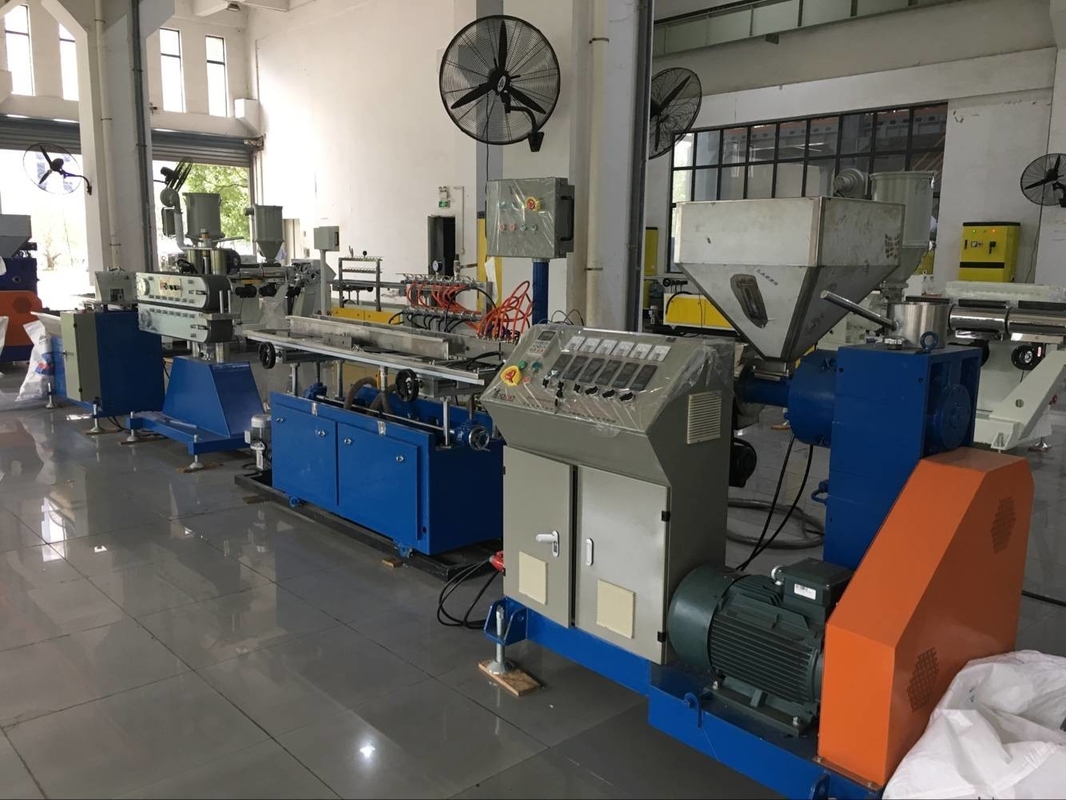

PVC ASA PMMA Roofing Sheet Extrusion Line pictures:

Plastic Wpc Window PVC Profile Extrusion Machine Conical Twin Screw 0Plastic Wpc Window PVC Profile Extrusion Machine Conical Twin Screw 1Plastic Wpc Window PVC Profile Extrusion Machine Conical Twin Screw 2Plastic Wpc Window PVC Profile Extrusion Machine Conical Twin Screw 3
