Lab 3D Printer Filament Extruder Machine

small.img.alt small.img.alt small.img.alt

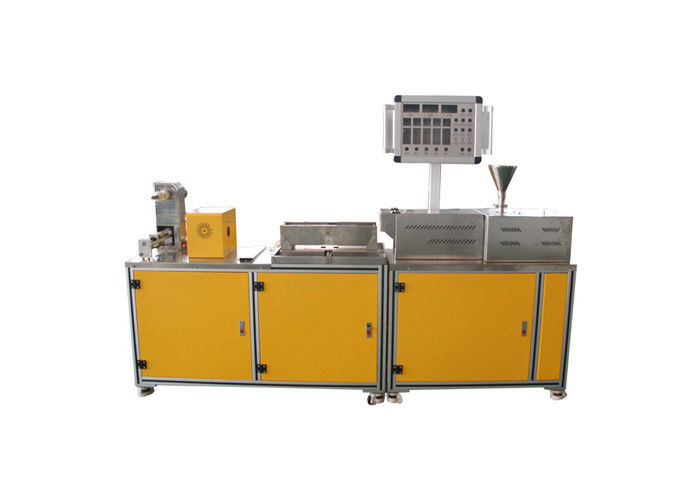

Large Image :  Lab 3D Printer Filament Extruder Machine

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: PL25
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Dollar 7500-9500$/set
Packaging Details: Wood package
Delivery Time: 10-20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100sets/year
Detailed Product Description
Capacity: 1-2KG/H PLC: Siemens
Winding Effect: Good Winding Whole Line Size: 12.5L*1.1W*2.3H(meter)
Filament Dia.: 1.75-3mm Plastic Processed: PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA
Main Motor Brand: Siemens Beide Machine Color: Customized
Screw Design: Single-screw Voltage: Customized
Automatic Grade: Automatic Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support,Video Technical Support Warranty: 1 Year
Usage: 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making Inverter: ABB
Screw Diameter: 25mm
High Light:

2KG H 3D Printer Filament Extruder Machine


2KG H small plastic extruder


1KG H 3D Printer Filament Extruder Machine

Machine Layout
Hopper; 2. Main machine; 3. Heat-water tank; 4. Cold-water tank; 5. Traction machine; 6. Infrared diameter gauging device; 7. Winding machine

Product Description

No. Name Quantity
1.0 Drying hopper 1
2.0 Extruding machine
2.1 ABS PLA single screw extruder 1
2.2 die mold 1
3.0 Water tank 1
4.0 Traction machine 1
5.0 Wire storage support 1
6.0 Infrared diameter gauging device 1
7.0 Winding machine 1
8.0 Single coil forming machine 1

Product Details

1.0 Name: drying hopper
Volume: 60L;
Output: 50kg/h;
Heating power: 10kw;
Characteristics: Protect the fan and electric heating tube. Famous brand electric elements and stable performance. Materials of theating tube: 304 stainless steel without pollution and long service life. The sealing rings adopt the insulation silicone rubber.
2.1 Name: single screw extruder(PSD25)
Screw diameter: Φ25mm;
L/D: 25;
Screw material: 38CrMoAlA;
Surface treatment of screw: Hard chromium plating treatment; thickness of chromium coating: 0.5~0.6mm; hardness: HRC65.
Compression ratio: C/R=3.0 BM screw;
The design of screw is applicable to special rollers of ABS PLA plastic granule.
Heater: The stainless steel heater with the internal surface receiving polished finish and the external surface of stainless steel.
Heating section and power: 3 heating sections; 1.8kw/section;
Cooling of the roller: Air cooling of high efficiency and low noise
Cooling section and power: 3 cooling sections, 120w/section;
Reduction box: Hard tooth surface reduction box with spiral speed reduction transmission.
ZLY173 hard tooth surface helical tooth cylindrical gear reduction box, selection of 20CrMn materials, malcomising;the tooth surface receives gear-grinding machining with the noise lower than 75Db and centrifugal lubrication of machine oil.
Bearing brand: Japan "NSK"
Driving motor: AC "TECO" frequency converter, Wannan motor
Control system:
Cabinet form: The configuration of insulating plate and ventilating system conforms to the standard of CE certification.
Setting of functional panel: Power indicator, display of main current/voltage, temperature display of the heating area, heating starting/stoping button, display of screw rotating speed, operation, operation panel, pulling speed control, coiling speed control, plastic wire diameter display alarm button, emergency button.

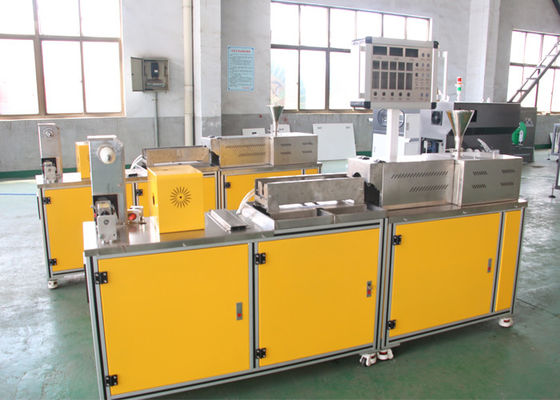

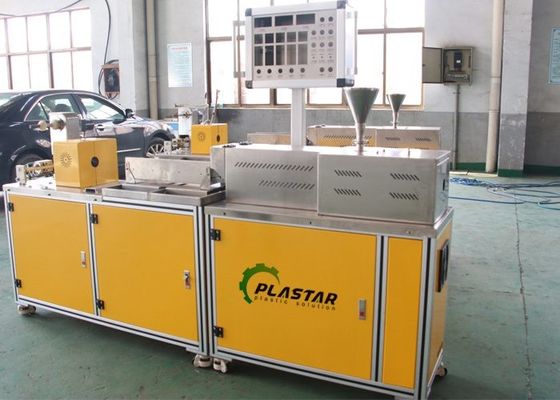

Our filament extrusion line pictures for reference:

Lab 3D Printer Filament Extruder Machine 0Lab 3D Printer Filament Extruder Machine 1
