Product Details:
Payment & Shipping Terms:
|
| Tolerance: | ±0.01mm-0.03mm | Capacity: | 1-25KG/H |
|---|---|---|---|
| PLC: | Siemens | Whole Line Size: | 12.5L*1.1W*2.3H(meter) |
| Filament Dia.: | 1.75-3mm | Plastic Processed: | PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA |
| Main Motor Brand: | Siemens Beide | Machine Color: | Customized |
| Screw Design: | Single-screw | Voltage: | Customized |
| Automatic Grade: | Automatic | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support,Video Technical Support | Warranty: | 1 Year |
| Usage: | 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making | Inverter: | ABB |
| Screw Diameter: | 45mm | Winding: | Neat Winding |
| High Light: | PLA ABS filament extruder for 3d printer,1.75mm filament extrusion line,3mm filament extruder for 3d printer |
||
Diameter 1.75mm or 3mm 3D Printer PLA ABS Filament Extrusion Machine
Build Your Own 3D Filament production factory With Us
Our 3D Printer Filament Extrusion Machine is equipped with diameter automatic feedback system.
1. Application:
The Filament Extruder Machine is used to make 3d printer filament,The filament is widely used in many different industries,such as mould making,Shoes, industry designing, as well as medical.
2. Speficication of our extrusion line:
1. Higher capacity compared with other suppliers same model extrusion line.
2. Low tolerance:+/-0.02mm, even+/-0.01mm.
3. It can produce different diameter filaments from 1.75mm-3.0mm.
4. Easy operation: PLC full-automatical control system.
5. Produce different raw material: ABS PLA PA HIPS PETG PEEK PCL etc.
6. We can provide installation services overseas
3D Printer Filament Extruder Making Machine is mainly used to produce high quality ABS/PLA/PETG/PEEK/PEI/Carbon fiber filament for all brands of 3D printers. This 3D Printer Filament Extruder/ Extruding Machine has high output and and performance. It can produce filament with diameter of 1.75 and 3mm. We use laser gauge in the 3D Printer Plastic Filament extruding line to measure the diameter and control the tolerance within ±0.02mm.
--Our 3D printer filament line is equipped with our 5th generation new type double disc winding machine, this new generation rotatable double disc winding machine is designed and produced by our company, it is our 5th generation winding machine, compared with traditional single disc or old type double disc winding machine, the new double disc Auto winding machine can shorten the spool changing time to not more than 25 sec.
This new design winding machine can really save time and improve efficiency, when spool 1 is full, it can automatically rotates into spool 2 position, at same time, empty spool 2 will be in the postion of spool 1, the workers cut the filament, and feed the filament into spool 2, the winding machine keeps working when the worker takes the full spool out.
---Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.
We have different machine models with different capacity for your choice:
| Model | Power | Diameter | Capacity | Tolerance | Material |
| PL-25 | 2.2 KW | 1.75mm-3mm |
3-5Kg/h |
+0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
This Filament Extruder Machine is composed by following parts:
| No. | Item | Qty |
| 1 | Hopper Dryer | 1 Set |
| 2 | Single Screw Plastic Extruder | 1 Set |
| 3 | Die | 2 Sets |
| 4 | Hot & Cooling water cooling tank | 2 Sets |
| 5 | Horizontal storage rank | 1 Set |
| 6 | Backstop machine | 1 set |
| 7 | Haul-off machine | 1 set |
| 8 | Winding machine | 1 set |

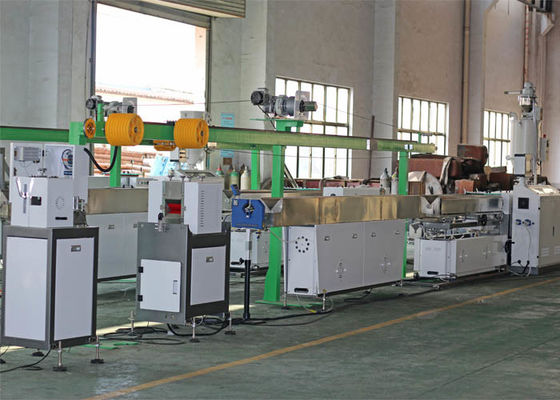

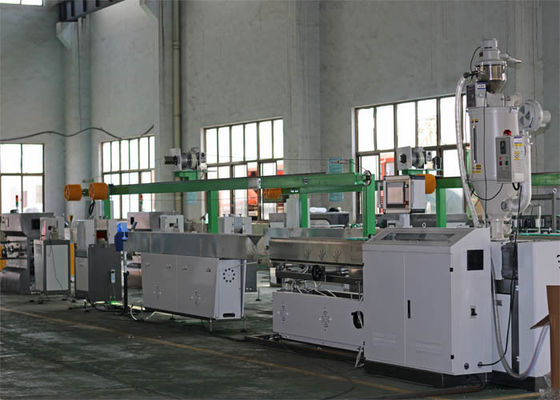

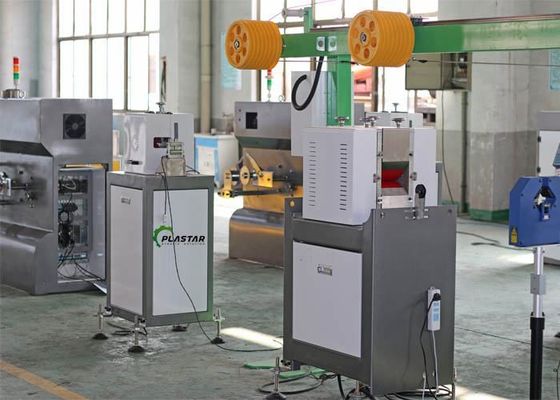

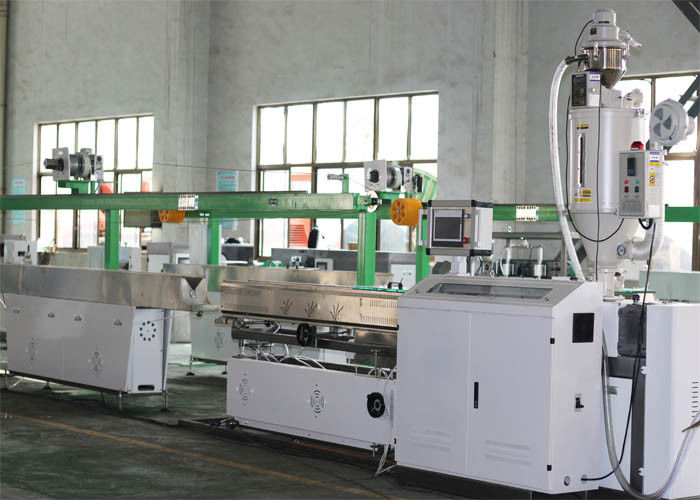

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:
