Product Details:
Payment & Shipping Terms:
|
| Raw Material: | PVC Powder+Caco3+additives | Final Product: | PVC Corner Bead, Angle Bead, Guard Bead |
|---|---|---|---|
| Output: | 8 In 1, 6 In 1, 4 In 1 | Main Extruder Model: | SJZ51/105, SJZ65/132 Conical Twin Screw Extruder |
| Extrusion Speed: | 18-24m/min | Main Motor Brand: | Siemens Beide |
| Color: | Customized | Application: | Protecting&decorating The Edges Of Tile |
| Punching Hole Shape: | Square/ Round/ Triangle Or Customized | Screw Design: | Double-screw,conical Twin Screw |
| Condition: | New | Automatic Grade: | Automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | Can Be Customized |
| Plastic Processed: | PVC | Dimension(l*w*h): | 25M*2.5M*3.5M |
| Warranty: | 12 Months | Inverter: | ABB |
| Processing Type: | Extruding Machine,Extrusion Machine | Temperature Controller: | Omron |
| Highlight: | 18m min PVC Profile Extrusion Machine,22kw pvc profile production line,22kw PVC Profile Extrusion Machine |
||
6 in 1 UPVC PVC Plastic Angle Bead Corner Profile Extrusion Machine
PVC Corner Bead has a wide range of usage, as corner guards, wall protection, stair nosing, hiding screw holes and many more applications around the home and commercial premises.
PVC corner bead production line/extrusion line
Product Description
1. SJSZ Conical Twin Screw Extruder, main extruder to produce good and plastization profiles.

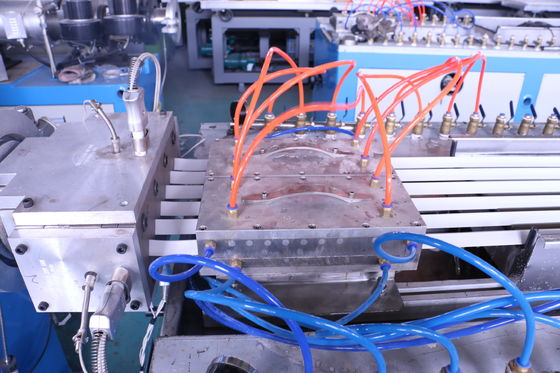

2.angle line mould
3.. Vacuum Calibrtaing Table
4. Haul off: to pull our profile along with extruder, which part is also important to adjust speed.
5. Cutting Machine and stacker, which is automatically to control.
Feature:
1. high quality , long uselife , high speed making
2. lower consumption , easy and safe operation
3. ABB,RKC,SIEMENS,LG,FUJI ,OMRON brand control parts
4. CE
5. 1 year warranty time
Technical Parametes:
| Model | Mold | Max extrusion volume | Motor power | Heating power |
| SJSZ51 | one mold with 4 cavities | 120kg/h | 22kw | 12kw |
| SJSZ65 | one mold with 6 cavities | 280 kg/h | 37kw | 15kw |
The PVC Corner Bead Extrsuion Line is composed by following parts:
| No. | Item |
| 1 | Spring feeder |
| 2 | SJZ65/132 Conical Twin Screw Extruder |
| 3 | Extrsuion mold |
| 4 | Vacuum Calibration Table |
| 5 | Haul off machine |

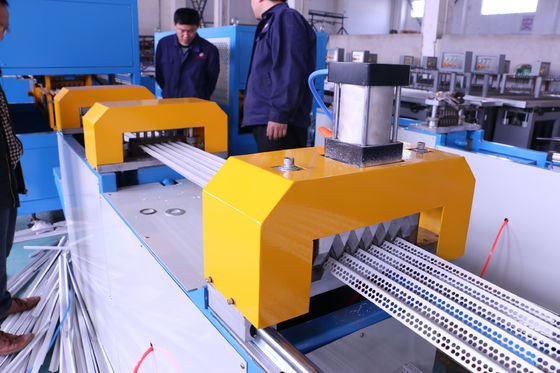

| 6 | Punching & cutter machine |
| 7 | Stacker |
| 8 | Crusher&pulverizer for recycling the waste |

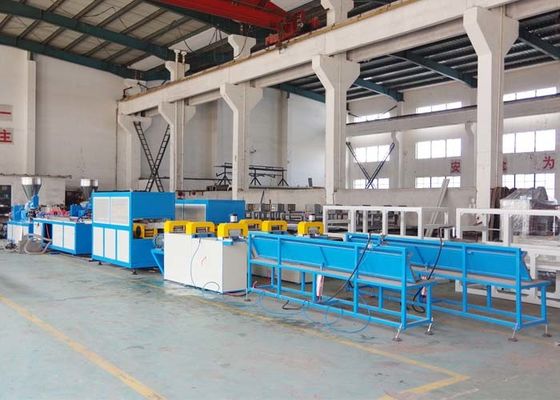

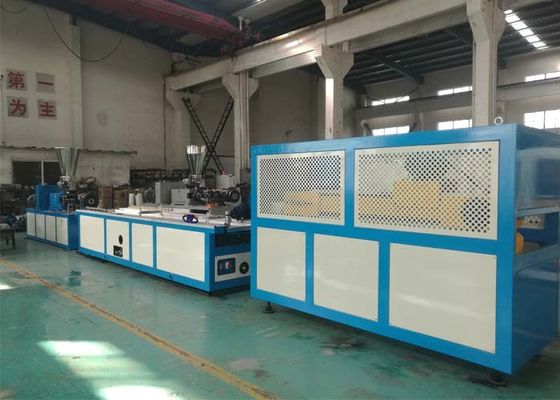

Machine pictures for reference:
