Mini Lab Plastic 1KG/H 3D Printer Filament Extruder Machine For Testing

The actual production capacity is even bigger than the supplier promised me, i am very satisfied with this machine, very good. I surely will cooperate with you again in the future.

—— Mr. Joshua Douglas

Good service, prompt delivery

—— Mr. Bond Toth

I am so glad to have this pleasant business cooperation with Plastar,they have done quite amazing job. We communicate so well and they give me very professional help of this new technology,we will start the new business of plastic recycling and we are sure it will be a good result.

—— Mr. Mark harrison

I am very happy to have such good cooperator and shipping is very fast and solve my issue very fast,give big thumb,happy happy~ Very professional and easy to communicate.

—— Mrs. Nancy

I'm Online Chat Now

Mini Lab Plastic 1KG/H 3D Printer Filament Extruder Machine For Testing

Mini Lab Plastic 1KG/H 3D Printer Filament Extruder Machine For Testing
Mini Lab Plastic 1KG/H 3D Printer Filament Extruder Machine For Testing Mini Lab Plastic 1KG/H 3D Printer Filament Extruder Machine For Testing Mini Lab Plastic 1KG/H 3D Printer Filament Extruder Machine For Testing Mini Lab Plastic 1KG/H 3D Printer Filament Extruder Machine For Testing

Large Image :  Mini Lab Plastic 1KG/H 3D Printer Filament Extruder Machine For Testing

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: PL25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wood package
Delivery Time: 10-20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100sets/year
Detailed Product Description
Whole Line Size: 1.8m*1m*1.7m Plastic Processed: PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA
Capacity: 0.5-1KG/H Winding Effect: Neat Winding
Filament Dia.: 1.75-3mm Automatic Grade: Automatic
Main Motor Brand: Siemens Beide Machine Color: Customized
Screw Design: Single Screw Usage: 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making
Inverter: ABB Screw Diameter: 25mm
High Light:

1KG H 3D Printer Filament Extruder Machine

,

PLASTAR 1KG H 3d printer bowden extruder

,

PLASTAR 25mm 3D Printer Filament Extruder Machine

Mini Lab Plastic 3D Printing Filament Extruder Machine For Testing

Product Description
Scope of application
The 3D printing filament testing machine has the characteristics of low energy consumption, small production capacity and convenient movement. It is an ideal testing equipment for various universities to study polymer materials. The current successful cases include ABS, PLA, HIPS, PEEK, PEI, PETG, PVA, PPSU , WOOD, PCL, NYLON, carbon fiber, etc.



3D Printing Filament Extrusion Machine
1. According to the properties of different raw materials, we have designed different screw structures and developed different cooling systems.
2. The machine adopts highly sensitive temperature control meter and temperature sensor to ensure the stability of the machine.
3. Using high-precision molds to ensure the smoothness and roundness of 3D printing filaments.

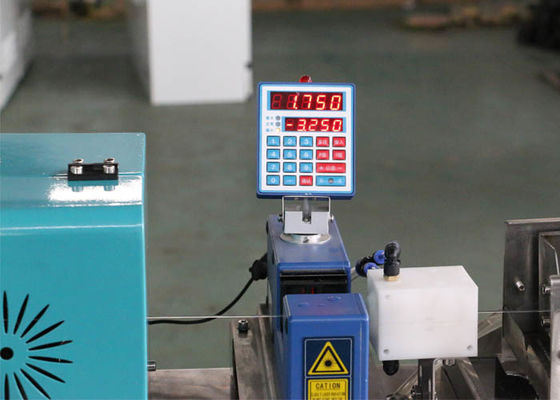

4. Using high-performance multidimensional online laser detector, real-time detection data can be fed back to the console simultaneously.
5. The traction machine can be steplessly frequency-converted to adjust the speed, and the accuracy of the 3D printing filament is accurately controlled within ±0.03mm.
6. The filament storage system can store 100 meters of 3D printing filament, and the wire reel can be loaded and unloaded without stopping the machine.



Technical Parameter:

Item Equipment line QTY/SET
1 Hopper dryer 1
2-1 ABS PLA Single screw extruder 1
2-2 Die head 1

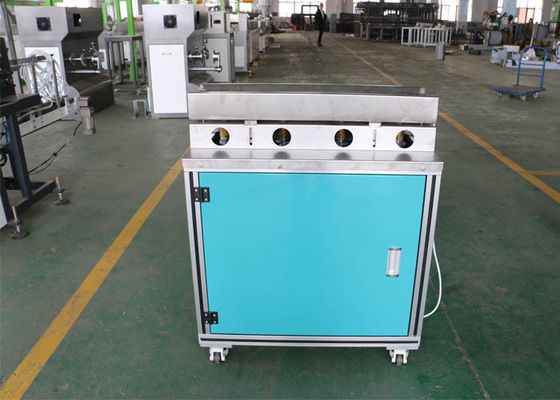

3.1 Air cooling table 1
3.2 Water tank
4 tractor machine 1
5 Storage thread stand 1
6 Laser measuring diameter instrument 1

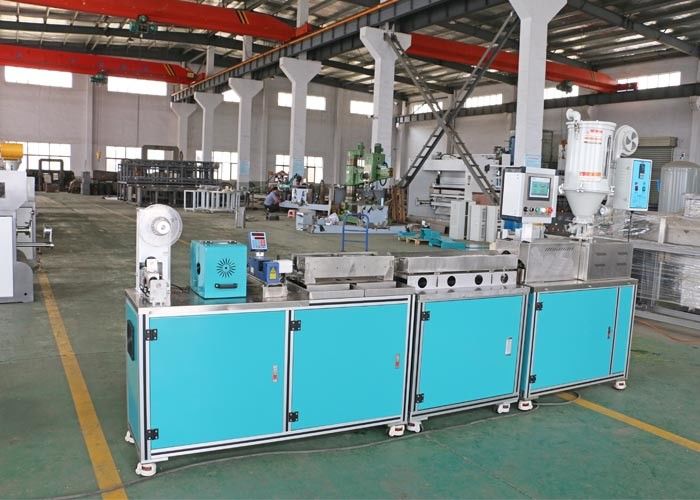

Lab 3D Printing Filament Extrusion Line:

Mini Lab Plastic 1KG/H 3D Printer Filament Extruder Machine For Testing 0Mini Lab Plastic 1KG/H 3D Printer Filament Extruder Machine For Testing 1Mini Lab Plastic 1KG/H 3D Printer Filament Extruder Machine For Testing 2Mini Lab Plastic 1KG/H 3D Printer Filament Extruder Machine For Testing 3

Our company has been engaged in the research and production of 3D printing consumable equipment for 7 years, and has rich experience in 3D printing consumable equipment. Because of the profession, many domestic state-owned enterprises, universities and colleges have chosen to cooperate with us. 3D wire equipment is stocked in our workshop all the year round. Customers are welcome to visit and discuss in detail at any time!
