20MM Fully Automatic PVC Pipe Making Machine Double Screw

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  20MM Fully Automatic PVC Pipe Making Machine Double Screw

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE
Model Number: PL-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 28000-42000$/set
Packaging Details: Standard export package
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/year
Detailed Product Description
Raw Material: PVC+Caco3+Additives PVC Pipe: 20-110mm
Application: Pipe Screw Design: Double-screw
Voltage: Customized Automatic Grade: Automatic
Dimension(l*w*h): 20mx2.5mx2.2m Plastic Processed: PVC
After-sales Service Provided: Engineers Available To Service Machinery Overseas Inverter: ABB
Color: Customised Certification: CE/ISO
High Light:

20MM fully automatic pvc pipe making machine

,

PLASTAR 20MM twin screw pvc pipe machine

,

PLASTAR fully automatic pvc pipe making machine

Water Supply PVC Pipe Extrusion Equipment Pipe Production Machine
PVC Pipe Extrusion Production Line.

Our company has full range of PVC pipe extrusion line, including four cavity pipe extrusion line, double cavity pipe extrusion line and large diameter pipe extrusion line. Our company will also provide basic formula for PVC pipe production, customer can adjust easily based on the formula. We manufacture machines for production of different PVC pipes, including U-PVC, C-PVC, M-PVC, PVC-O pipes, etc.

Our PVC pipe extrusion line can produce from size of minimum 16mm to 1000mm with single layer or multi-layer.
Twin Screw Extruder.
1.1 Siemens PLC
1.2 Quality Screw and Barrel
1.3 Air Cooled Ceramic Heater
1.4 High Quality Gearbox and Distribution Box
1.5 Better Cooling of Gearbox
1.6 Advanced Vacuum System
1.7 Easy Cable Connection

 20MM Fully Automatic PVC Pipe Making Machine Double Screw 0

Both conical twin screw extruder and parallel twin screw extruder can be applied to produce PVC pipe. With latest technology, to lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing
effect and high capacity.
Extrusion Die Head.
2.1 Moving Device of Die Head
2.2 Die Head Rotary Device
2.3 CNC Processing
2.4 High Quality Material

20MM Fully Automatic PVC Pipe Making Machine Double Screw 1
Extrusion die head apply bracket structure, each material flow channel is placed evenly. Each channel is after heat treatment,
mirror polishing and chroming to ensure material flow smoothly.
Die head is modular design, easy for changing pipe sizes, assembling, dismantle and maintenance. Can produce single layer or
multi-layer pipe.
3. Vacuum Tank.
3.1 Strong Cooling for Calibrator
3.2 Better Support for Pipe
3.3 Silencer
3.4 Pressure Relief Valve

3.5 Double Loop Pipeline

3.6 Water, Gas Separator

3.7 Full Automatic Water Control

3.8 Centralized Drainage Device
20MM Fully Automatic PVC Pipe Making Machine Double Screw 2
Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is
in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe
shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.
4. Cooling Tank.
4.1 Pipe Clamping Device
4.2 Water Tank Filter
4.3 Quality Spray Nozzle
4.4 Pipe Support Adjusting Device
4.5 Pipe Support Device

5.Haul off unit.
5.1 Pipe Clamping Device
5.2 Water Tank Filter
5.3 Quality Spray Nozzle
5.4 Pipe Support Adjusting Device
5.5 Pipe Support Device
20MM Fully Automatic PVC Pipe Making Machine Double Screw 3
Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe during traction.
6.Cutter.
6.1 Aluminum Clamping Device
6.2 Advanced Hydraulic System
6.3 Dust Collection System
20MM Fully Automatic PVC Pipe Making Machine Double Screw 4
Cutter controlled by Siemens PLC with chamfering function, working together with haul off unit to have precise cutting. Customer
can set the length of pipe they want to cut.

7. Full Automatic Belling Machine
7.1 Pipe Cleaning System
7.2 Infrared Heating System
7.3 Central Height Adjustment
20MM Fully Automatic PVC Pipe Making Machine Double Screw 5
To make socket at pipe end which is easy for pipe connection. There are three types of belling type: U type, R type and Square
type. We provide belling machine which can finish belling of pipe on line fully automatic. From minimum size 16mm to maximum size
1000mm, can with multi heating oven and belling station.





Technical Parameter



ItemsModel SJSZ45 SJSZ51 SJSZ55 SJSZ65 SJSZ80 SJSZ92
Diameter(mm) 45/90 51/105 55/110 65/132 80/156 92/188
Number of screw 2 2 2 2 2 2
Screw direction Different to the outside
Screw Speed(r/min) 1-45 1- 45 40 1- 35 1- 37 1- 33
Struction Cone-shaped mesh
Main motor power(kw) 15 18.5 22 37 55 90
Output(max)kg/h 120 80~150 150 ~180 250 ~300 3 20~400 600~ 800
Number of barrel heating 4 4 4 4 4 4
Centre Screw quantitative
Centre Height (mm) 1000 1000 1000 1000 1000 1 2 00




Process Flow: Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Haul-off → Saw Cutter → Belling machine→ Final Product Inspecting &Packing



Machine pictures for reference:

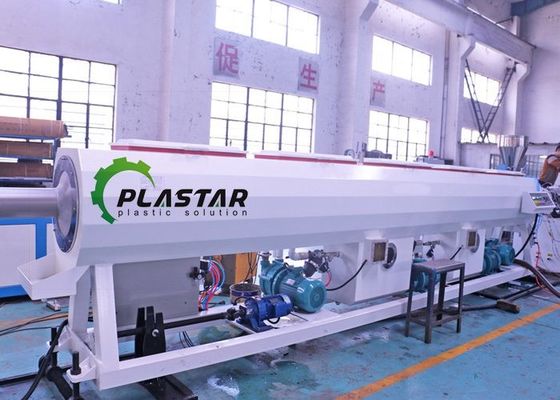

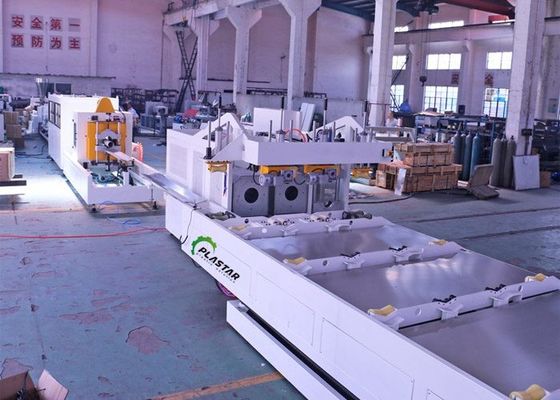

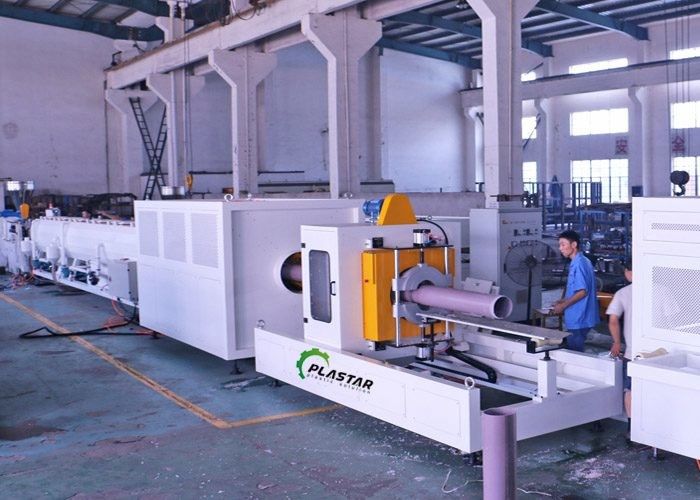

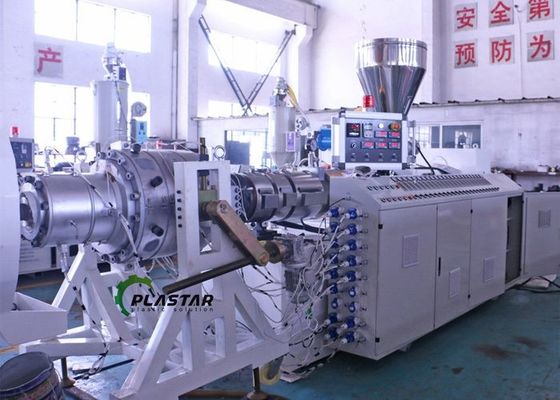

20MM Fully Automatic PVC Pipe Making Machine Double Screw 620MM Fully Automatic PVC Pipe Making Machine Double Screw 720MM Fully Automatic PVC Pipe Making Machine Double Screw 420MM Fully Automatic PVC Pipe Making Machine Double Screw 0
