PVC Profile Extrusion Line For Window And Door Profile

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  PVC Profile Extrusion Line For Window And Door Profile

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE
Model Number: PL240
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Dollar 25000-38000$/set
Packaging Details: standard export package
Delivery Time: 20-40 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Detailed Product Description
Raw Material: PVC+Caco3+additives Main Extruder: Conical Twin Screw Extruder
Extruder Model: SJZ51/105, SJZ65/132 Main Motor: Siemens Beide Brand
Inverter: ABB Brand Application: PVC Profile Extrusion Machine
Plastic Processed: WPC,PVC/UPVC Warranty: 1 Year
Temperature Controller: Omron Screw Design: Double-screw
Automatic Grade: Automatic Name: Profile Extrusion Making Machine
Processing Type: Extrusion Machine Color: Can Be Customized
High Light:

Double screw PVC Profile Extrusion Line

,

PLASTAR ABB pvc profile making machine

,

PLASTAR ABB PVC Profile Extrusion Line

PLASTAR MACHINERY PVC Profile Extrusion Line for Window and Door Profile

The PVC profile production line could produce PVC window profile, door frame, board, ceiling, etc. This machine also could produce wood plastic profile ( WPC).

To produce PVC profile, you shall have high speed mixer to mix PVC powder, CACO3 and other additives according to your formula. Then feed the mixture to the conical twin screw extruder for the production. The mixed material will be extruded through different molds to produce different shape profiles. Then it will be calibrated to keep the shape by vacuum calibration tank, then haul off and cutting. You could cut different length as you want, 4 meter, 6 meter, etc.

To guarantee the quality and good performance of our machines, we use Siemens Beide brand main motor for extruder, and ABB inverter for speed control. The lower voltage electrics components are from Siemens or Schneider, temperature control device is from Ormon or RKC.
Siemens PLC and Siemens touch screen computer is also available to meet your specific requirements.



Main Advantages of this extrusion line:

1. Extrusion speed is controlled by ABB inverter, saving power and make it easy to adjust speed.

2. Extruder temperature controlled by Omron intelligent controller, temperature fluctuation is self adjusting.

3. Low power consumption: power consumption of total production line can low to only 25kw/hour.



The working process of PVC ceiling extrusion machine:

Raw material → screw feeder mixing → feeder → double screw extruder → vacuum calibration table → haul-off unit → cutting machine stacker



Equipment List of PVC profile production line:

Item
Machine name
Unit
1
Auto-loader
1 set
2
Conical Twin Screw Extruder
1 set
3
Vacuum Calibrating Platform
1 set
4
Haul-off Machine
1 set
5
No-dust Cutter
1 set
6
Stacker
1 set
7
Mold(according to the drawing)
1 set
8
Electric Control Cabinet
Included
9
Spare Parts
Free/set



Machine pictures for reference:

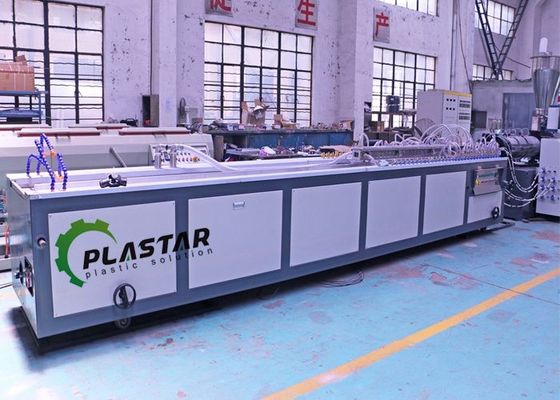

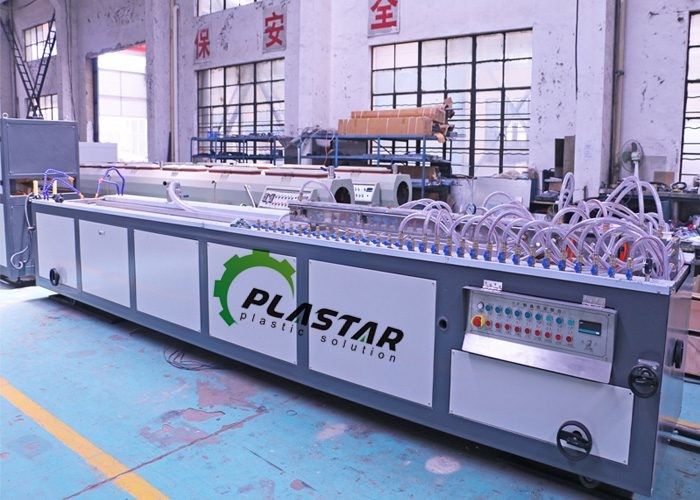

PVC Profile Extrusion Line For Window And Door Profile 0

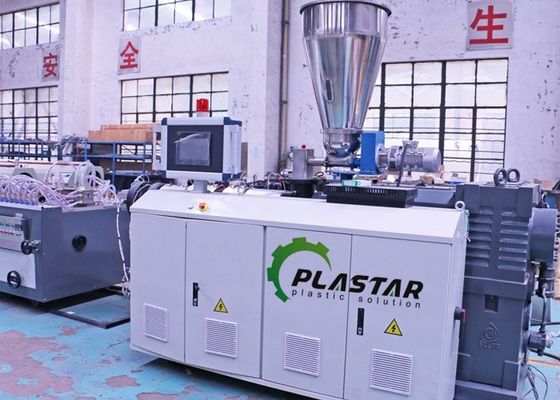

PVC Profile Extrusion Line For Window And Door Profile 1

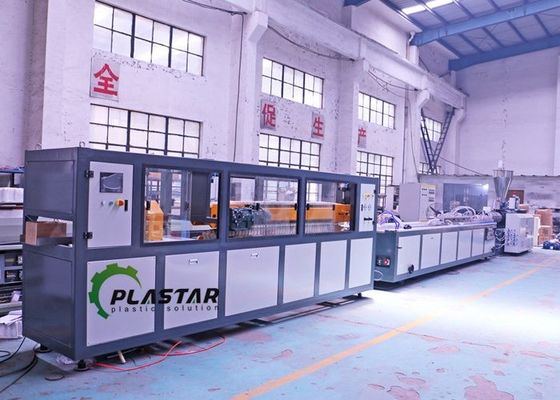

PVC Profile Extrusion Line For Window And Door Profile 2
