| Tolerance: | ±0.02mm-0.03mm | Capacity: | 20-25KG/H |
|---|---|---|---|
| PLC: | Siemens | Whole Line Size: | 12.5L*1.1W*2.3H(meter) |
| Filament Dia.: | 1.75-3mm | Plastic Processed: | PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA |
| Main Motor Brand: | Siemens Beide | Machine Color: | Customized |
| Screw Design: | Single-screw | Voltage: | Customized |
| Automatic Grade: | Automatic | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support,Video Technical Support | Warranty: | 1 Year |
| Usage: | 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making | Inverter: | ABB |
| Screw Diameter: | 45mm | Dia. Tolerance: | ±0.01-0.03mm |
| Winding: | Neat Winding |
This 3D printing filament extruder machine is designed for extrusion of 3D printing materials ABS, PLA, PET-G, PEEK, PE, and for production of filaments of different diameters 1.75-3mm.
This filament extruder machine is equipped with a compensator with a capacity of up to 350 meters/min., that allows the spool of 1 - 2kg to be replaced without interruption of operation.
The extrusion line is controlled by Siemens PLC panel with automatic operation and is equipped with a laser diameter measurement of filament, which automatically regulates the filament diameter within the required tolerances.
As the 3D printing becomes more and more popular in this world, the demand for the printing filament making extruder machine is also growing very fast, generated by our years' experience on extrusion machinery, our company developed the 3D printer filament extruder for 3D printer filament manufacturing. nowadays, our 3D printer filament extruder machine has been exported to many countries like France,Czech, UK,USA,Russia and so on. Our filament extruder machines are very welcomed because its multi-advantages:
Advantages:
1. Higher capacity compared with other suppliers using the same model.
2. Perfect tolerance: within +/-0.03mm, even+/-0.01mm.
3. It can produce the different diameter of filament from 1.5mm-3.0mm.
4. Easy operation: PLC full-automatically control system.
5. Produce different raw material: ABS PLA PA HIPS PET.
6. Low maintain. We did not receive any complaint once the machine is running.
7. We can provide installation services overseas
3D printing is a revolutionary technology since 2018. 3D printing has become more and more popular for all kinds of industries. With the rising of 3D printing technology, our company developed the filament machine for 3D printing, and also sold them to a lot of developed countries, such as France, UK, Russian, USA and so on. Of course, our machines have many outstanding advantages.
Feature:
Information of the PLA, PA Nylon, PC ,and HIPS and ABS filaments,
ABS filament process temperature is 230-260° C,melting point is 230° C PLA 3D printer filament is 210-235°C, melting point is 200° C. PVA temperature for printer is 180°C-200°C.Melting point is 200°C.
PA Nylon temperature for printer is 220°C-250°C.Melting point is 260°C PC temperature for printer is 230°C-250°CMelting point is 260°C. HIPS filaments temperature for printer is 160°C-220°C,Melting point is 230°C.
---The application of 3D printer filament
3D printing technology has been applied in jewelry, footwear, industrial design, construction, engineering and construction,
automobile, aerospace, dental and medical industries, education, geographic information system, civil engineering, guns and other
fields.
Based on the analysis of the characteristics and performance of different structures of 3D printers and consumables, we have a clearer understanding of the working principle of 3D printers. We believe that plastic materials will remain the mainstream
material for 3D printing for a long time.
3D Printer filament production extruder machine is a device which can "print" the 3D object, function as the laser forming technology, adopts the hierarchical processing,principle of superposition forming, through increased material step by step stack to generate 3D entity. 3D printing technology is not very complicated itself, but the available consuming materials was a difficulty. Ordinary printer consumables is ink and paper, but the 3D printer consumables are mainly plastic and other powder, and must through special processing, also high requirement of the curing reaction speed 3D printer is a device which can "print" the 3D object, function as the laser forming technology, adopts the hierarchical processing, principle of superposition forming, through increased material step by step stack to generate 3D entity.
3D printing technology is not very complicated itself, but the available consuming materials was a difficulty. Ordinary printer consumables is ink and paper, but the 3D printer consumables are mainly plastic and other powder, and must through special processing, also high requirement of the curing reaction speed.
We have different machine models with different capacity for your choice:
| Model | Power | Diameter | Capacity | Tolerance | Material |
| PL-25 | 2.2 KW | 1.75mm-3mm |
3-5Kg/h |
+0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
This Filament Extruder Machine is Composed by following parts:
| No. | Item | Qty |
| 1 | Hopper Dryer | 1 Set |
| 2 | Single Screw Plastic Extruder | 1 Set |
| 3 | Die | 2 Sets |
| 4 | Hot & Cooling water cooling tank | 2 Sets |
| 5 | Horizontal storage rank | 1 Set |
| 6 | Backstop machine | 1 set |
| 7 | Haul-off machine | 1 set |
| 8 | Winding machine | 1 set |

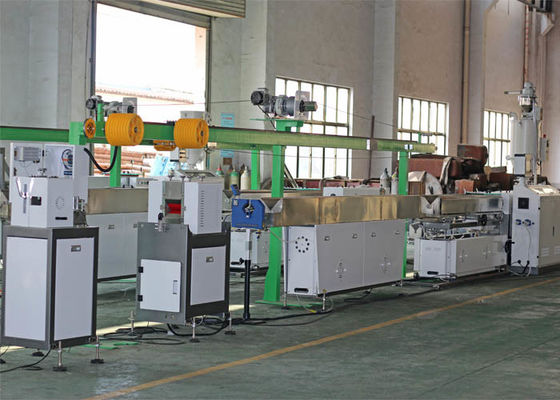

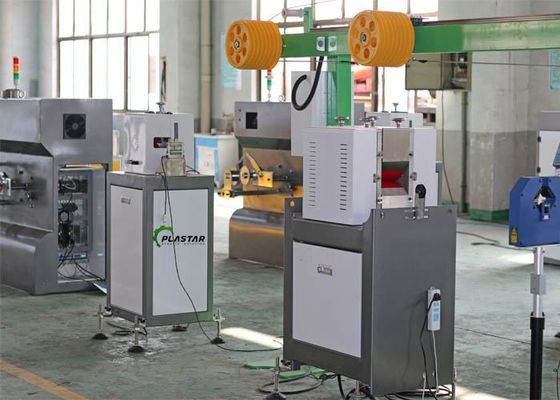

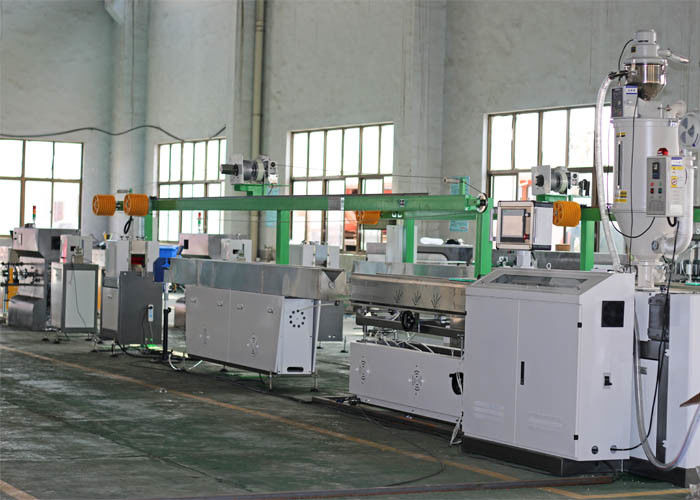

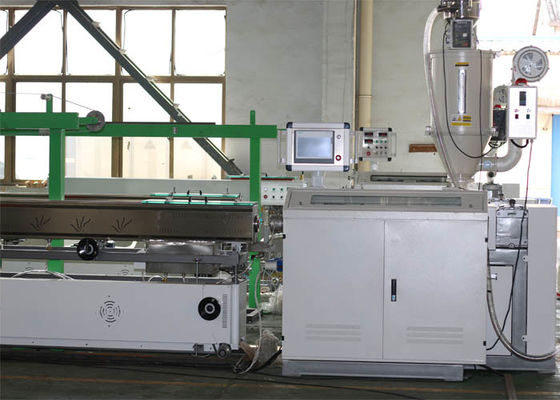

High Precision PLA ABS PETG 3D Printing Filament Production Extruder Machine pictures for reference:
