6 Cavity PVC Profile Extrusion Machine Plastic Corner Bead Making Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  6 Cavity PVC Profile Extrusion Machine Plastic Corner Bead Making Machine

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: PL65
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: dollar 28000-39000$/set
Packaging Details: Wood package+wood pallet+stretch film package
Delivery Time: 30-50working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/year
Detailed Product Description
Raw Material: PVC Powder+Caco3+additives Final Product: PVC Corner Bead, Angle Bead, Guard Bead
Output: 8 In 1, 6 In 1, 4 In 1 Main Extruder Model: SJZ51/105, SJZ65/132 Conical Twin Screw Extruder
Extrusion Speed: 18-24m/min Main Motor Brand: Siemens Beide
Color: Customized Application: Protecting&decorating The Edges Of Tile
Punching Hole Shape: Square/ Round/ Triangle Or Customized Screw Design: Double-screw,conical Twin Screw
Condition: New Automatic Grade: Automatic
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: Can Be Customized
Plastic Processed: PVC Dimension(l*w*h): 25M*2.5M*3.5M
Warranty: 12 Months Inverter: ABB
Processing Type: Extruding Machine,Extrusion Machine Temperature Controller: Omron
High Light:

24m min PVC Profile Extrusion Machine

,

PLASTAR 24m min corner bead machine

,

PLASTAR PVC Profile Extrusion Machine

6 Cavity PVC Angle Beads Extruder Machine Plastic Corner Bead Making Machine

PVC Corner Bead has a wide range of usage, as corner guards, wall protection, stair nosing, hiding screw holes and many more applications around the home and commercial premises.

This pvc corner bead extrusion line is designed for extruding PVC corner bead, angle trim, which is a kind of PVC profile particularly designed for protecting corners of wall, door and window. As a replacement for the traditional methods to repair wall corner, it has been extensively used for construction, decoration, and wall protection. Upon clients' request, we can equip punching, printing, coding or other additional equipment for the PVC profile extrusion line.



Applications:
PVC beads, PVC L beads, furniture edge banding, etc


PVC corner beads extrusion line is one kind of pvc profile making machine with pvc powder and calcuim power materials. It is used to produce PVC corner beads. This machine Can produce ONE TO SIX corners at the same time, after extrusion the PVC corner, there is a online punching Machine, it is used to punch holes on the PVC corner. The punching machine is our new design, it is Automatic line.

What is the corner bead?
Corner bead is a materials that used on the corner of the walls in drywall construction to make the corners crisp and professional looking. In addition to making area look neater, it also reinforces the corners,making them less prone to denting and other type of damage.

Our pvc corner beads plastic extruding machine :
1.High capacity
2.Long life
3.High speed extrusion
4.Low energy consumption
The characteristics:
1) Installed with imported termo controllers, imported inverters or converters.
2) Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3) For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4) Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.


Technical Parametes:

Model Mold Max extrusion volume Motor power Heating power
SJSZ51 one mold with 4 cavities 120kg/h 22kw 12kw
SJSZ65 one mold with 6 cavities 280 kg/h 37kw 15kw



The PVC Corner Bead Extrsuion Line is composed by following parts:

No. Item
1 Spring feeder
2 SJZ65/132 Conical Twin Screw Extruder
3 Extrsuion mold
4 Vacuum Calibration Table
5 Haul off machine
6 Punching & cutter machine
7 Stacker
8 Crusher&pulverizer for recycling the waste

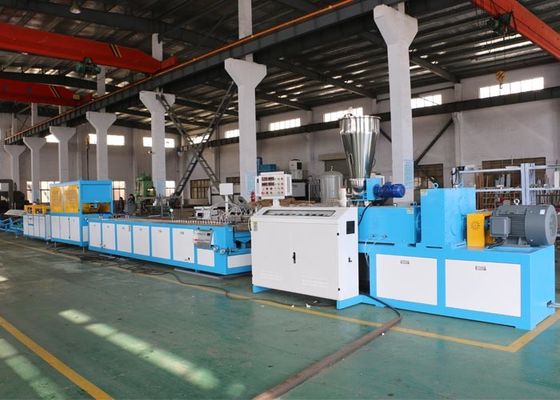

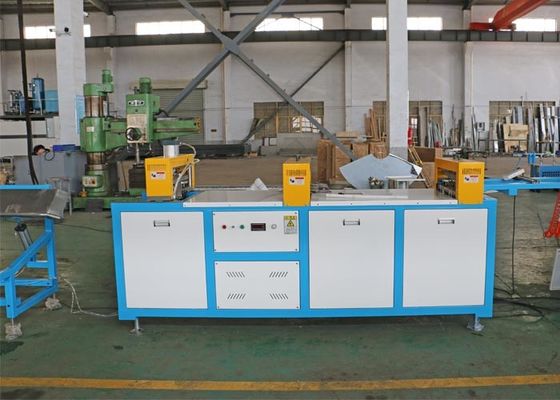

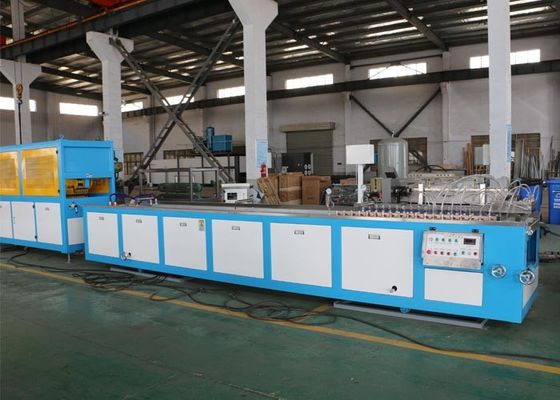

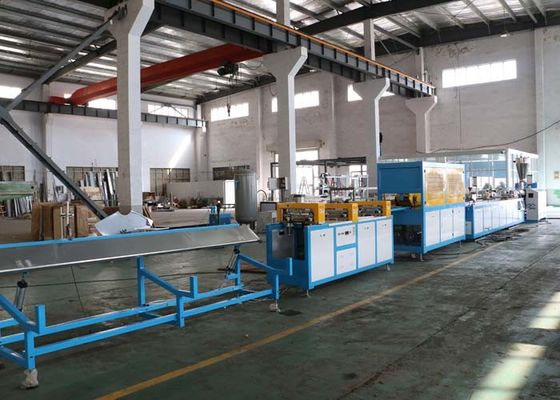

Machine pictures for reference:

6 Cavity PVC Profile Extrusion Machine Plastic Corner Bead Making Machine 0

6 Cavity PVC Profile Extrusion Machine Plastic Corner Bead Making Machine 1

6 Cavity PVC Profile Extrusion Machine Plastic Corner Bead Making Machine 26 Cavity PVC Profile Extrusion Machine Plastic Corner Bead Making Machine 3



About our company:

Zhangjiagang Plastar Machinery Co., Ltd. is a professional manufacturer for kinds of plastic machines, such as plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.
The target of Plastar Machinery Co.,Ltd is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Plastar Machinery Co.,Ltd to new and old friends. We are looking forward to establish good cooperation relationship with you on the basis of mutual benefits.
