Product Details:
Payment & Shipping Terms:
|
| Tolerance: | ±0.01mm-0.03mm | Capacity: | 1-25KG/H |
|---|---|---|---|
| PLC: | Siemens | Whole Line Size: | 12.5L*1.1W*2.3H(meter) |
| Filament Dia.: | 1.75-3mm | Plastic Processed: | PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA |
| Main Motor Brand: | Siemens Beide | Machine Color: | Customized |
| Screw Design: | Single-screw | Voltage: | Customized |
| Automatic Grade: | Automatic | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support,Video Technical Support | Warranty: | 1 Year |
| Usage: | 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making | Inverter: | ABB |
| Screw Diameter: | 45mm | Winding: | Neat Winding |
| High Light: | 3mm 3d printer filament production line,3KG H pla filament extruder,3KG H 3d printer filament production line |
||
1.75mm 3mm PLA/ABS 3D Filament Extruder Machine For 3D Printer

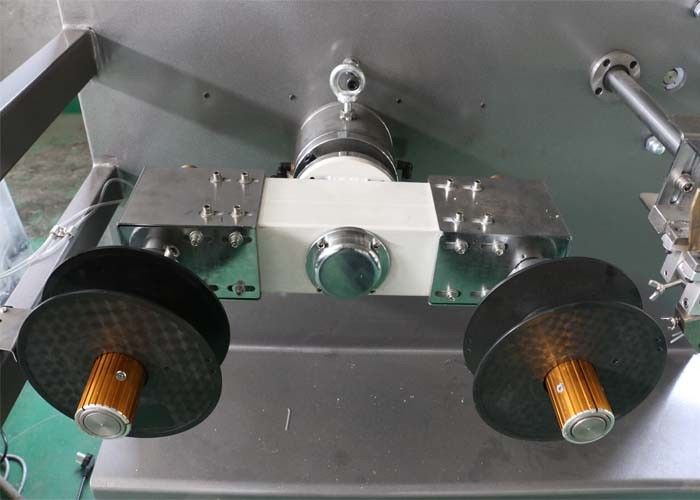

This new generation rotatable double disc winding machine is designed and produced by our company, it is our 5th generation winding machine, compared with traditional single disc or old type double disc winding machine, the new double disc Auto winding machine can shorten the spool changing time to not more than 25 sec.
This new design winding machine can really save time and improve efficiency, when spool 1 is full, it can automatically rotates into spool 2 position, at same time, empty spool 2 will be in the postion of spool 1, the workers cut the filament, and feed the filament into spool 2, the winding machine keeps working when the worker takes the full spool out.
As the 3D printing becomes more and more popular in this world, the demand for the printing filament making extruder machine is also growing very fast, generated by our years' experience on extrusion machinery, our company developed the 3D printer filament extruder for 3D printer filament manufacturing. nowadays, our 3D printer filament extruder machine has been exported to many countries like France,Czech, UK,USA,Russia and so on. Our filament extruder machines are very welcomed because its multi-advantages:
Advantages:
1. Higher capacity compared with other suppliers using the same model.
2. Perfect tolerance: within +/-0.03mm, even+/-0.01mm.
3. It can produce the different diameter of filament from 1.75mm-3.0mm.
4. Easy operation: PLC full-automatically control system.
5. Produce different raw material: ABS PLA PA HIPS PETG,PEEK, PLA, WPC.
6. Low maintain. We did not receive any complaint once the machine is put into opearation.
7. We can provide installation services overseas.
---The application of 3D printer filament
Based on the analysis of the characteristics and performance of different structures of 3D printers and consumables, we have a clear understanding of the working principle of 3D printers. We believe that plastic materials will remain the mainstream
material for 3D printing for a long time.
We have different machine models with different capacity for your choice:
| Model | Power | Diameter | Capacity | Tolerance | Material |
| PL-25 | 2.2 KW | 1.75mm-3mm |
3-5Kg/h |
+0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
This Filament Extruder Machine is composed by following parts:
| No. | Item | Qty |
| 1 | Hopper Dryer | 1 Set |
| 2 | Single Screw Plastic Extruder | 1 Set |
| 3 | Die | 2 Sets |
| 4 | Hot & Cooling water cooling tank | 2 Sets |
| 5 | Horizontal storage rank | 1 Set |
| 6 | Backstop machine | 1 set |
| 7 | Haul-off machine | 1 set |
| 8 | Winding machine | 1 set |

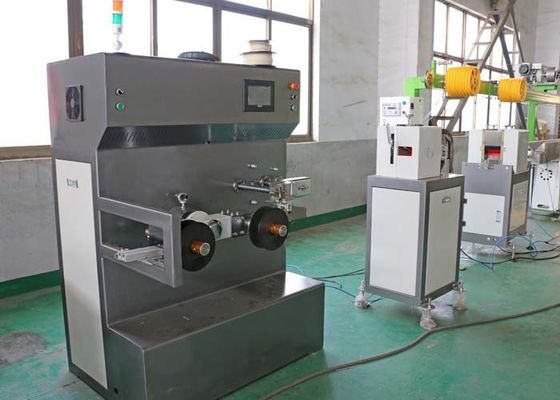

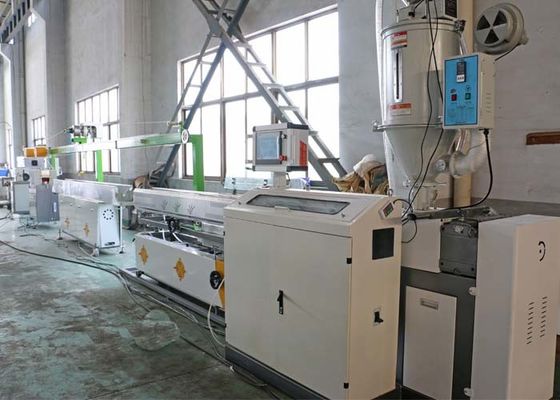

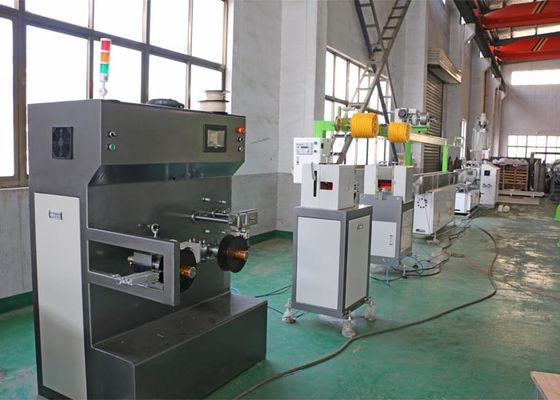

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:
