SWP Series 400kg/H Plastic PVC Pipe Profile Recycling Crushing Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  SWP Series 400kg/H Plastic PVC Pipe Profile Recycling Crushing Machine

Product Details:
Place of Origin: China
Brand Name: Plastar
Certification: CE, ISO9001
Model Number: SWP500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar, 5300$/set
Packaging Details: standard package
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/year
Detailed Product Description
Suitable Material: PVC, PE PPR Pipe, Profile Capacity: 100-800kg/h
Motor Brand: Siemens Beide Inverter: Optional
Machine Color: Customized Voltage: Customized
Use: Waste Plastic Crusher Blades Material: 9CrSi/D2/SKD-11plastic Crusher
High Light:

400kg H Plastic Crusher Machine

,

PLASTAR plastic recycling crusher

,

PLASTAR 18kw Plastic Crusher Machine

SWP Series 100-1000kg/h Plastic PVC Pipe Profile Recycling Crushing Machine

SWP series plastic pipe/profile crusher machine consists of motor, rotary shaft, blades, frame, working platform, screen mesh, body and discharging door, it is very efficient machine for further recycling the waste plastic pipe or profile, after crushing, you can get 2-8mm small crushed particles.

This SWP series crusher is specially designed to crush PVC pipe, PPR pipes, etc. For smaller diameter, you can put the 6m long pipe directly into this crusher for crushing, we also manufacture PVC milling machine pulverizer as well.





Main Technical Parameters:

Model SWP300 SWP400 SWP500 SWP600
Rotary Knife Diameter(mm) 400 400 400 400
Rotary Knife Quantity (unit) 3 5 5 10units/2groups
Rotary Knife rpm(r/min) 600 500 500 480
Static Knife Quantity(unit) 2 2 2 2x2
Sieve Aperture(mm) φ10 φ12 φ12 φ12orφ14
Crushing Capacity(kg/h) 150-200 300-400 400-500 500-700
Power(kw) 13.2 18 18-22 33
Feed Door Caliber(mm 300x200 350x300 500x300 650x300
Weight(kg) 950 1300 1500 1800

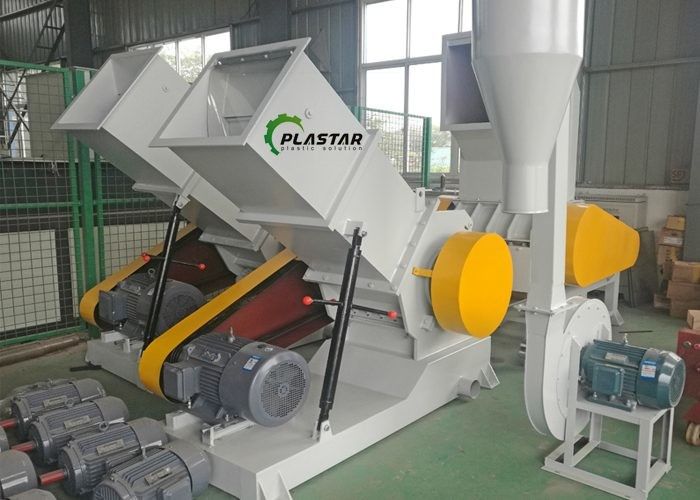

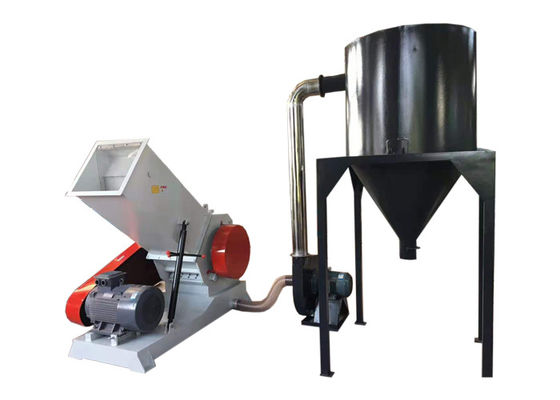

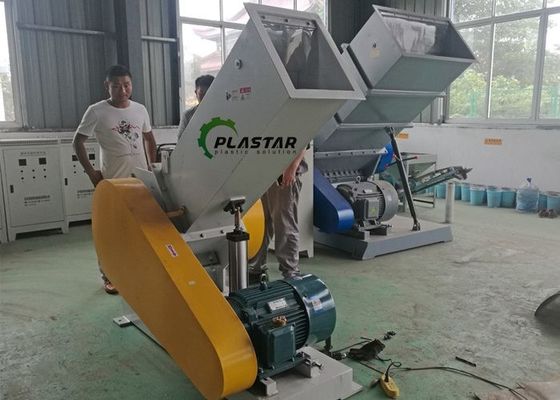

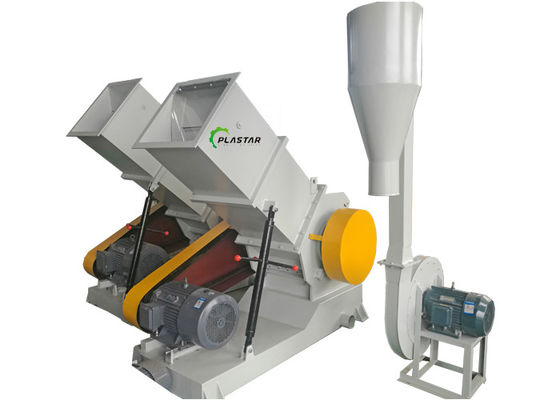

Machine pictures for reference:

SWP Series 400kg/H Plastic PVC Pipe Profile Recycling Crushing Machine 0SWP Series 400kg/H Plastic PVC Pipe Profile Recycling Crushing Machine 1

SWP Series 400kg/H Plastic PVC Pipe Profile Recycling Crushing Machine 2
