Applied Material: | PE, LDPE, LLDPE | Milling Type: | Milling Blade Type |
---|---|---|---|
Blade Material: | SKD-11 | Motor Brand: | Siemens Beide |
Vibrating Screen: | Yes | Dust Collecting Device: | Optional |
Cooling Type: | Water Cooling+air Cooling | Final Powder Size: | 30mesh, 35mesh |
Usage: | Rotational Molding Usage Powder | ||
High Light: | PLASTAR automatic pulverizer machine,PLASTAR 100kg H pvc pulverizer machine,ABS LDPE automatic pulverizer machine |
1. Model: NP600
2. Milling room dia.: 610mm
3. Main motor power: 90kw
4. Rotation blade rotation speed: 5500rpm
5. Air blower motor: 7.5kw
6. Cooling method: Air cooling, water cooling
7. Pipe material: double layer 304 stainless steel
8. Vibrating screen dia. 1500mm stainless steel round screen
9. Inverter : ABB brand
10. Bearing: imported NSK brand bearing
11. Milling blade material: D2
12. Capacity: 600-650kg/h
13. Final powder size: 30-40mesh
14. Electrical control parts: Schneider brand electrical components
Main Datas:
Output | 500-900kg/h |
Rotation speed | 5500rpm |
Bearing | NSK brand bearing |
1. For the motor, we use Siemens Beide brand as standard to guarantee the quality.
2. The milling blades material are SKD-11, which can improve the service life.
3. There are totally three water cooling system on the machine, one is for the bearing, one is for the milling room, the left one is for the pipe.
4. Our machine design has two mouth for filling lubrication oil, one for filling the oil inside the bearing, one for filling outside the bearing, by thus, we can make sure the bearing’s long time usage without problem. We suggest the customer add oil every 24 hours usage, just add little amount oil will be ok.
Characteristics of PE LLDPE Pulverizer Machine:
The machine is our latest self-developed grinding mill, the features are as follows:
1. Compared with similar millers, its output is greatly improved (increased by 50%-80%) under the same power. It is energy-saving.
2. The discharging of the main fan reduces labour intensity of operating workers.
3. The door cover of the host can be opened for convenience of maintenance and replacement of cutters.
4. Wind and water cooling system are adopted to decrease the working temperature inside the machine body, so the grinded material uneasy for denaturalization and also conducive to grind heat sensitivity plastics. For example the part of PE and ABS can be grinded by this machine.
PE LLDPE Pulverizer Machine Blade Picture:
Our new type milling blades adopt SKD-11 material, the milling capacity is also highly improved since we use more blades compared with traditional design.

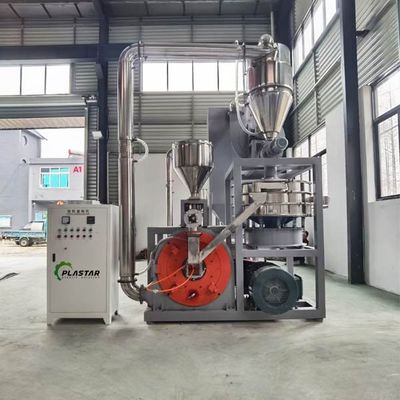

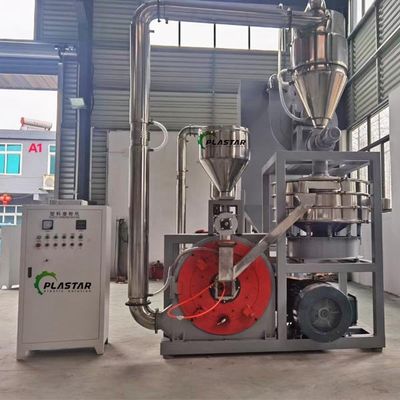

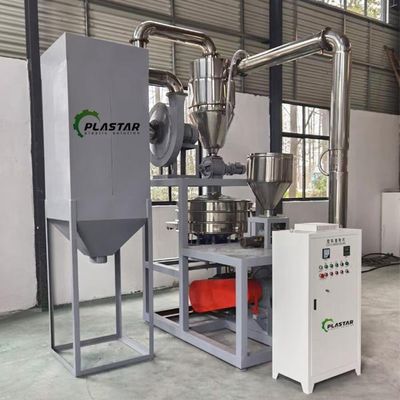

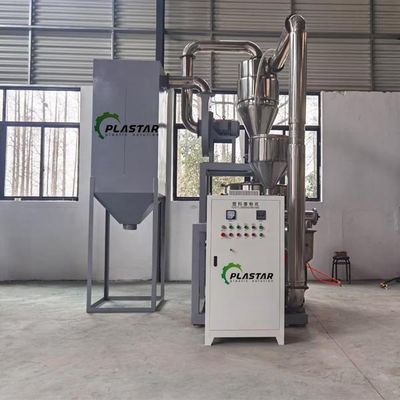

LLDPE PE Pulverizer Machine Picture:
