Multi Lumen Catheter Medical Tube Extrusion Machine Soft PVC

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Multi Lumen Catheter Medical Tube Extrusion Machine Soft PVC

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE
Model Number: PL45
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 15000-25000$/set
Packaging Details: Standard export package
Delivery Time: 20-40 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/ year
Detailed Product Description
Screw Design: Single-screw Screw Diameter: 45 Mm
Usage: Medical Catheter Screw L/D Ratio: 28:1
Motor Power: 37kw Inverter: ABB Brand
Capacity: 20-40kg/h Certification: CE ISO
High Light:

40kg h medical tube extrusion machine

,

Screw 45 mm tube extrusion machine

,

Screw 45 mm medical tube extrusion machine

Soft PVC Medical Multi-Lumen Catheter Tube Hose Extruder Machine

A. Main Application:
applicable to the producing of all different kinds of high precise and efficient medical soft tubes, such as perfusion set,
infusion set, catheter tube, nasal tube, suction tube, trachea cannula, anaesthesia tube, oxygen tube, latex tube and PVC short
tube of disposable infusion apparatus and other medical soft tube product.

B. Producing Process:
High precise and efficient Extruder→High Precise Quick Changing Style Medical Soft PVC/PU/PE/PP/FEP/PFA/PS/Silicone Catheter Tube
Mould Complete Set→L=4M High efficient stainless steel water cooling and vacuum cooling tank→Auto high Speed 2-wheel type Haul-off
Puller→Auto high precise fixed-length cutter →Auto high efficient final product air-blowing and stacking unit

C. Main Features:
C1. The main extruder adopts china famous high stable AC motor, double reduction hardened gear box drive, to ensure the energy
saving production, smooth operation and quiet as well as long service life. We can also choose world famous motor based on
customer’s order.
C2. High-end temperature control configuration system, temperature control accuracy of ± 1-1.5°C, to ensure extrusion Products and
the roundness / dimensional accuracy of the pipe materials.
C3. Requirements according to different configurations using German Siemens or Japan Mutsubishi PLC controlling technology and
system, human-computer interface system, Japan OMRON temperature controller, French Schneider contactor, world famous Servo motor,
and on-line automatic measuring diameter, automatic feedback automatic adjustment system.
C4. The proper configuration of the tube machine meets high efficiency, high precision, high-quality and maximum economy
requirements of modern production, reduce the labor intensity.



Main Machine Model for reference:

Model Tube size Screw diameter of extruder Main motor power Output
SJ45 1mm-6mm 45mm 7.5kw Around 20kg/h
SJ50 2mm-10mm 50mm 11kw Around 30kg/h
SJ65 6mm-16mm 65mm 22kw Around 60kg/h



Machine pictures:

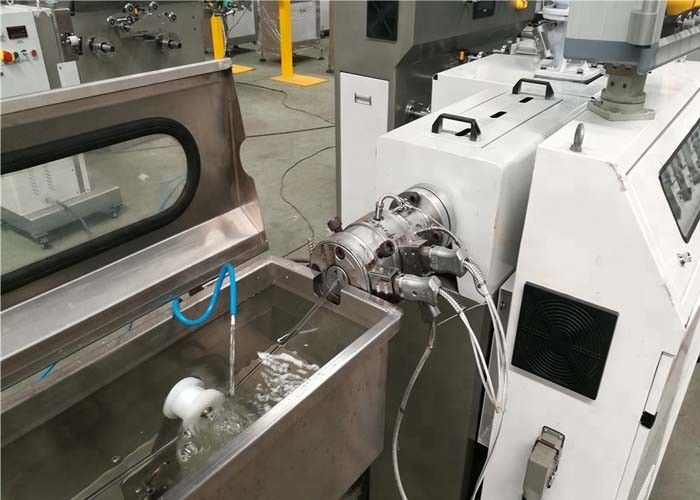

1. Extruder part:
The screw barrel is made of high-strength nitrided alloy steel (38CrMoALA) or high-strength quenched alloy steel (9Cr18MoV), and the main engine is driven by an AC frequency conversion controller; the temperature controller uses an intelligent temperature control meter, and the temperature control accuracy reaches ±1℃

Multi Lumen Catheter Medical Tube Extrusion Machine Soft PVC 0

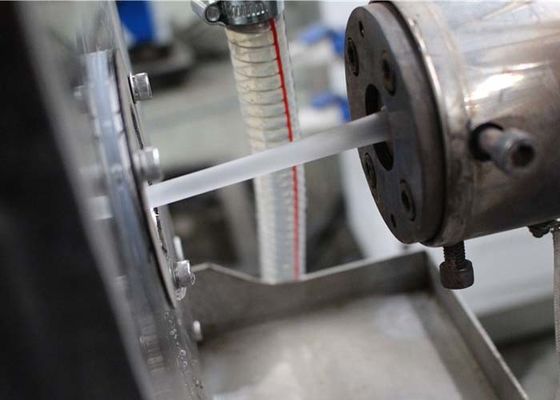

2. Mould part:
The mold is made of heat-stable extrusion mold special steel, and the smooth mirror flow channel provides sufficient protection for high-quality medical tubes.

Multi Lumen Catheter Medical Tube Extrusion Machine Soft PVC 1

Multi Lumen Catheter Medical Tube Extrusion Machine Soft PVC 2
