400kg/H Plastic Pelletizing Recycling Machine Plastic Granulator Machine

The actual production capacity is even bigger than the supplier promised me, i am very satisfied with this machine, very good. I surely will cooperate with you again in the future.

—— Mr. Joshua Douglas

Good service, prompt delivery

—— Mr. Bond Toth

I am so glad to have this pleasant business cooperation with Plastar,they have done quite amazing job. We communicate so well and they give me very professional help of this new technology,we will start the new business of plastic recycling and we are sure it will be a good result.

—— Mr. Mark harrison

I am very happy to have such good cooperator and shipping is very fast and solve my issue very fast,give big thumb,happy happy~ Very professional and easy to communicate.

—— Mrs. Nancy

I'm Online Chat Now

400kg/H Plastic Pelletizing Recycling Machine Plastic Granulator Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  400kg/H Plastic Pelletizing Recycling Machine Plastic Granulator Machine

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: PL500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 25000-85000$
Packaging Details: wood box+wood pallet+stretch film package
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/year
Detailed Product Description
Raw Material: PP PE ABS PET HDPE, LDPE Etc Screw Design: Single Screw Extruder
Screw Material: 38CrMoAL Screen Changer: No Stop Automatic Hydraulic Screen Changer
Processing Capacity: 100-1500kg/h Machine Type: Single Stage Or Double Stage
Feeding Type: Force Feeding Degassing Device: Vacuum Degassing
Main Motor Brand: Siemens Beide Name: Plastic Recycling Pelletizing Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

400kg H Plastic Pelletizing Recycling Machine

,

PLASTAR plastic granulator machine

,

PLASTAR Plastic Pelletizing Recycling Machine

High Output Plastic Granulator Machine Recycling Waste Film Pelletizing Extruder Line

Zhangjiagang PLASTAR Machinery Co., Ltd.

SJ series compacting pelletizing system, it is a three in one recycling machine designed for low density plastic articles. It could provide the excellent re-pelletizing and recycling solution for film, raffia, filament, woven bag and nonwoven fabric and other consumed / post soft or rigid plastic. Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, PPS, EPS, ABS, PA, PLA, PET waste plastic materials recycling field.



High efficiency automatic pelletizing machine SJ series from PLASTAR is designed for recycling plastic PP, PE ,HDPE,LDPE,LLDPE,PA66,PC,PET,OPP,BOPET,ABS and etc.
One pelletizing machine can produce more than 10 kind of plastic material.
1) Simple design, user-friendly operation.
2) SIEMENS original motors, ABB/Schneider converts.
3) SIEMENS PLC, Celduc solid relay, Gefren pressure sensors, Omron Temperature controllers, LS air switch.
4) Lower investment cost for a high quality and durable machine.
5) Low energy consumption, High output capacity.
6) Usual delivery time: 60 working days.
7) Engineers are available to do commissioning work abroad.

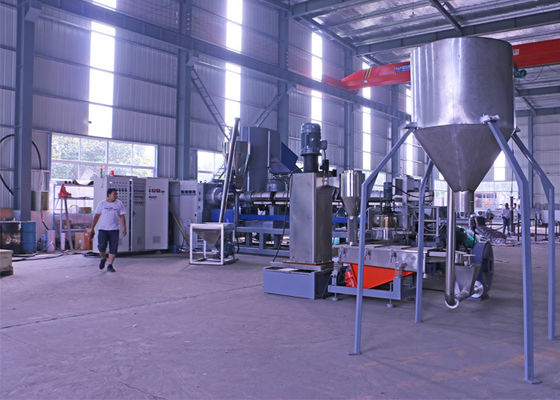

400kg/H Plastic Pelletizing Recycling Machine Plastic Granulator Machine 0

Compactor/agglomerator
The rotatory blades of compactor will cut up incoming scraps. Frictional heating which caused by high speed rotatory blades will heat and let scraps shrinking just below their agglomerating point. Optimal designed guide structure compacts the material and directs it into extruder screw. Crushes, dries and compacts the material which enables a fast and stable feeding from the compactor directly into the extruder.

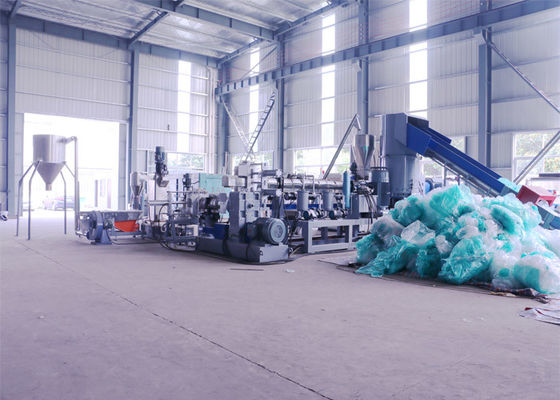

400kg/H Plastic Pelletizing Recycling Machine Plastic Granulator Machine 1

Pelletizing unit
Water-ring die-face/Strand cutting methods are usually adopted. In water-ring die-face cutting system, the rotary cutting blades will be pneumatically fit completely and closely to the die-face surface to ensure efficient cutting. Rotary speed of the blades is automatically adjusted by module system according to melt pressure at the die face.

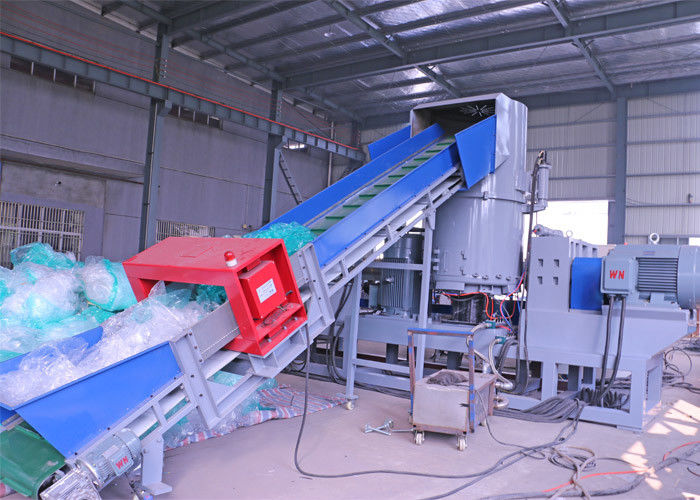

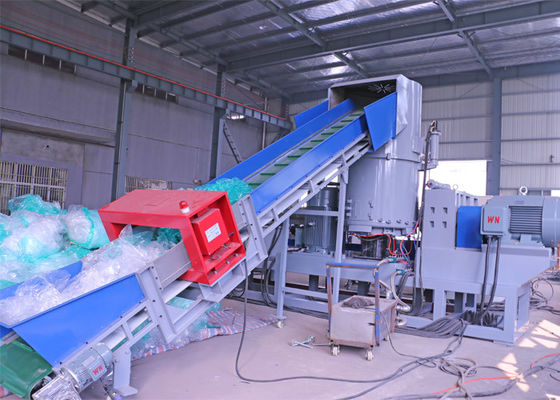

400kg/H Plastic Pelletizing Recycling Machine Plastic Granulator Machine 2
Our recycling line machine model for reference:

Model Screw diameter(mm) Main motor power (kW) Second motor power(kW) Capacity
SJ130/SJ140 130&140 132 45 400-500kg/h
SJ150/SJ160 150&160 160 55 600-800k/h
SJ160/SJ180 160&180 220/250 75 800-1000kg/h
SJ180/SJ200 180&200 250/315 75 900-1100kg/h



Quality first is the tenet of our company.In order to realize this concept, we set up our own mold and CNC workshop, factory quality control personnel strictly control the quality.Also can facilitate the customer to better understand the production process and the physical machine.
Welcome friends from all walks of life to visit our workshop, sincerely hope that we can become partners and long-term cooperation in the future!
