Tolerance: | ±0.02mm-0.03mm | Capacity: | 20-25KG/H |
---|---|---|---|
PLC: | Siemens | Winding Effect: | Good Winding |
Whole Line Size: | 12.5L*1.1W*2.3H(meter) | Filament Dia.: | 1.75-3mm |
Plastic Processed: | PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA | Main Motor Brand: | Siemens Beide |
Machine Color: | Customized | Screw Design: | Single-screw |
Voltage: | Customized | Automatic Grade: | Automatic |
Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support,Video Technical Support |
Warranty: | 1 Year | Usage: | 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making |
Inverter: | ABB | Screw Diameter: | 45mm |
High Light: | 0.02MM 3D Printer Filament Extruder Machine,PLASTAR 0.02MM 3d printer extruder,PLASTAR 3D Printer Filament Extruder Machine |
±0.02MM Tolerance PLA ABS PETG PEEK 3D Printer Filament Extruder
As the 3D printing becomes more and more popular in this world, the demand for the printing filament extruder is also growing very fast, generated by our years' experience on extrusion machinery, our company developed the 3D printer filament extruder for 3D printer filament manufacturing. nowadays, our 3D printer filament extruder has been exported to many countries like France,UK,USA,Russia and so on. Our filament extruder machines are very welcomed because its multi-advantages:
1 Bigger output compared with other suppliers who use the same model.
2 Lowest tolerance: +/- 0.03 mm. even +/- 0.02 mm.
3 Can produce 1.75 - 3.00mm diameter filament
4 It can process multi-materials like PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA.
5 Easy operation: SIEMENS PLC full-auto controlling system
6 Stable quality guarantee, we have not received passive feedback from our customers.
7 Oversea service, installation, staff training and lifetime technical support.
We have different machine model with different capacity for your choice:
Model | Power | Diameter | Capacity | Tolerance | Material |
PL-25 | 2.2 KW | 1.75mm-3mm |
3-5Kg/h |
+0.02mm | PLA ABS HIPS PA PET Nylon PP |
PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
This Filament Extrusion Line is Composed by following parts:
No. | Item | Qty |
1 | Hopper Dryer | 1 Set |
2 | Single Screw Plastic Extruder | 1 Set |
3 | Die | 2 Sets |
4 | Hot & Cooling water cooling tank | 2 Sets |
5 | Horizontal storage rank | 1 Set |
6 | Backstop machine | 1 set |
7 | Haul-off machine | 1 set |
8 | Winding machine | 1 set |

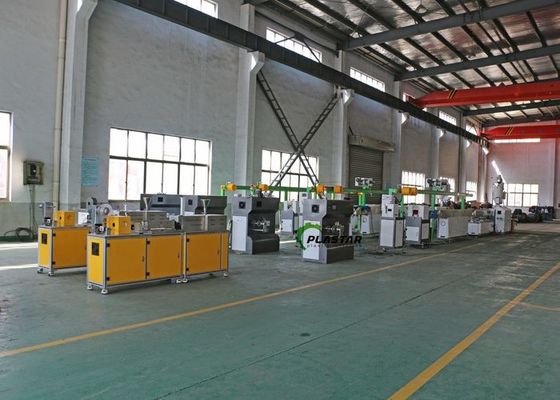

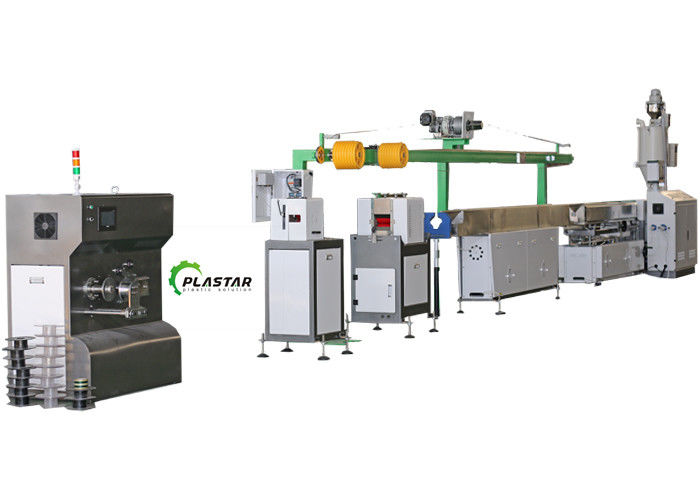

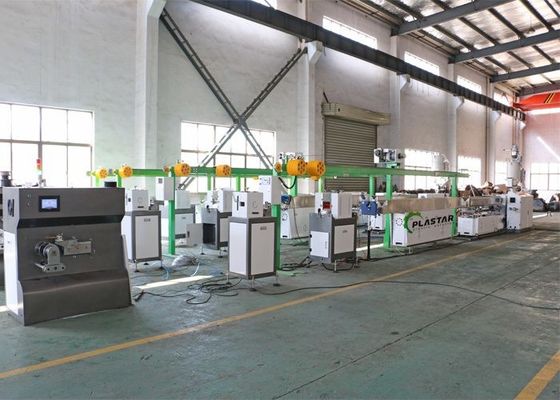

Our filament extrusion line pictures for reference:
