Product Details:
Payment & Shipping Terms:
|
| Shaft Design: | Single Shaft | Applicable Material: | PP PE ABS PET HDPE LDPE PC Nylon |
|---|---|---|---|
| Shredding Capacity: | 300-3000kg/h | Blade Material: | SKD-11 Or Customized |
| Motor Brand: | Siemens Beide | Voltage: | 380V/50Hz/3Phase Or Customized |
| High Light: | 3000kg h Plastic Shredder Machine,3000kg h drum shredder machine,380V Plastic Shredder Machine |
||
Waste Plastic Single Shaft Lump Pipe Barrel Drum Shredder Machine
Single shaft shredder/shredding machine is used to pre-crush different kinds of plastic materials, especially very large and hard plastics such as lumps,barrels,pipes wood, die material, big block material, baled film to small particles for easy reprocessing, storage and transportation, creating new value from reusable wastes.
Our company have many years' experience in manufacturing the plastic shredder & crusher machine, we can produce different type and different capacity shredder machine according to your requirement.
Features
1. It adopts PLC control system, automatic overload protection and auto reverse switch
2. Good shaft structure design, low noise, blades are easily changeable.
3. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation
4. It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.
Technical Data of single shaft shredder machine
| Item/Model | WT2260 | WT4080 | WT40100 | WT40120 | WT40150 | WT48150 |
| Shaft width(mm) | 600 | 800 | 1000 | 1200 | 1500 | 1500 |
| Hydraulic Journey | 500mm | 850mm | 850mm | 950mm | 950mm | 950mm |
| Shaft Dia.(mm) | φ220 | φ400 | φ400 | φ400 | φ400 | φ480 |
| move blades Qty(PCS) | 26 | 46 | 58 | 70 | 88 | 132 |
| Main motor(KW) | 18.5 | 37 | 45 | 55 | 75 | 90 |
| Hydraulic(KW) | 2.2 | 3.75 | 3.75 | 5.5 | 5.5 | 5.5 |
| Weight(KG) | 1550 | 3600 | 4000 | 5000 | 6200 | 8000 |

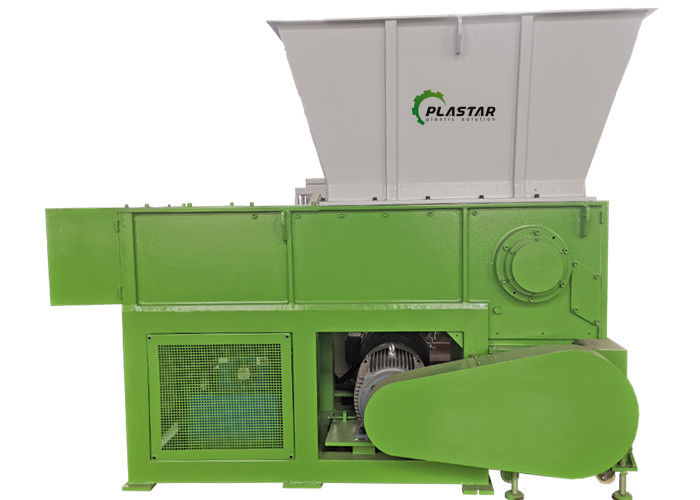

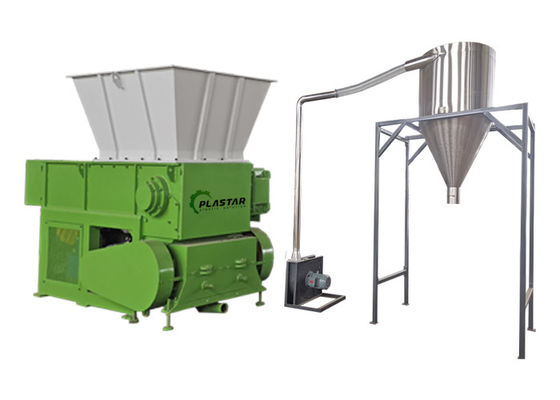

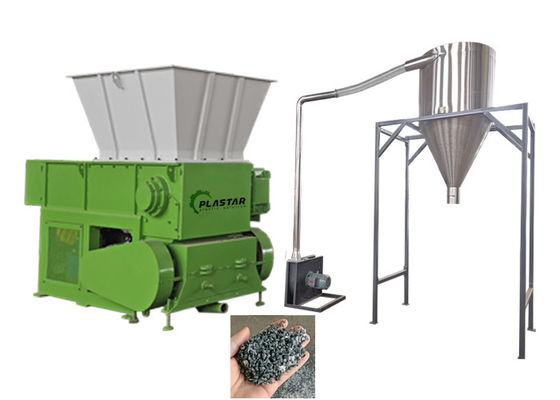

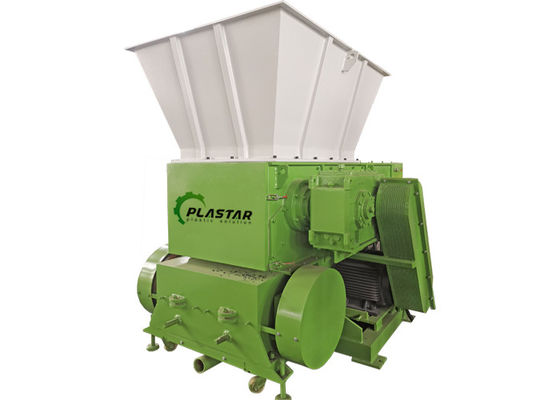

Machine pictures for reference:
