Waste Plastic HDPE PP Plastic Granules Manufacturing Machine Double Stage Single Screw

Waste Plastic HDPE PP Plastic Granules Manufacturing Machine Double Stage Single Screw
Waste Plastic HDPE PP Plastic Granules Manufacturing Machine Double Stage Single Screw Waste Plastic HDPE PP Plastic Granules Manufacturing Machine Double Stage Single Screw Waste Plastic HDPE PP Plastic Granules Manufacturing Machine Double Stage Single Screw Waste Plastic HDPE PP Plastic Granules Manufacturing Machine Double Stage Single Screw

Large Image :  Waste Plastic HDPE PP Plastic Granules Manufacturing Machine Double Stage Single Screw

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: PL500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 25000-85000$
Packaging Details: wood box+wood pallet+stretch film package
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/year
Detailed Product Description
Name: Plastic Recycling Pelletizing Machine Raw Material: PP PE ABS PET HDPE, LDPE Etc
Screw Design: Single Screw Extruder Processing Capacity: 100-1500kg/h
Machine Type: Single Stage Or Double Stage Feeding Type: Force Feeding
Degassing Device: Vacuum Degassing Main Motor Brand: Siemens Beide
Screen Changer: No Stop Automatic Hydraulic Screen Changer After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

PLASTAR plastic granules manufacturing machine

,

PLASTAR plastic granulator line

,

1200mm plastic granules manufacturing machine

Zhangjiagang PLASTAR Machinery Co., Ltd.

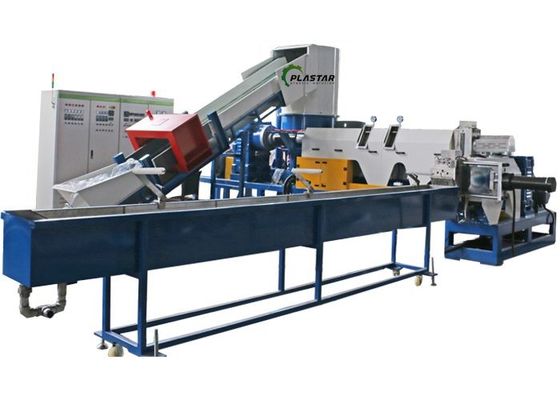

This line is a one/two stage plastic regenerative pelletizer/pelletizing/granulator/granuating which is suitable for many kinds of plastic waste materials recycling and making pellet, such as PP, PE,HDPE, LDPE, LLDPE film and clean woven/nonwoven bag materials,etc.

it has vacuum exhausting system on extruder barrel which can fully vent the moisture in the material,hence the final granule quality will be very perfect.

end of screw barrel, it equipped with double station fast speed hydraulic non -stop screen changer which can efficiently filter out the dirty in the plastic melt.

the pelletizing adopts water cooling pelletizing which is easier to operate, and the shape and appearance of granule is good.



Process flow of the Plastic granules making machine :
Conveyor→ PE film compactor→ Extruding system→ Die-head and High speed Net exchanging system→ water ring pelletizing machine → water tank → dewatering machine→ vibrating sieve→ Air Blower → Storage hopper



Machine pelletizing line models:


Model

L/D

Output

Speed of Screw Rotation

Power

Center Height

SJ-50/33

33:1

20-80 kg/h

12.5-130 r/min

37kw

1000 mm

SJ-65/33

33:1

80-150 kg/h

33-130 r/min 20-120r/min

45kw 55kw

1000 mm

SJ-75/33

33:1

120-280 kg/h

20-120 r/min

75kw 90kw

1000 mm

SJ-90/33

33:1

150-450 kg/h

33.3-110 r/min

110kw 160kw

1000 mm

SJ-120/33

33:1

300-600 kg/h

20-100 r/min

260kw

1200 mm

SJ-150/33

33:1

450-700 kg/h

7-80 r/min

315kw

1200 mm

Waste Plastic HDPE PP Plastic Granules Manufacturing Machine Double Stage Single Screw 0

Compactor/agglomerator
The rotatory blades of compactor will cut up incoming scraps. Frictional heating which caused by high speed rotatory blades will heat and let scraps shrinking just below their agglomerating point. Optimal designed guide structure compacts the material and directs it into extruder screw. Crushes, dries and compacts the material which enables a fast and stable feeding from the compactor directly into the extruder.

Waste Plastic HDPE PP Plastic Granules Manufacturing Machine Double Stage Single Screw 1

Pelletizing unit
Water-ring die-face/Strand cutting methods are usually adopted. In water-ring die-face cutting system, the rotary cutting blades will be pneumatically fit completely and closely to the die-face surface to ensure efficient cutting. Rotary speed of the blades is automatically adjusted by module system according to melt pressure at the die face.

Waste Plastic HDPE PP Plastic Granules Manufacturing Machine Double Stage Single Screw 2



Quality first is the tenet of our company.In order to realize this concept, we set up our own mold and CNC workshop, factory quality control personnel strictly control the quality.Also can facilitate the customer to better understand the production process and the physical machine.
Welcome friends from all walks of life to visit our workshop, sincerely hope that we can become partners and long-term cooperation in the future!
