Water Ring PP Color Masterbatch Plastic Pelletizing Recycling Machine 150kg/H

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Water Ring PP Color Masterbatch Plastic Pelletizing Recycling Machine 150kg/H

Product Details:
Place of Origin: CHINA
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: SHJ50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 30000-40000$ per set
Packaging Details: Wood pallet+stretch film
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per year
Detailed Product Description
Raw Material: PP, PE, ABS, PET, PLA Etc Capacity: 100-150kg/h
Screw Design: Double Parallel Twin Screw Pelletizing TypeWater Ring: Water Ring
High Light:

PLASTAR PET PLA Plastic Pelletizing Recycling Machine

,

PLASTAR water ring pelletizer

,

150kg h Plastic Pelletizing Recycling Machine

Parrael Twin Screw Water Ring PP Color Masterbatch Plastic Pelletizing Recycling Machine

Definition of color masterbatch:
By the high proportion of additives, thermoplastic resin, pigments or the good dispersion of plastic colorants, it chooses the resin of colorants that have good wetting and dispersing effect and good compatibility with being shaded material. It can be explained like: PP/PE/PET/PVC carrier + pigment + additives = color master batch
Generally, we use the special type of extruder to produce this kind of color master batch: SHJ Twin Screw Extruder. SHJ Series Co-rotating Parallel Twin Screw Extruder consists of motor drive, torque distribution gearbox, processing section, temperature controlling units, die section and down-stream pelletizing system, etc.


Specification:
1. SHJ Series Compounding and Granulating Pelletizing line for Color Master Batch

Process Color master batch compounding and pelletizing
Application 50-60%PP/PE/PVC/PET, 40%pigment, 8%additives
Color Master batch: pigment +additives+ PE/PP/PVC/PET carrier
Output 40-500kg/h, depending on the condition of raw
Material, formulation and processing, etc.

2. Main machines included in production line



NO. Name
1 SHR500A High Speed Mixer
2 Screw Loader
3 Main feeder
4 SHJ series Twin Screw Extruder
5 Electric Control System(cabinet)
6 Strands Pelletizing System/ Water ring Pelletizing System
7 Vibrating screen
8 Storage hopper


Introduction of parts of SHJ Twin Screw Extruder

SHJ Twin Screw Extruder adopts modular design principle, component standardization manufacturing, which can present stable and reliable performance. Thanks to the modular principle, SHJ extruders can provide highly customizable solutions according to customers' process and special requirements. Based on different output torque grade, SHJ series extruders have basic type and efficiency type.

Process section includes barrels, screw shafts, screw elements, individual temperature heating and cooling unit. Barrels and screw elements are designed in block principle.

Block structure allows the screw elements combine and sequence optimized to realize the process:

Conveying-Plasticization- Compounding & Dispersion- Homogenization- Degassing- Pressure building
Also Block structure allows the barrels adjust freely to the fit the process requirement.

Based on different process position, SHJ extruders have different barrels type: feeding barrel, side feeding barrel, close barrel, open on top barrel, vacuum vent barrel, etc. According to the different jobs' requirement, barrels' materials can be nitride steel or bimetallic steel.

Multiple cutting systems can be combined with SHJ Twin Screw Extruder, such as strands pelletizing, hot-face cutting, water ring pelletizing and under-water pelletizing, etc.

Both Instrument control and PLC control are available to apply in the SHJ electrical controlling system. All the key electrical parts adopt European brands to guarantee the controlling system with significant and stable performance.



Main technical specification

Machine Size Screw Diameter(mm) L/D Screw Speed
Max.(rpm)
Motor power
(Kw)
Torque per shaft
(Nm)
Specific torque
T/A3
Throughput rate
(kg/h)
ATE35 35.6 36-44 600 15 115 4.2 40-80
ATE52 51.4 36-44 600 55 415 5.2 120-150
ATE65 62.4 36-44 600 90 675 4.8 250-350
ATE75 71 36-44 600 132 990 4.6 350-500


Advantages of color master batch:
1. High concentration of pigment
2. Excellent dispersion, good heat-resistant, high color fastness, stable performance and shows bright color
3. Non-toxic, environmental-friendly
4. Compatible with various material PE/PP/PS/ABS/HIPS/PVC/TPR etc.
5. Wide application: blow moulding, blowing film, injection moulding, extrusion, spin-dyeing, cable sheathing, etc.
6. Range of industrial application: office automation, household appliances, film and packing material, textile, sheet, pipe, medical appliances, toys and so on.


Advantages of the production line
1. It can produce high-quality, high-quantity filler master batch
2. It works with high efficiency
3. It's computerized with high automation


Why choose us
Lower investment cost for a high quality and durable machine;

Low energy consumption with high production output;

Overseas installation and training are available;

Machine warranty with spares in stocking and in-time delivery;

Fast machine delivery and installation: PLASTAR produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers. The regular delivery time of an PLASTAR recycling machine is within 50 working days.



More machine pictures for your reference:

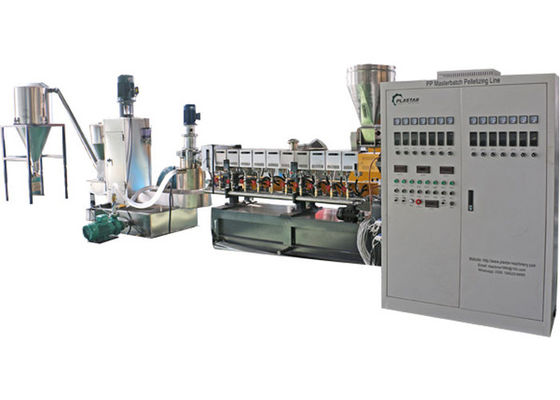

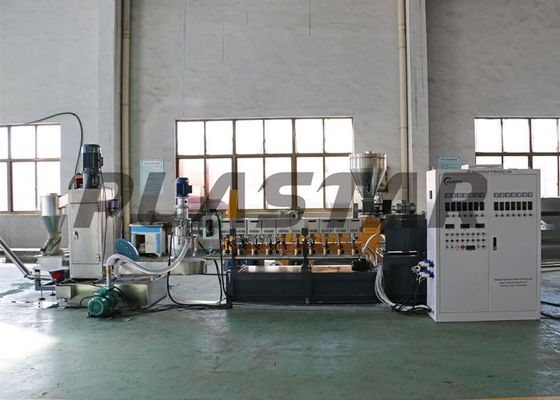

Water Ring PP Color Masterbatch Plastic Pelletizing Recycling Machine 150kg/H 0Water Ring PP Color Masterbatch Plastic Pelletizing Recycling Machine 150kg/H 1

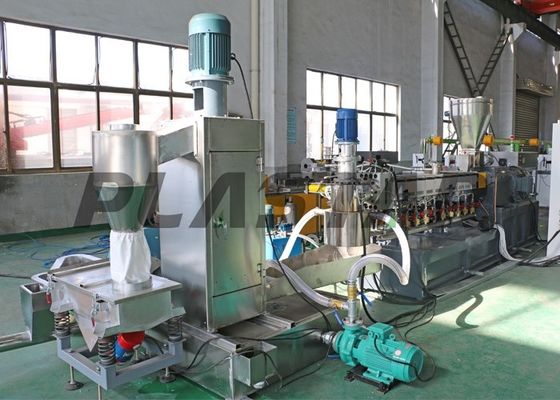

Water Ring PP Color Masterbatch Plastic Pelletizing Recycling Machine 150kg/H 2
