Product Details:
Payment & Shipping Terms:
|
| Tolerance: | ±0.02mm | Capacity: | 1-25KG/H |
|---|---|---|---|
| PLC: | Siemens | Whole Line Size: | 12.5L*1.1W*2.3H(meter) |
| Filament Dia.: | 1.75-3mm | Plastic Processed: | PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA |
| Main Motor Brand: | Siemens Beide | Screw Design: | Single-screw |
| Warranty: | 1 Year | Winding: | Neat Winding |
| High Light: | Single screw 3D Printer Filament Extruder Machine,PA12 flexible filament extruder,PA12 3D Printer Filament Extruder Machine |
||
1.75mm Carbon Fiber Filament Extruder Machine for 3D Printer
3D Printer Filament Extrusion Line, ABS PLA Carbon fiber extrusion machines General Intruduction:
Our corperation has focused on the extrusion technology of 3D filament for nearly 10 years, and has a high reputation and professional recognition in the industry.
Major domestic 3D consumables manufacturers have purchased our extrusion lines,such as eSUN, Sunlu and other 3d filament manufacturers.
We provide one-year warranty service. Except during the epidemic period, we cannot travel abroad. We can provide on-site service at other times. Please contact our sales staff for specific details. We have confidence to do a good job both in products and services.
Welcome to visit our factory.
3D printing has become more and more popular for all kinds of industries. With the rising of 3D printing technology, our company developed the filament machine for 3D printing, and also sold them to a lot of developed countries,such as France, UK, Russian, USA and so on. Of course, our machines have many outstanding advantages.
Feature:
Information of the PLA, PA Nylon, PC ,and HIPS and ABS filaments,
ABS filament process temperature is 230-260° C,melting point is 230° C
PLA 3D printer filament is 210-235°C, melting point is 200° C.
PVA temperature for printer is 180°C-200°C.Melting point is 200°C.
PA Nylon temperature for printer is 220°C-250°C.Melting point is 260°C
PC temperature for printer is 230°C-250°C Melting point is 260°C.
HIPS filaments temperature for printer is 160°C-220°C,Melting point is 230°C.
Advantages:
1. Higher capacity compared with other suppliers using the same model.
2. Perfect tolerance:+/-0.03mm, even+/-0.01mm.
3. It can produce the different diameter of filament from 1.5mm-3.0mm.
4. Easy operation:automatically control system and easy to maintaince .
5. Produce different raw material: ABS PLA PA HIPS PETG.
6. Low maintain.
7. We can provide installation services overseas.
Machine configuration, can be customized.
--Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.
---The application of 3D printer filament
Based on the analysis of the characteristics and performance of different structures of 3D printers and consumables, we have a clear understanding of the working principle of 3D printers. We believe that plastic materials will remain the mainstream
material for 3D printing for a long time.
We have different machine models with different capacity for your choice:
| Model | Power | Diameter | Capacity | Tolerance | Material |
| PL-25 | 2.2 KW | 1.75mm-3mm | 3-5Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |

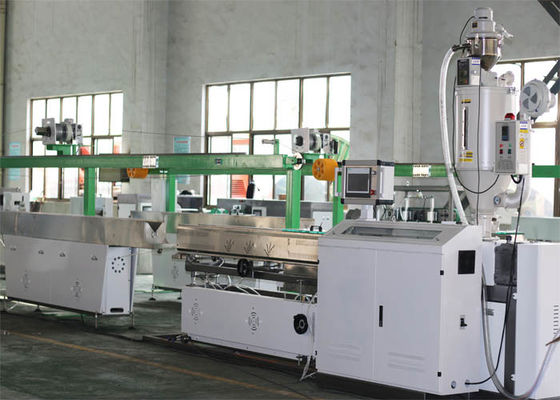

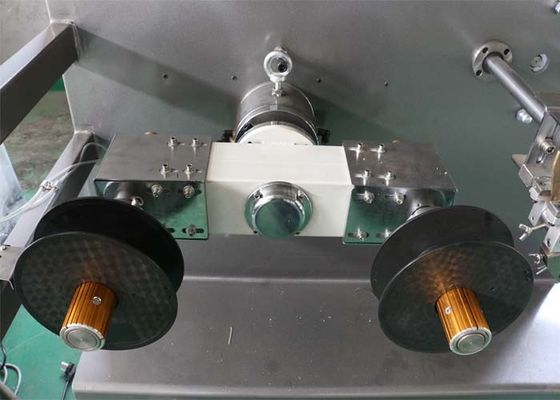

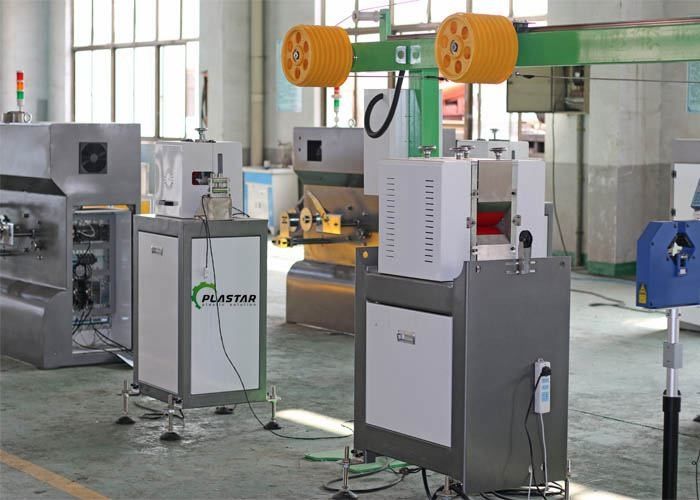

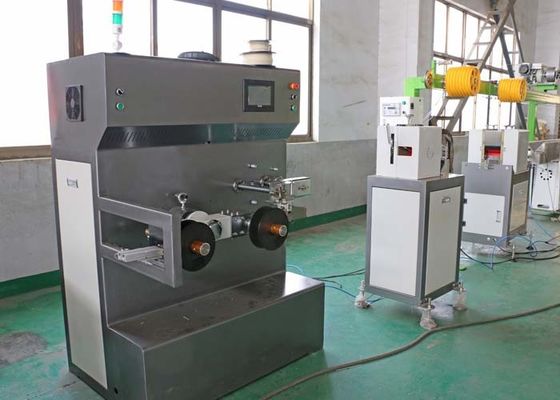

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:
