Product Details:
Payment & Shipping Terms:
|
| Screw Diameter Of Extruder: | 45mm | Product Name: | Hose Extruder Medical Tube Extrusion Line |
|---|---|---|---|
| Tube Size: | 1mm-6mm | Output: | Around 20kg/h |
| SJ45: | Model | Main Motor Power: | 7.5kw |
| High Light: | 45mm Hose Extruder,45mm tube extrusion line,1mm Hose Extruder |
||
PU PVC Hose Pipe Medical Tube Extrusion Prodution Line

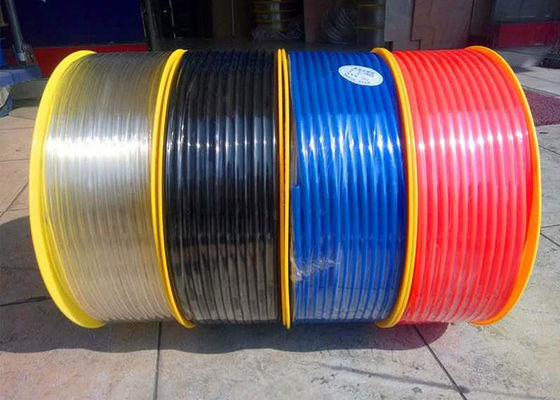

This extrusion production line is composed of single screw extruder machine, cooling and haul off system, electric control cabinet, extruding head, automatic cutting machine etc.. It is suitable for producing kinds of PVC, PU, TPE, PE catheter like suction catheter, nasal oxygen catheter, infusion catheter, multi-cavity catheter, trachea, cannula and enhanced trachea,cannula with steel wire inside etc. The medical catheter produced by this line is well-circled, transparent, lucent, evenly plasticized and clean. This extrusion production line has the advantage of easy structure, simple operating, low expending and low noise level.
Main Machine Model for Reference:
| Model | Tube size | Screw diameter of extruder | Main motor power | Output |
| SJ45 | 1mm-6mm | 45mm | 7.5kw | Around 20kg/h |
| SJ50 | 2mm-10mm | 50mm | 11kw | Around 30kg/h |
| SJ65 | 6mm-16mm | 65mm | 22kw | Around 60kg/h |

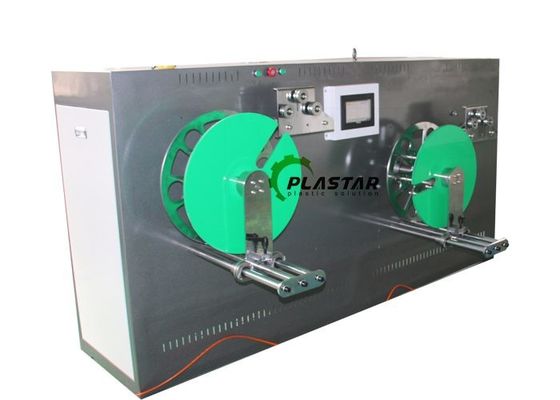

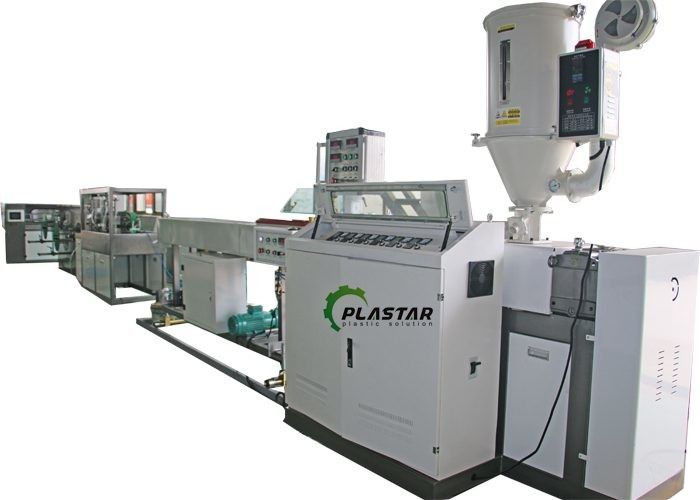

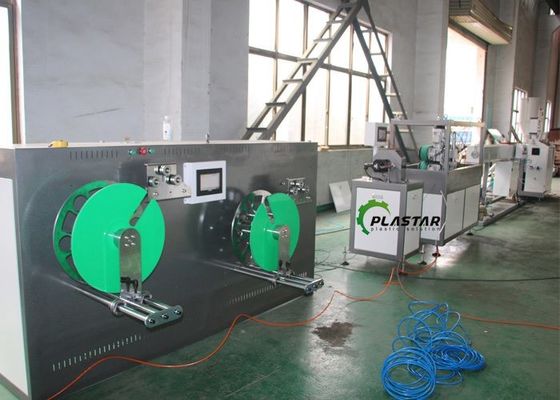

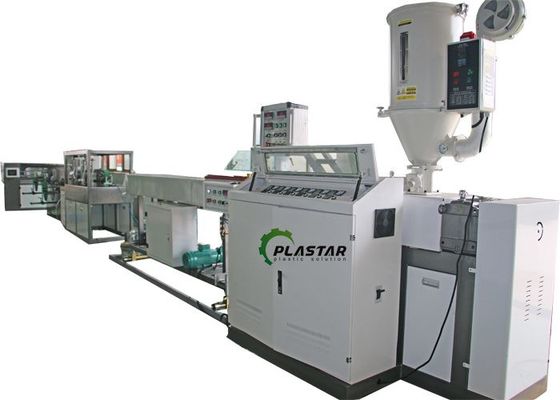

Machine pictures:
