Product Details:
Payment & Shipping Terms:
|
| Raw Material: | PE, PVC Powder Pellet | Final Product: | Medical Tube |
|---|---|---|---|
| Main Extruder: | Single Screw Extruder | Plastic Processed: | PVC,PP,PE,PA,TPU,etc |
| Dimension(L*W*H): | 9000x1500x1550mm | Screw Material: | 38CrMoALA |
| Screw Diameter: | 50 Mm | Tube Diameter Tolerance: | ±0.03mm |
| High Light: | high precision PU Hose Extruder machine,38CrMoALA screw tube extruder,Medical Urethral Catheter Hose Extruder |
||

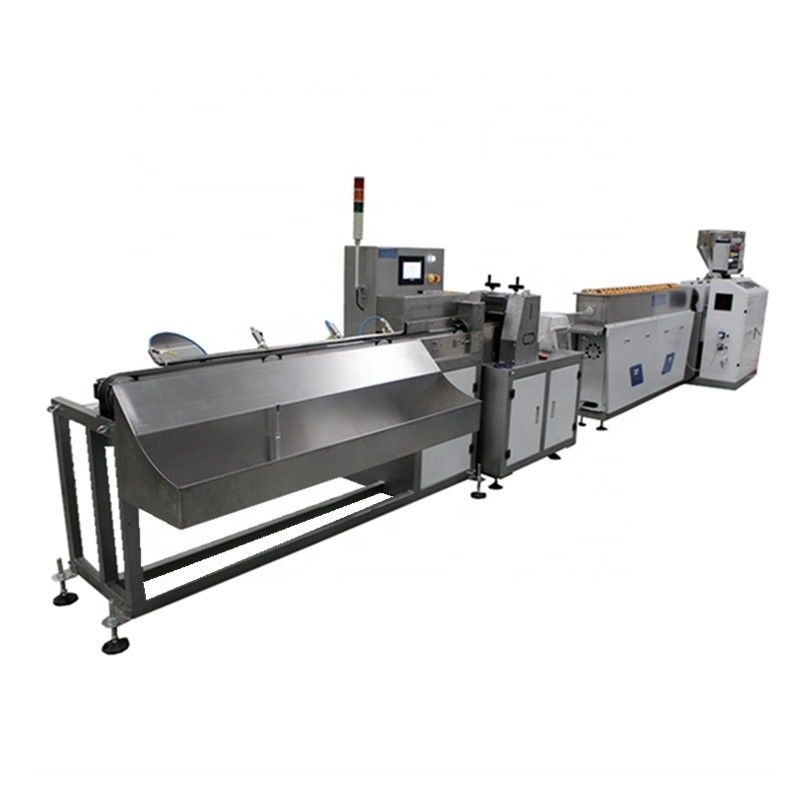

Medical PVC PU Urethral Catheter Hose Tube Extruder Production Machine
Medical PVC PU Urethral Catheter Tube Extruder Machine
A. Main Application:
applicable to the producing of all different kinds of high precise and efficient medical soft tubes, such as perfusion set, infusion set, catheter tube, nasal tube, suction tube, trachea cannula, anaesthesia tube, oxygen tube, latex tube and PVC short tube of disposable infusion apparatus and other medical soft tube product.
B. Producing Process:
High precise and efficient Extruder→High Precise Quick Changing Style Medical Soft PVC/PU/PE/PP/FEP/PFA/PS/Silicone Catheter Tube Mould Complete Set→L=4M High efficient stainless steel water cooling and vacuum cooling tank→Auto high Speed 2-wheel type Haul-off Puller→Auto high precise fixed-length cutter →Auto high efficient final product air-blowing and stacking unit
C. Main Features:
C1. The main extruder adopts china famous high stable AC motor, double reduction hardened gear box drive, to ensure the energy saving production, smooth operation and quiet as well as long service life. We can also choose world famous motor based on customer’s order.
C2. High-end temperature control configuration system, temperature control accuracy of ± 1-1.5°C, to ensure extrusion Products and the roundness / dimensional accuracy of the pipe materials.
C3. Requirements according to different configurations using German Siemens or Japan Mutsubishi PLC controlling technology and system, human-computer interface system, Japan OMRON temperature controller, French Schneider contactor, world famous Servo motor, and on-line automatic measuring diameter, automatic feedback automatic adjustment system.
C4. The proper configuration of the tube machine meets high efficiency, high precision, high-quality and maximum economy requirements of modern production, reduce the labor intensity.
Medical Tube Production line includes:
| Item | Quantity | Remarks |
| Extruder | 1 SET | |

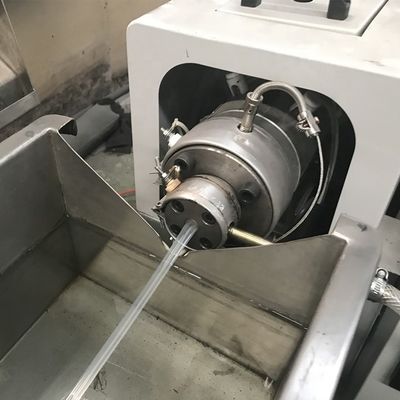

| Extrusion die | 1 SET | |

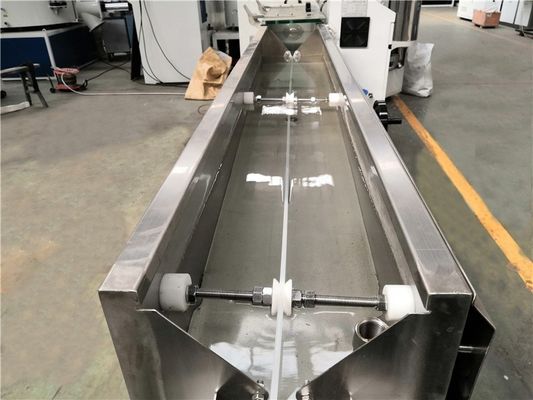

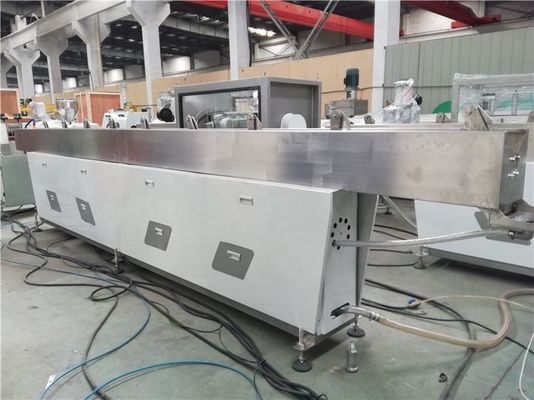

| Vacuum cooling water tank | 1 SET | |
| Cutting machine/winder | 1 SET |
Machine pictures:
