10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE
Model Number: SHR10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 2500-8500$/set
Packaging Details: Standard export package
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/year
Detailed Product Description
Total Volume: 10L Effective Volume: 7.5L
Motor Power: 3kw Mixing Blade Design: 3 Layers, Up+middle+down
Blade Material: 304 Stainless Steel Inner Tank Material: 304 Stainless Steel
Mixing Capacity: 10-200kg/h
High Light:

10L Laboratory Machinery

,

200kg h Plastic Mixer Machine

,

3kw Laboratory Machinery

10L Small Mini Lab High Speed Plastic Mixer Machine
Application:
SHR series small mini lab plastic mixer is mainly used in mixing PVC and all kinds of plastic powder materials. it can be used on plastic,rubber,food,daily chemical industry etc.
Features:
SHR Series mixers adopt advanced design and can be operated easily.It can work very stable with high efficiency,low energy consumption and low noise.
- high speed mixing motor inverter started
- high speed parts 3 methods temperature increasing: material self-friction/electric heating/conduction oil heating
- material discharge 2 methods: temperature controller automatic release/mixing time control
- the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment
- the barrel covers and three direct links made of cast aluminum
- the bearing chambers with special designs for the lubricating oil injection
- driving motor over current protection design
- PLC touch screen control system can be choosed for the high automatic control requirement
- special designed mixing axis design can avoiding the raw material leaking from the barrel
- mixing paddles after strict balance test

SHR HIGH-SPEED MIXER

TypeVolume (L)

Effective
Volume (L)

Mixing time
(min/batch)

Rotate speed
(r/min)

Motor
(Kw)

Capacity
(kg/hour)

SHR-5A536-815001.110
SHR-10A1076-81500320
SHR-25A25206-815005.550
SHR-50A50356-10750/15007/11100
SHR-100A100756-10650/130014/22200
SHR-200A2001506-10475/95030/42400
SHR-300A3002256-10430/86040/55500
SHR-500A5003758-12330/66055/75800

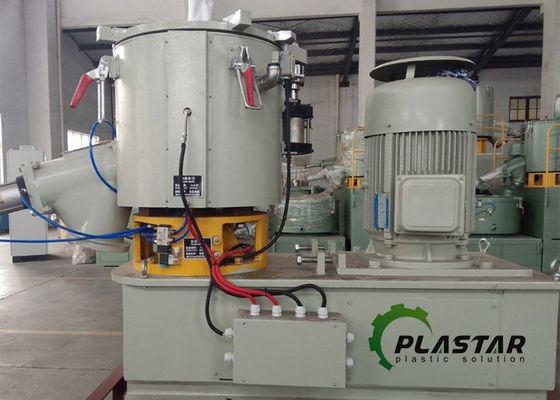

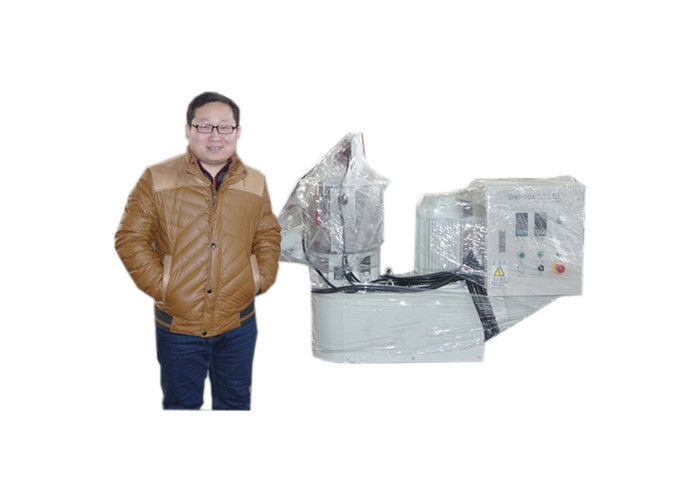

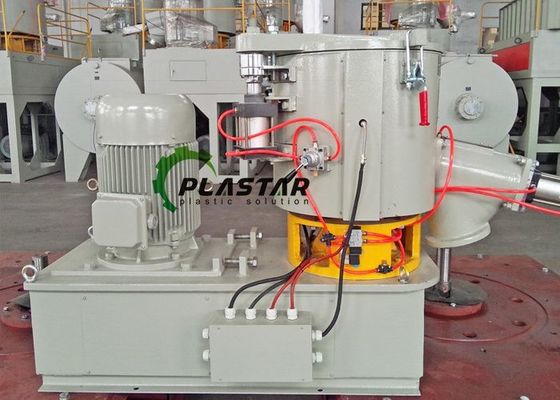

Machine pictures for reference:
10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine 0
10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine 1
