Product Details:
Payment & Shipping Terms:
|
| Capacity: | 0.5-1KG/H | Winding Effect: | Good Winding |
|---|---|---|---|
| Whole Line Size: | 2500mm L * 500mm W * 1700mm H | Filament Dia.: | 1.75-3mm |
| Plastic Processed: | PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA | Automatic Grade: | Automatic |
| Main Motor Brand: | Siemens Beide | Machine Color: | Customized |
| Screw Design: | Single Screw | Voltage: | Customized |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support,Video Technical Support | Condition: | New |
| Usage: | 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making | Inverter: | ABB |
| Screw Diameter: | 25mm |
PETG PLA ABS Lab Mini Small 3D Printer Filament Extruder Machine
Description:
1. Our company has been in 3D filament machine manufacturing field for more than 6 years, which means we have rich experience in this machine. No matter you are fresh or professional, we can assist you sove almost all your troubles you may face in the production of 3D filament.
2. Our machine tested all kinds of 3D printer filament suitable plastic material. And we can help you to test the material.
3. Our machine can make PLA, ABS, PETG,PEI, PVA, PU etc. We have many videos for you to study.
4. Our engineer can come your factory to instal the machine and train your workers.
5. We have cooperated with many big compaines and colleagues, and our machine is the leader in this area.
Product Details:
| 1 Name: single screw extruder(PSD25) | ||
| Screw diameter: | Φ25mm; | |
| L/D: | 25; | |
| Screw material: | 38CrMoAlA; | |
| Surface treatment of screw: | Hard chromium plating treatment; thickness of chromium coating: 0.5~0.6mm; hardness: HRC65. | |
| Compression ratio: | C/R=3.0 BM screw; The design of screw is applicable to special rollers of ABS PLA plastic granule. |
|
| Heater: | The stainless steel heater with the internal surface receiving polished finish and the external surface of stainless steel. | |
| Heating section and power: | 3 heating sections; 1.8kw/section; | |
| Cooling of the roller: | Air cooling of high efficiency and low noise | |
| Cooling section and power: | 3 cooling sections, 120w/section; | |
| Reduction box: | Hard tooth surface reduction box with spiral speed reduction transmission. | |
| ZLY173 hard tooth surface helical tooth cylindrical gear reduction box, selection of 20CrMn materials, malcomising;the tooth surface receives gear-grinding machining with the noise lower than 75Db and centrifugal lubrication of machine oil. | ||
| Bearing brand: | Japan "NSK" | |
| Driving motor: | AC "TECO" frequency converter, Wannan motor | |
| Control system: | ||
| Cabinet form: | The configuration of insulating plate and ventilating system conforms to the standard of CE certification. | |
| Setting of functional panel: | Power indicator, display of main current/voltage, temperature display of the heating area, heating starting/stoping button, display of screw rotating speed, operation, operation panel, pulling speed control, coiling speed control, plastic wire diameter display alarm button, emergency button. | |
Product Description:
| No. | Name | Quantity |
| 1 | Extruding machine | |
| 2 | die mold | 1 |
| 3 | Water tank | 1 |
| 4 | Laser diameter measurement | 1 |
| 5 | Winding machine | 1 |

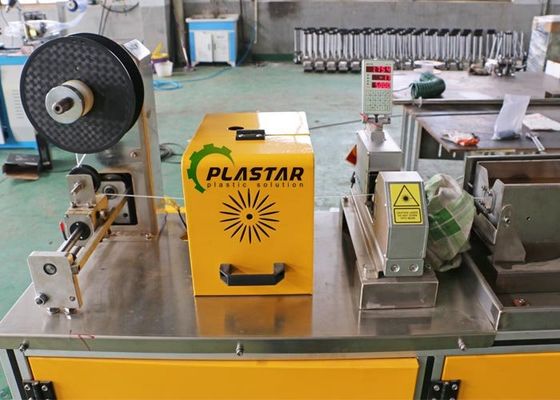

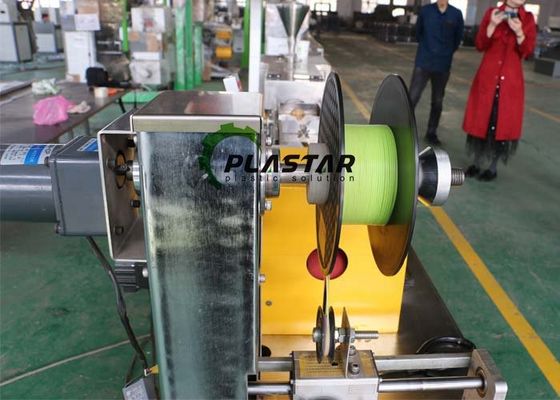

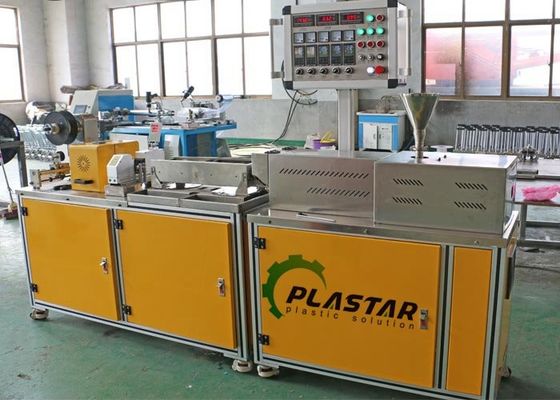

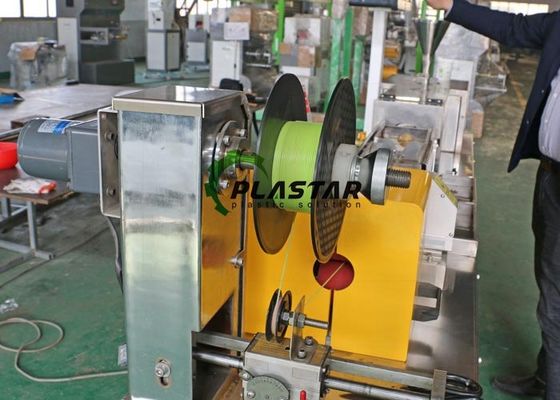

Our filament extrusion line pictures for reference:
