6 Cavity PVC Corner Bead Profile Extrusion Making Machine

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  6 Cavity PVC Corner Bead Profile Extrusion Making Machine

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: PL65
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: dollar 28000-39000$/set
Packaging Details: Wood package+wood pallet+stretch film package
Delivery Time: 30-50working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/year
Detailed Product Description
Raw Material: PVC Powder+Caco3+additives Final Product: PVC Corner Bead, Angle Bead, Guard Bead
Output: 8 In 1, 6 In 1, 4 In 1 Main Extruder Model: SJZ51/105, SJZ65/132 Conical Twin Screw Extruder
Extrusion Speed: 18-24m/min Main Motor Brand: Siemens Beide
Color: Customized Application: Protecting&decorating The Edges Of Tile
Punching Hole Shape: Square/ Round/ Triangle Or Customized Screw Design: Double-screw,conical Twin Screw
Condition: New Automatic Grade: Automatic
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: Can Be Customized
Plastic Processed: PVC Dimension(l*w*h): 25M*2.5M*3.5M
Warranty: 12 Months Inverter: ABB
Processing Type: Extruding Machine,Extrusion Machine Temperature Controller: Omron
High Light:

24m min pvc profile making machine


PLASTAR 280 kg h corner bead machine


PLASTAR pvc profile making machine

6 Cavity Plastic UPVC PVC Profile Corner Bead Extrusion Making Machine

PVC Corner Bead has a wide range of usage, as corner guards, wall protection, stair nosing, hiding screw holes and many more applications around the home and commercial premises.

This pvc corner bead extrusion line is designed for extruding PVC corner bead, angle trim, which is a kind of PVC profile particularly designed for protecting corners of wall, door and window. As a replacement for the traditional methods to repair wall corner, it has been extensively used for construction, decoration, and wall protection. Upon clients' request, we can equip punching, printing, coding or other additional equipment for the PVC profile extrusion line.
PVC beads, PVC L beads, furniture edge banding, etc

Technical Parametes:

Model Mold Max extrusion volume Motor power Heating power
SJSZ51 one mold with 4 cavities 120kg/h 22kw 12kw
SJSZ65 one mold with 6 cavities 280 kg/h 37kw 15kw


The PVC Corner Bead Extrsuion Line is composed by following parts:

No. Item
1 Spring feeder
2 SJZ65/132 Conical Twin Screw Extruder
3 Extrsuion mold
4 Vacuum Calibration Table
5 Haul off machine
6 Punching & cutter machine
7 Stacker
8 Crusher&pulverizer for recycling the waste

Machine pictures for reference:

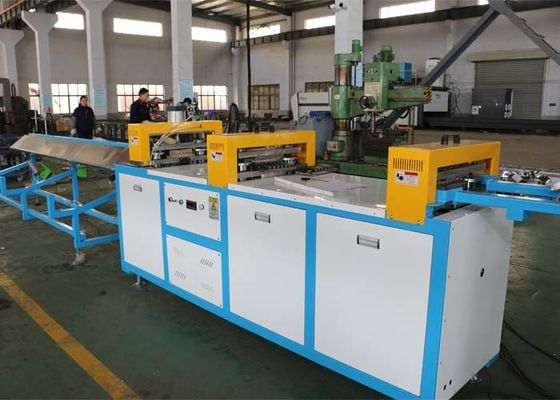

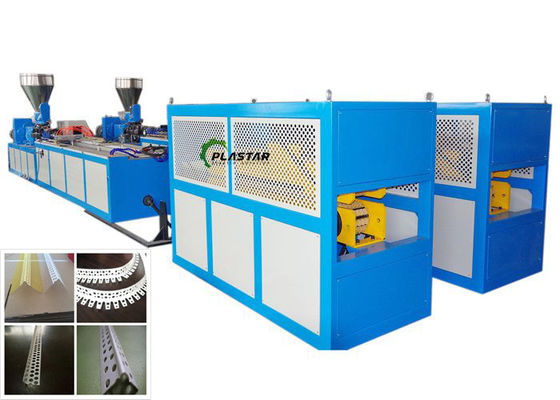

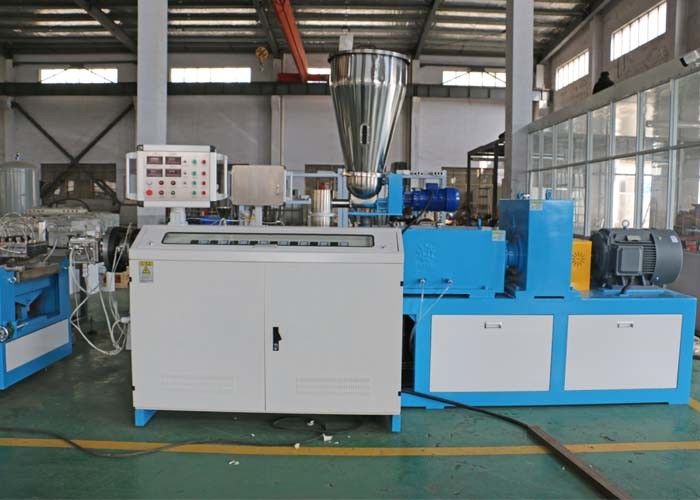

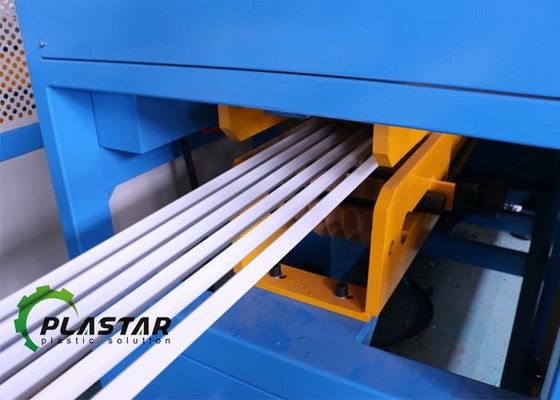

6 Cavity PVC Corner Bead Profile Extrusion Making Machine 0

6 Cavity PVC Corner Bead Profile Extrusion Making Machine 1

6 Cavity PVC Corner Bead Profile Extrusion Making Machine 26 Cavity PVC Corner Bead Profile Extrusion Making Machine 3
