1000MM Plastic PP Hollow Sheet Extrusion Line PC Polycarbonate

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  1000MM Plastic PP Hollow Sheet Extrusion Line PC Polycarbonate

Product Details:
Place of Origin: CHINA
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: SJ120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 3100-45000$/set
Packaging Details: Wood pallet+stretch film
Delivery Time: 10-40 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Detailed Product Description
Screw Design: Single-screw Die Type: T Type, Thickness Adjustable
Dimension(L*W*H): 2100mm *4-10mm Core Components: PLC, Engine, Gearbox
Capacity: 120 - 580 Kg/h Sheet Wide: 1000-2600mm
Thickness: 2-12mm Warranty: 1 Year
High Light:

1000MM pp hollow sheet extrusion line

,

PLASTAR 1000MM pvc profile production line

,

PLASTAR pp hollow sheet extrusion line

1000-2600MM Plastic PP Polypropylene PC Polycarbonate Hollow Sheet Extrusion Line Machine
Double Wall/Triple Wall/Multiwall Polycarbonte PC PP Hollow Grid Sheet Extrusion machine
This extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow
sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and stacker etc.

Characteristics of vacuum calibrator:
1. High quality mould steel or high strength Al-Mg Alloy
2. Special harden treatment and non-sticky coating on the surface.
3. Independently controlled vacuumize device and temperature controlling system.
4. Consist of vacuum sealing edge device.
The technology of hollow sheet die with co-extrusion feed block to get UV+PC+UV, UV+PC hollow sheet can save 30% UV on the surface.

Application:
PP/PE hollow sheet is light and high strength, moisture-proof, good environmental protection and re-fabrication performance and can be used into the reusable container, packing case, clapboard, backing plate and culet.

PC hollow sheet is widely used in construction sunroof in buildings/halls/shopping center/stadium/public places of entertainment and public facility; Ring shield of bus station/garages/pergolas/corridors; noise barriers for highways and urban elevated road

PP/PE Hollow Sheet Extrusion Line Technical DataPP/PE Hollow Sheet Extrusion Line Technical DataPC Hollow Sheet Extrusion Line Technical Data
Extruder modelSJ-120,SJ-100Extruder modelSJ-120,SJ-100
Sheet width2100mm, 1220mmSheet width2100mm, 1220mm
Sheet thickness2-8mm, 2-8mmSheet thickness2-8mm, 2-8mm
Max capacity350kg/h,200kg/hMax capacity350kg/h,200kg/h
Main motor power132kwMain motor power132kw

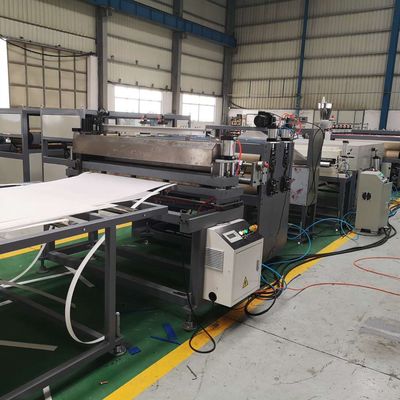

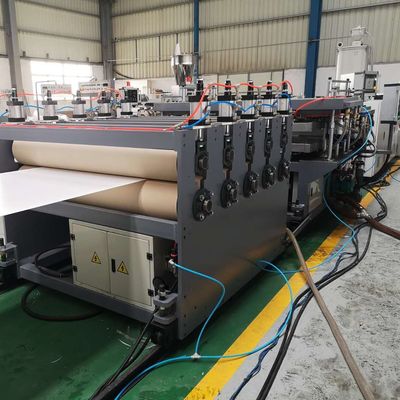

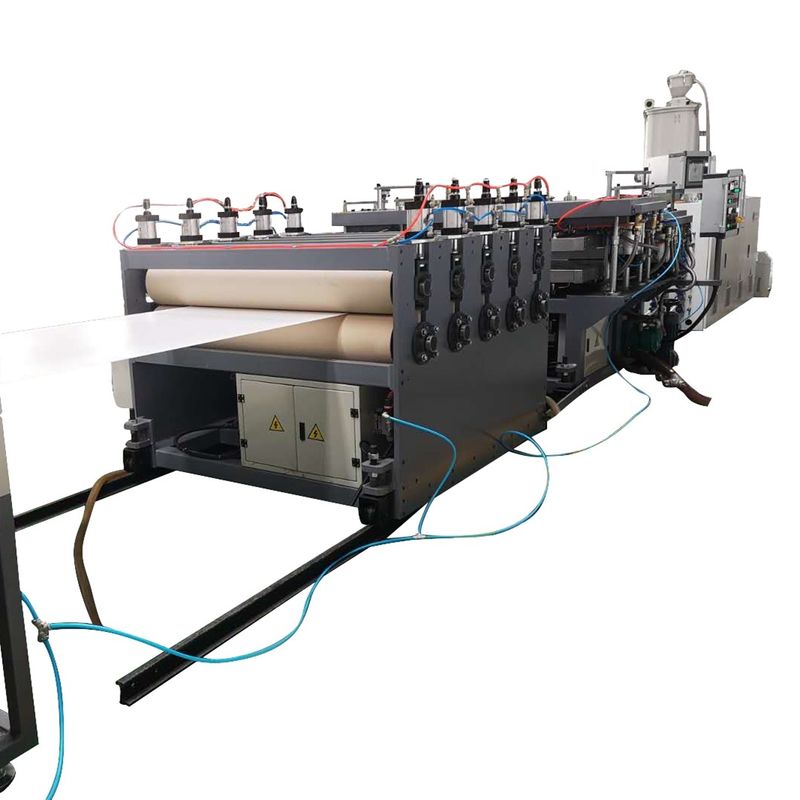

Machine pictures for reference:
1000MM Plastic PP Hollow Sheet Extrusion Line PC Polycarbonate 01000MM Plastic PP Hollow Sheet Extrusion Line PC Polycarbonate 11000MM Plastic PP Hollow Sheet Extrusion Line PC Polycarbonate 21000MM Plastic PP Hollow Sheet Extrusion Line PC Polycarbonate 3Machine pictures for reference:
OTHER RECOMMONDED PLASTIC SHEET EXTRUSION LINES:
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 350-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.
4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, bathtube, etc.
5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 500kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.
6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.
7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 300kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.
9. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

10. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
