Product Details:
Payment & Shipping Terms:
|
| Filament Dia.: | 1.75-3mm | Plastic Processed: | PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA |
|---|---|---|---|
| Main Motor Brand: | Siemens Beide | Machine Color: | Customized |
| Screw Design: | Single-screw | Voltage: | Customized |
| Automatic Grade: | Automatic | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support,Video Technical Support | Warranty: | 1 Year |
| Usage: | 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making | Inverter: | ABB |
| Screw Diameter: | 45mm | Winding: | Neat Winding |
| High Light: | 25kg H plastic filament extruder,PLASTAR 3D Printer 2.85 mm extruder,PLASTAR 0.02mm plastic filament extruder |
||
SJ45 20-25kg/h Low Tolerance +-0.02mm Plastic Filament Extruder
Products Description
1. PSD-45 3D printer filament extrusion line is suitable for the production different materials, such as PLA, ABS, PETG, PA, PC, WPC, PEEK, PAEK, PEKK, PEI, PPS and so on.
2. The machine can be heated up to Max. 400 ° C, suitable for the vast majority of 3D printing materials.
3. The extrusion line is controlled by PLC and PID control, the tolerance can be controlled within ±0.03mm.
4. The specially designed cooling system ensures even shrinkage of the filament during high speed production.
5. The extrusion line is equipped with two-way laser caliper with data feedback.

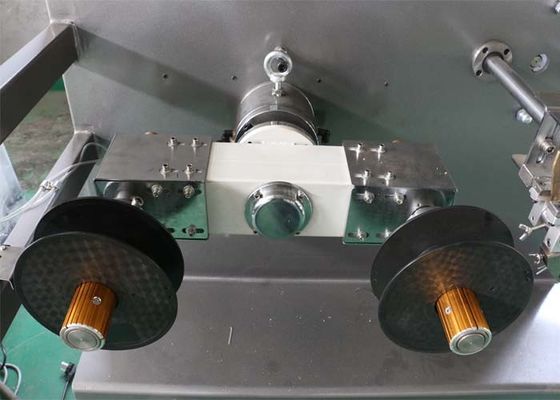

6. The winder is controlled by servo motor and PLC .
---Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.
We have different machine models with different capacity for your choice:
| Model | Power | Diameter | Capacity | Tolerance | Material |
| PL-25 | 2.2 KW | 1.75mm-3mm | 3-5Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
This Filament Extruder Machine is composed by following parts:
| No. | Item | Qty |
| 1 | Hopper Dryer | 1 Set |
| 2 | Single Screw Plastic Extruder | 1 Set |
| 3 | Die | 2 Sets |
| 4 | Hot & Cooling water cooling tank | 2 Sets |
| 5 | Horizontal storage rank | 1 Set |
| 6 | Backstop machine | 1 set |
| 7 | Haul-off machine | 1 set |

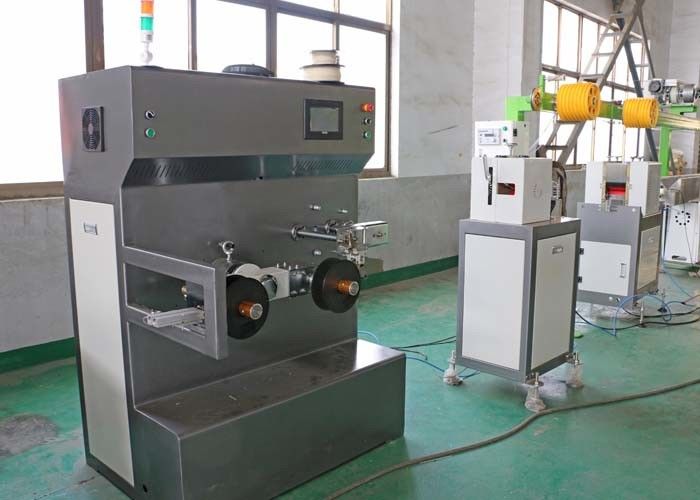

| 8 | Winding machine | 1 set |

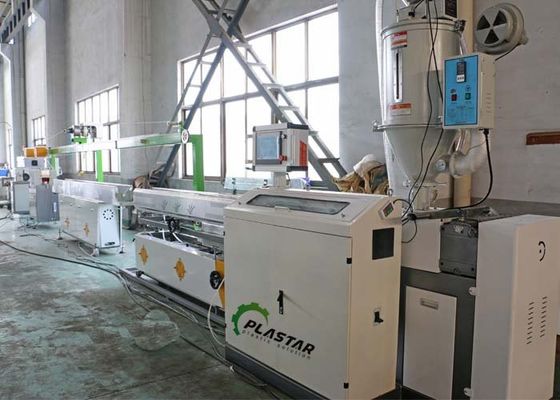

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:
