Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Double Disc Automatic Winding Machine For 3D Printing Filament Extrusion Production

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: PL45
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Dollar 16000-31000$/set
Packaging Details: Wood package
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100sets/year
Detailed Product Description
Tolerance: ±0.01mm-0.03mm Capacity: 1-25KG/H
PLC: Siemens Whole Line Size: 12.5L*1.1W*2.3H(meter)
Filament Dia.: 1.75-3mm Plastic Processed: PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA
Main Motor Brand: Siemens Beide Screw Design: Single-screw
Voltage: Customized Automatic Grade: Automatic
Warranty: 1 Year Winding: Neat Winding
High Light:

25KG H automatic winding machine

,

PLASTAR 3mm filament winding machine

,

PLASTAR automatic winding machine

PLASTAR Double Disc Winding Machine for 3D Printing Filament Extrusion Production

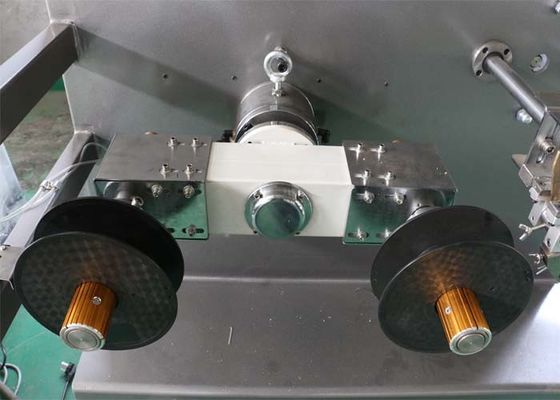

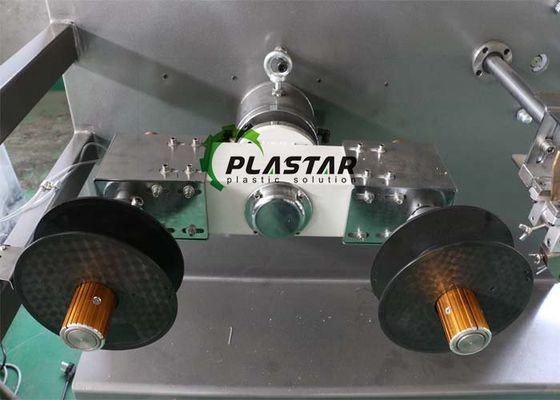

--Our 3D printer filament line is equipped with our 5th generation new type double disc winding machine, this new generation rotatable double disc winding machine is designed and produced by our company, it is our 5th generation winding machine, compared with traditional single disc or old type double disc winding machine, the new double disc Auto winding machine can shorten the spool changing time to not more than 25 sec.



This new design winding machine can really save time and improve efficiency, when spool 1 is full, it can automatically rotates into spool 2 position, at same time, empty spool 2 will be in the postion of spool 1, the workers cut the filament, and feed the filament into spool 2, the winding machine keeps working when the worker takes the full spool out.

Double Disc Automatic Winding Machine For 3D Printing Filament  Extrusion Production 0



---Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.

Double Disc Automatic Winding Machine For 3D Printing Filament  Extrusion Production 1

---The application of 3D printer filament

Based on the analysis of the characteristics and performance of different structures of 3D printers and consumables, we have a clear understanding of the working principle of 3D printers. We believe that plastic materials will remain the mainstream
material for 3D printing for a long time.





We have different machine models with different capacity for your choice:

Model Power Diameter Capacity Tolerance Material
PL-25 2.2 KW 1.75mm-3mm

3-5Kg/h

+0.02mm PLA ABS HIPS PA PET Nylon PP
PL-30 4 KW 1.75mm-3mm 10-15Kg/h +0.02mm PLA ABS HIPS PA PET Nylon PP
PL-45 7.5 KW 1.75mm-3mm 20-25Kg/h +0.02mm PLA ABS HIPS PA PET Nylon PP



This Filament Extruder Machine is composed by following parts:

No. Item Qty
1 Hopper Dryer 1 Set
2 Single Screw Plastic Extruder 1 Set
3 Die 2 Sets
4 Hot & Cooling water cooling tank 2 Sets
5 Horizontal storage rank 1 Set
6 Backstop machine 1 set
7 Haul-off machine 1 set
8 Winding machine 1 set

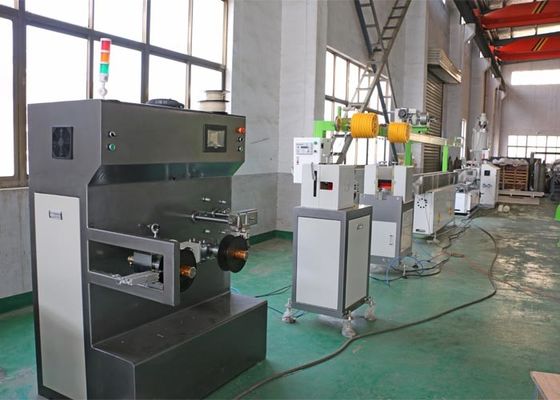

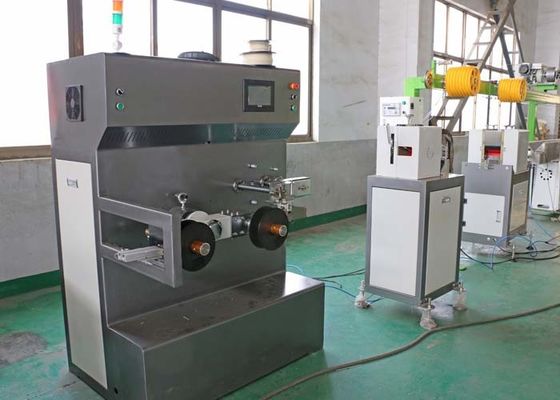

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:

Double Disc Automatic Winding Machine For 3D Printing Filament  Extrusion Production 0Double Disc Automatic Winding Machine For 3D Printing Filament  Extrusion Production 3Double Disc Automatic Winding Machine For 3D Printing Filament  Extrusion Production 4
