| Tolerance: | ±0.01mm-0.03mm | Capacity: | 1-25KG/H |
|---|---|---|---|
| PLC: | Siemens | Whole Line Size: | 12.5L*1.1W*2.3H(meter) |
| Filament Dia.: | 1.75-3mm | Plastic Processed: | PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA |
| Main Motor Brand: | Siemens Beide | Machine Color: | Customized |
| Screw Design: | Single-screw | Voltage: | Customized |
| Automatic Grade: | Automatic | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support,Video Technical Support | Warranty: | 1 Year |
| Usage: | 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making | Inverter: | ABB |
| Screw Diameter: | 45mm | Winding: | Neat Winding |
| High Light: | PLASTAR 3d printer filament making machine,5kg H pla extruder machine,5kg H 3d printer filament making machine |
||
ZHANGJIAGANG PLASTAR ABS PLA Plastic 3D Printer Filament Extruder Making Machine
PLA TPU 3D Printer Filament Extruder Machine
3D Printing Filament Extruder/ Extruding Machine has high output and and performance. It can produce ABS/PLA filament with diameter of 1.75 and 3mm. We use laser gauge in the 3D Printer Plastic Filament extruding line to measure the diameter and control the tolerance within 0.03mm.
Advantages:
1. Large capacity: Max capacity can reach 22kg/h ( 18kg/h for PETG)
2. Easy operation: humanization design
3. Stable working performance: Tolarance 0.02mm
4. Good winding performance: Most can be perfect.
5. 9 years experience, customers all around the world.
Suitable material: PLA, PLA+, ABS, PCL, PETG, PA, PC, PCL, PEI, PVA, PEEK etc, for some special material, we can test for you.
Filament diameter: 175mm, 2.85mm
Filament tolarance: 0.02mm.
Filament capacity: 16-22kg/h
| Model | Power | Diameter | Capacity | Tolerance | Material |
| PL-25 | 2.2 KW | 1.75mm-3mm | 3-5Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
--Our 3D printer filament line is equipped with our 5th generation new type double disc winding machine, this new generation rotatable double disc winding machine is designed and produced by our company, it is our 5th generation winding machine, compared with traditional single disc or old type double disc winding machine, the new double disc Auto winding machine can shorten the spool changing time to not more than 25 sec.
This new design winding machine can really save time and improve efficiency, when spool 1 is full, it can automatically rotates into spool 2 position, at same time, empty spool 2 will be in the postion of spool 1, the workers cut the filament, and feed the filament into spool 2, the winding machine keeps working when the worker takes the full spool out.
--Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.

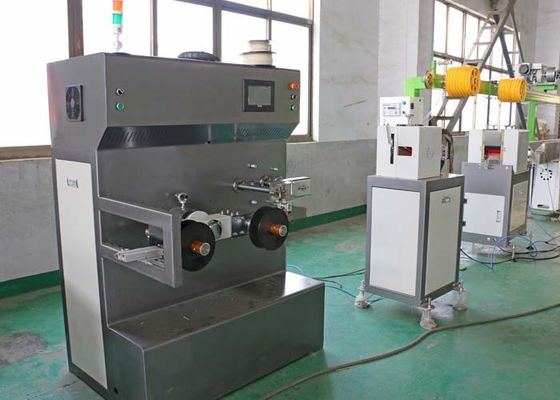

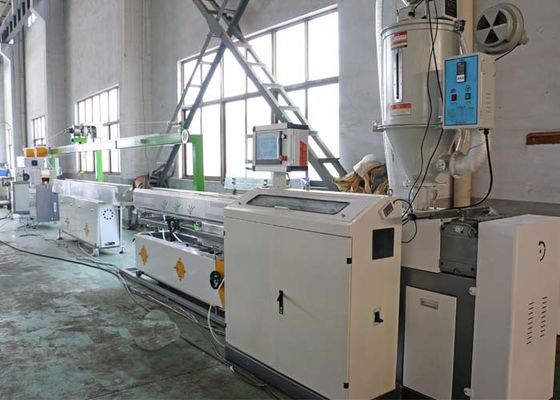

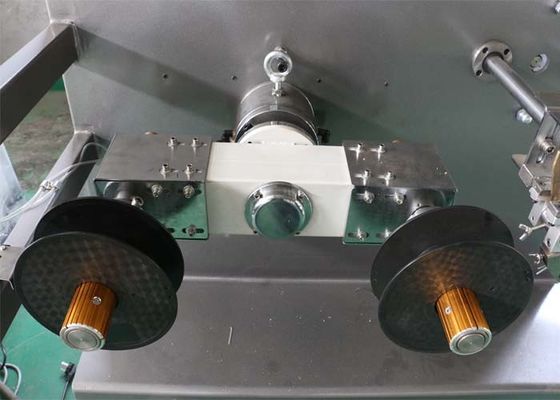

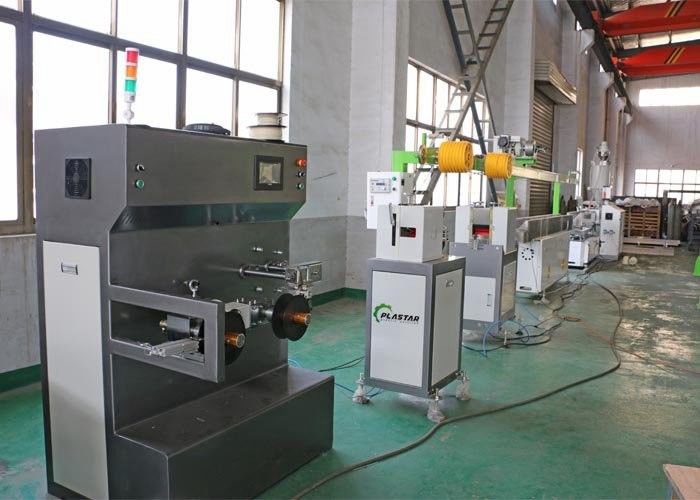

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:
