Product Details:
Payment & Shipping Terms:
|
| Usage: | 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making | Whole Line Size: | 12.5L*1.1W*2.3H(meter) |
|---|---|---|---|
| Filament Dia.: | 1.75-3mm | Plastic Processed: | PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA |
| Main Motor Brand: | Siemens Beide | Machine Color: | Customized |
| Screw Design: | Single-screw | Voltage: | Customized |
| Automatic Grade: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support,Video Technical Support |
| High Light: | PEEK PEI 3D Printer Filament Extruder Machine,PLASTAR 3d filament extrusion line,PLASTAR CE 3D Printer Filament Extruder Machine |
||
High Temperature PEEK/PEI/Carbon Fiber 3D Filament Extrusion Line
Our machine advantages:
1. Big capacity compared with other suppliers using the same model.
2. Lowest tolerance: +/- 0.03 mm. even +/- 0.02 mm.
3. Both 1.75 and 3.00mm filament diameter.
4. It can process multi-materials like PLA ABS PET PA HIPS .
5. Easy operation: Delta PLC full-auto controlling system.
6. Stable quality: we have not received any passive talks from our customers.
7. Oversea service: installation, staff training and technical support.
High Quality:
Touch Screen PLC Control System
Touch screen: Siemens
Features:
1. Set all parameters by this screen(speed of screw, speed of raw material feeding, speed of cutting, temperature of the barrel, control the pressure)
2.Display all parameters
3d printer filament making machine 3d printing filament extruder/ extruding machine
We have different machine models with different capacity for your choice:
| Model | Power | Diameter | Capacity | Tolerance | Material |
| PL-25 | 2.2 KW | 1.75mm-3mm | 3-5Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
This Filament Extruder Machine is composed by following parts:
| No. | Item | Qty |
| 1 | Hopper Dryer | 1 Set |
| 2 | Single Screw Plastic Extruder | 1 Set |
| 3 | Die | 2 Sets |
| 4 | Hot & Cooling water cooling tank | 2 Sets |
| 5 | Horizontal storage rank | 1 Set |
| 6 | Backstop machine | 1 set |
| 7 | Haul-off machine | 1 set |
| 8 | Winding machine | 1 set |
---Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.

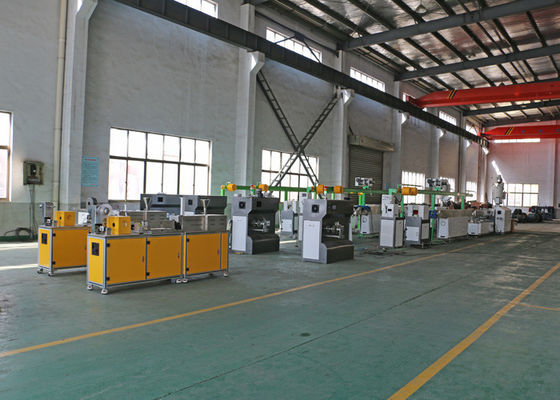

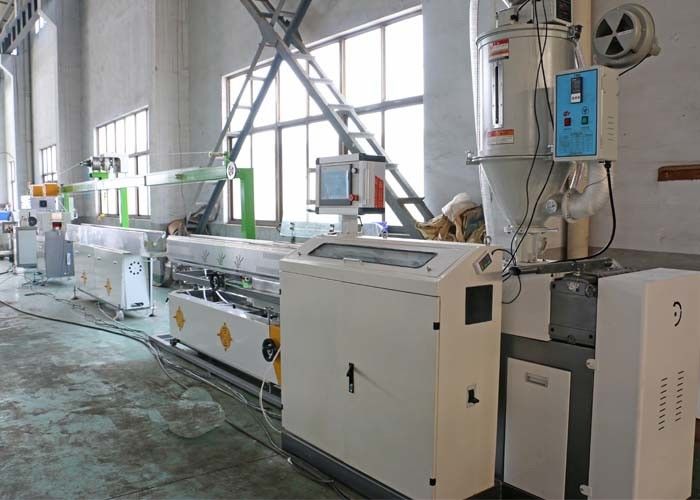

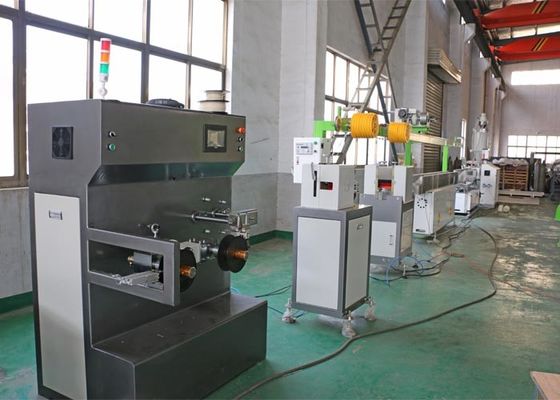

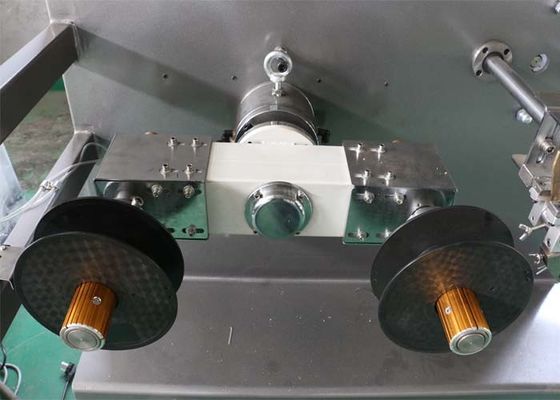

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:
