Product Details:
Payment & Shipping Terms:
|
| Filament Dia.: | 1.75-3mm | Tolerance: | ±0.01mm-0.03mm |
|---|---|---|---|
| Plastic Processed: | PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA | Capacity: | 1-25KG/H |
| PLC: | Siemens | Whole Line Size: | 12.5L*1.1W*2.3H(meter) |
| Main Motor Brand: | Siemens Beide | Machine Color: | Customized |
| Screw Design: | Single-screw | Voltage: | Customized |
| Automatic Grade: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support,Video Technical Support |
| High Light: | 1.75 mm 3D Printer Filament Extruder Machine,PLASTAR 1.75 mm mini filament extruder,15Kg h 3D Printer Filament Extruder Machine |
||
1.75 mm 3D Printer Filament Extruder Machine 3D Printer PLA ABS

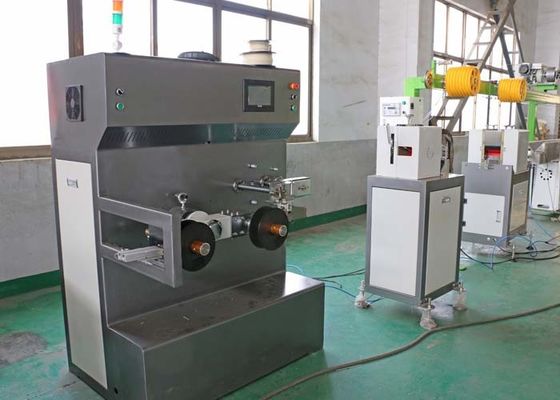

--Our 3D printer filament line is equipped with our 5th generation new type double disc winding machine, this new generation rotatable double disc winding machine is designed and produced by our company, it is our 5th generation winding machine, compared with traditional single disc or old type double disc winding machine, the new double disc Auto winding machine can shorten the spool changing time to not more than 25 sec.
This new design winding machine can really save time and improve efficiency, when spool 1 is full, it can automatically rotates into spool 2 position, at same time, empty spool 2 will be in the postion of spool 1, the workers cut the filament, and feed the filament into spool 2, the winding machine keeps working when the worker takes the full spool out.
--Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.
We have different machine models with different capacity for your choice:
| Model | Power | Diameter | Capacity | Tolerance | Material |
| PL-25 | 2.2 KW | 1.75mm-3mm |
3-5Kg/h |
+0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
This Filament Extruder Machine is composed by following parts:
| No. | Item | Qty |
| 1 | Hopper Dryer | 1 Set |
| 2 | Single Screw Plastic Extruder | 1 Set |
| 3 | Die | 2 Sets |
| 4 | Hot & Cooling water cooling tank | 2 Sets |
| 5 | Horizontal storage rank | 1 Set |
| 6 | Backstop machine | 1 set |
| 7 | Haul-off machine | 1 set |
| 8 | Winding machine | 1 set |

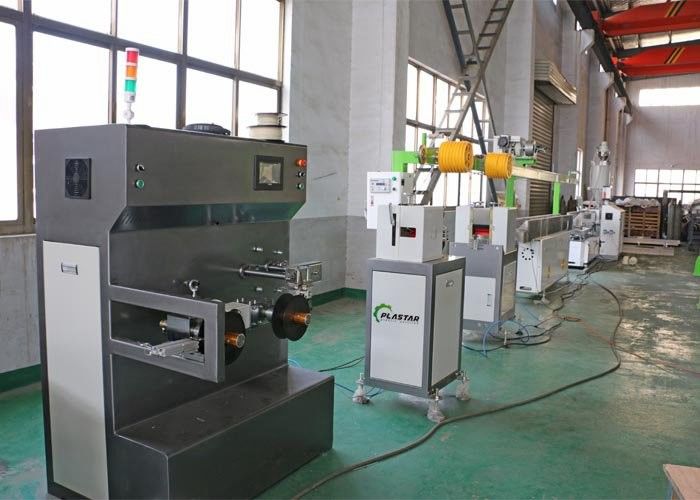

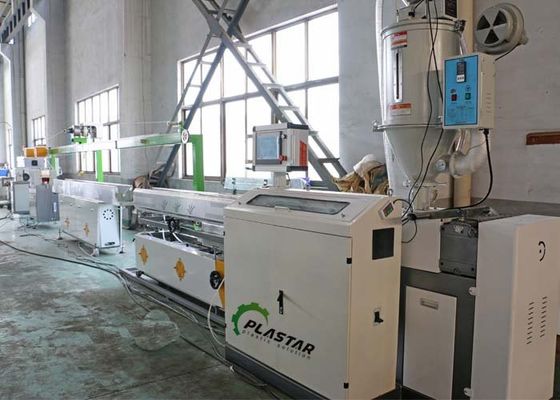

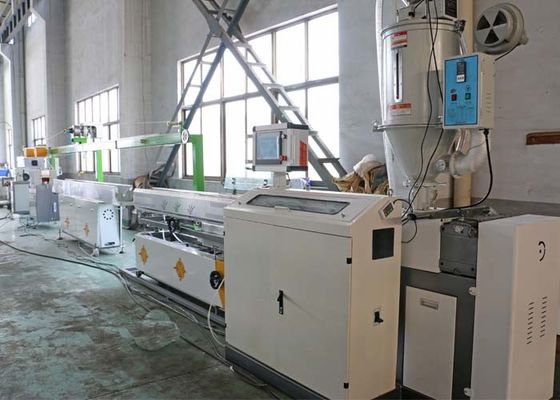

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:
