Product Details:
Payment & Shipping Terms:
|
| Plastic Processed: | PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA | Usage: | 3D Filament Extrusion |
|---|---|---|---|
| Tolerance: | ±0.01mm-0.03mm | Capacity: | 1-25KG/H |
| PLC: | Siemens | Whole Line Size: | 12.5L*1.1W*2.3H(meter) |
| Filament Dia.: | 1.75-3mm | Main Motor Brand: | Siemens Beide |
| Screw Design: | Single-screw | Warranty: | 1 Year |
| Inverter: | ABB | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support,Video Technical Support |
| High Light: | 12kg h 3D Printer Filament Extruder Machine,PLASTAR 3d filament extrusion line,ABS PLA 3D Printer Filament Extruder Machine |
||
3D Printer Filament Extruder Machine ABS PLA Filament Extrusion Line
3D Printer Filament Extruder Making Machine is mainly used to produce high quality ABS/PLA/PETG/PEEK/PEI/Carbon fiber filament for all brands of 3D printers. This 3D Printer Filament Extruder/ Extruding Machine has high output and and performance. It can produce filament with diameter of 1.75 and 3mm. We use laser gauge in the 3D Printer Plastic Filament extruding line to measure the diameter and control the tolerance within ±0.02mm.
Features of 3D printing filament extrusion machine:
Professional screw design for ABS,PLA,PVA,HIPS,PC. Meet processing with good plasticizing effect and stable extrusion output. Melt pump system could be choose as further enhancing extrusion stability. Special designed forming type and cooling system, keep extremely good roundness for filament under high production speed during cooling. Production speed: 105m/min (OD 1.75mm) 45m/min (OD 3.0mm) OD control accuracy: +/-0.03mm

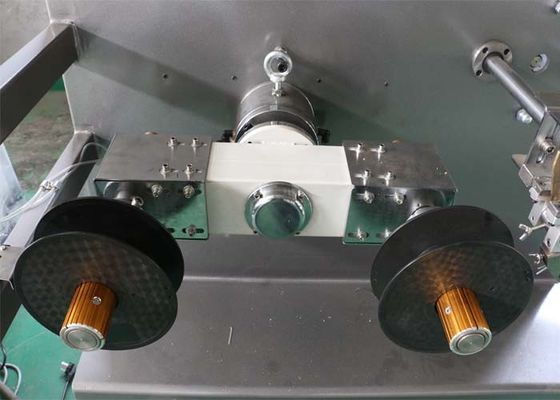

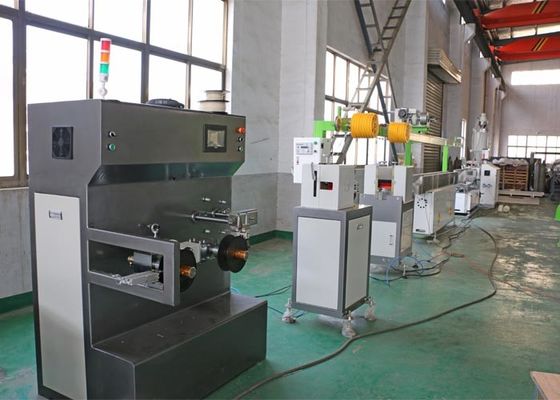

---Our 3D printer filament line is equipped with our 5th generation new type double disc winding machine, this new generation rotatable double disc winding machine is designed and produced by our company, it is our 5th generation winding machine, compared with traditional single disc or old type double disc winding machine, the new double disc Auto winding machine can shorten the spool changing time to not more than 25 sec.
This new design winding machine can really save time and improve efficiency, when spool 1 is full, it can automatically rotates into spool 2 position, at same time, empty spool 2 will be in the postion of spool 1, the workers cut the filament, and feed the filament into spool 2, the winding machine keeps working when the worker takes the full spool out.
--Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.
We have different machine models with different capacity for your choice:
This Filament Extruder Machine is composed by following parts:
| No. | Item | Qty |
| 1 | Hopper Dryer | 1 Set |
| 2 | Single Screw Plastic Extruder | 1 Set |
| 3 | Die | 2 Sets |
| 4 | Hot & Cooling water cooling tank | 2 Sets |
| 5 | Horizontal storage rank | 1 Set |
| 6 | Backstop machine | 1 set |
| 7 | Haul-off machine | 1 set |
| 8 | Winding machine | 1 set |

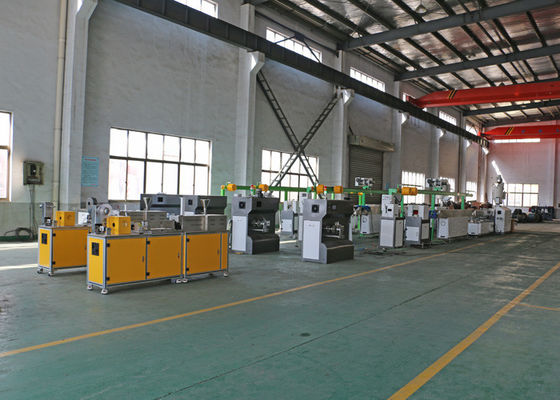

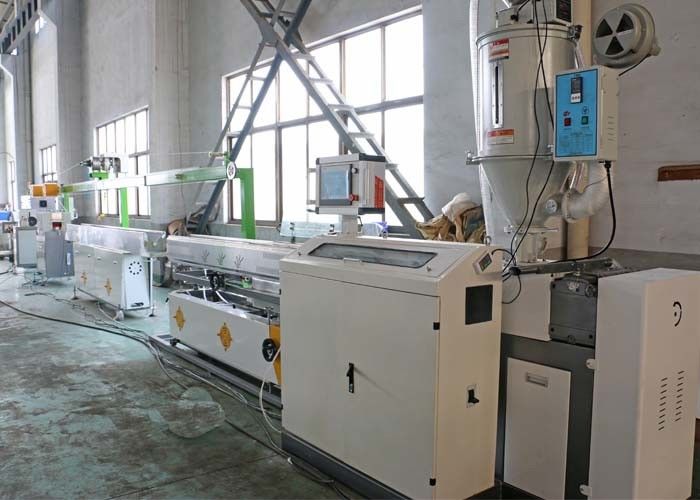

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:
