Product Details:
Payment & Shipping Terms:
|
| Plastic Processed: | PETG | Usage: | 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making |
|---|---|---|---|
| Main Motor Brand: | Siemens Beide | Machine Color: | Customized |
| Filament Dia.: | 1.75-3mm | Screw Design: | Single-screw |
| Voltage: | Customized | Automatic Grade: | Automatic |
| Warranty: | 1 Year | Inverter: | ABB |
| Screw Diameter: | 45mm | Winding: | Neat Winding |
| High Light: | 18kg H 3D Printer Filament Extruder Machine,18kg H 3D Printer Filament Production Line,PLASTAR PETG 3D Printer Filament Extruder Machine |
||
12-18kg/h PETG 3D Printer Filament Extruder Machine Production Line
This machine is mainly used to make all kinds of 3D printer filament for 3D printing.
Advantages:
1. Large capacity: Max capacity can reach 22kg/h ( 18kg/h for PETG)
2. Easy operation: humanization design
3. Stable working performance: Tolarance 0.02mm
4. Good winding performance: Most can be perfect.
5. 9 years experience, customers all around the world.
Suitable material: PLA, PLA+, ABS, PCL, PETG, PA, PC, PCL, PEI, PVA, PEEK etc, for some special material, we can test for you.
Filament diameter: 175mm, 2.85mm
Filament tolarance: 0.02mm.
Filament capacity: 16-22kg/h
5th Generation New Double Disc Winding Machine
---Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.
We have different machine models with different capacity for your choice:
| Model | Power | Diameter | Capacity | Tolerance | Material |
| PL-25 | 2.2 KW | 1.75mm-3mm | 3-5Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |

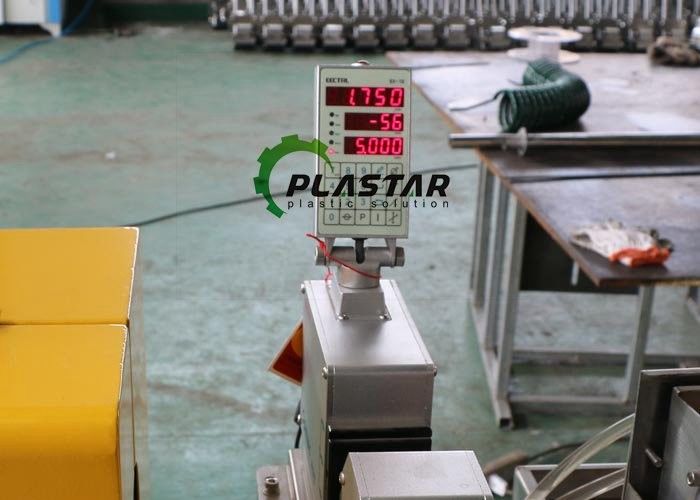

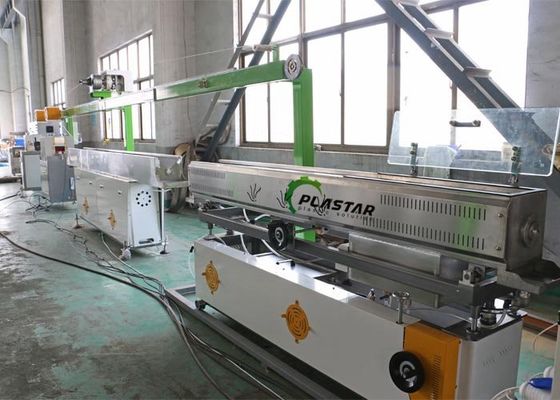

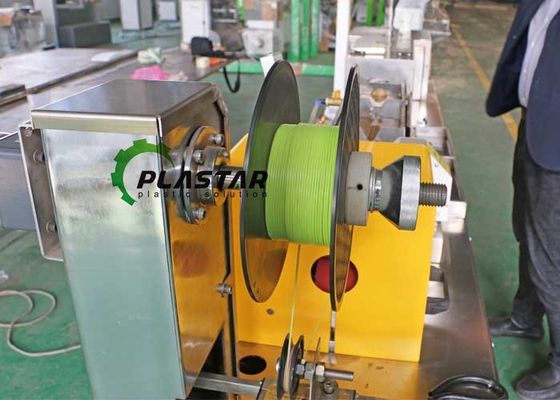

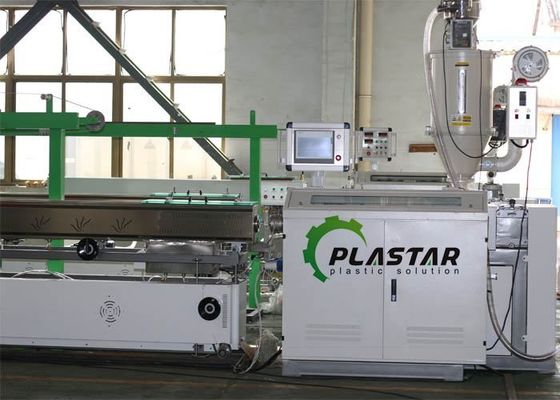

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:
