Product Details:
Payment & Shipping Terms:
|
| Plastic Processed: | TPU PLA ABS PVA Plastic Pellet | Usage: | 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making |
|---|---|---|---|
| Main Motor Brand: | Siemens Beide | Machine Color: | Customized |
| Filament Dia.: | 1.75-3mm | Screw Design: | Single-screw |
| Automatic Grade: | Automatic | Voltage: | Customized |
| Inverter: | ABB | Warranty: | 1 Year |
| Screw Diameter: | 45mm | Winding: | Neat Winding |
| High Light: | PLASTAR 3D Printer Filament Extruder Machine,1.75mm Filament Extrusion Line,ABS PVA 3D Printer Filament Extruder Machine |
||
TPU PLA ABS PVA material 3D printer filament extrusion machine 1.75 filament Extrusion Machine Line
1.75mm/ 3.0mm ABS/PLA /TETG/WOOD/Flexible 3D Printer Filament Extrusion Machine Line Main Technical Parameters:
1 Screw Diameter:25mm
2 L/D: 28/1
3 Tolerance: 0.02mm
4 Capacity: 3-5kg/h
5 Center-Height: 1000mm±50mm
6 Motor (AC): Siemens
7 Main Motor Power: 7.5kw
8 Inverter: Delta (Taiwan)
9 Temperature controller: Omron
10 Dimension of the line: about1800mm*800mm*1500mm
11 Tri-phase Voltage: 380V/50 Hz (can be customized)
12 Total Power:15kw
| Parameter of machine | ||
| 1 | 2kg hopper | 1set |
| 2 | SJ-25 Single screw extruder | 1set |
| 3 | Die head( single filament) | 1set |
| 4 | Water cooling tank with circulation tank | 1set |
| 5 | haul-off unit | 1set |
| 6 | Single shaft Winding unit | 1set |
| 7 | PLC touch screen panel | 1set |
| 8 | Power supply: Triphase 380V/50HZ | |
| 9 | Machine size: 2100*600*1600mm | |
| 10 | Weigth of extruder: 300kg | |
---Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.
We have different machine models with different capacity for your choice:
| Model | Power | Diameter | Capacity | Tolerance | Material |
| PL-25 | 2.2 KW | 1.75mm-3mm | 3-5Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |

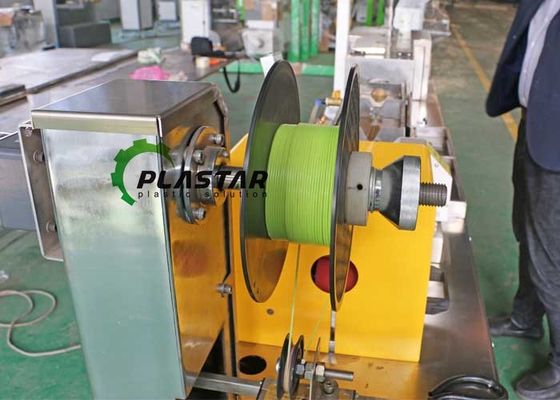

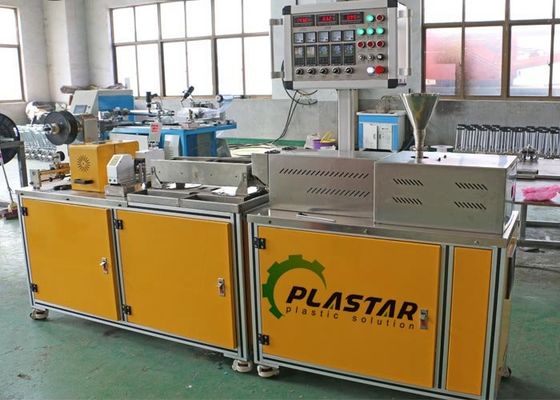

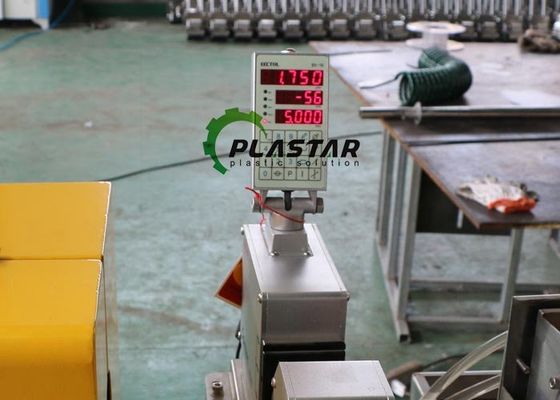

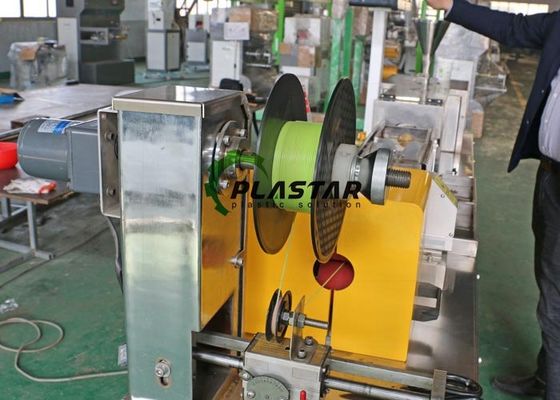

High Precision 3D Filament Extruder Machine pictures for reference:
