Product Details:
Payment & Shipping Terms:
|
| Plastic Processed: | Carbon Fiber | Usage: | 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making |
|---|---|---|---|
| Main Motor Brand: | Siemens Beide | Machine Color: | Customized |
| Filament Dia.: | 1.75-3mm | Screw Design: | Single-screw |
| Automatic Grade: | Automatic | Voltage: | Customized |
| Inverter: | ABB | Warranty: | 1 Year |
| Screw Diameter: | 45mm | Winding: | Neat Winding |
| High Light: | PLASTAR 3d printer filament production line,1.75mm 3d filament extrusion line,ABB 3d printer filament production line |
||
The 3D printer filament extruder is made of special alloy screw, and the temperature can be heated to 400 degrees.
The machine is suitable for PEEK,PEI, Carbon Fiber and other materials.
Machine accuracy up to ±0.02--±0.03mm(depending on material).
Machine main specificaiton:
| No. | Machine name | Qty. |
| 1 | Hopper | 1 |
| 2 | SJ25 single screw extruder | 1 |
| 3 | Cooling tank | 1 |
| 4 | Haul off machine | 1 |
| 5 | Caliper gauge | 1 |
| 6 | Winder | 1 |
---Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.
We have different machine models with different capacity for your choice:
| Model | Power | Diameter | Capacity | Tolerance | Material |
| PL-25 | 2.2 KW | 1.75mm-3mm | 3-5Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |

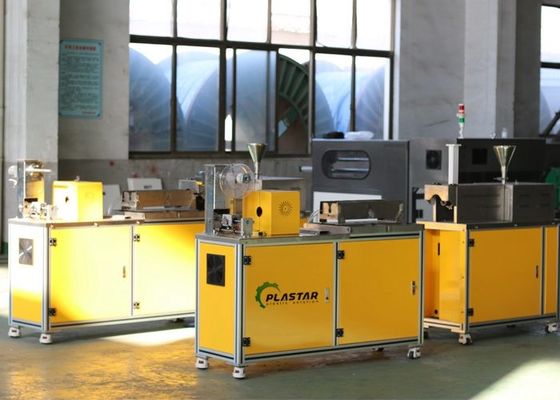

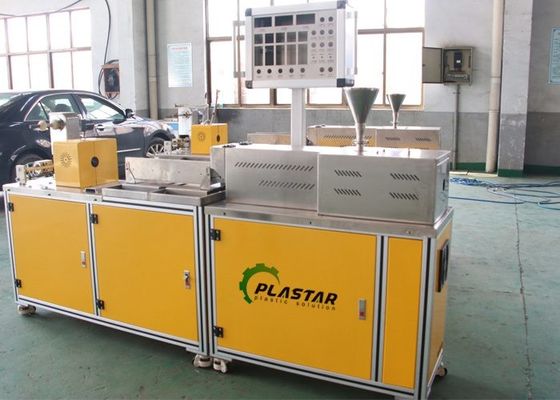

High Precision 3D Filament Extruder Machine pictures for reference:
