Product Details:
Payment & Shipping Terms:
|
| Plastic Processed: | PLA, ABS, PET-G, LDPE, TPE, PA12, HIPS, PP, TPU, PVA | Screw Design: | Single-screw |
|---|---|---|---|
| Screw Diameter: | 45mm | Tolerance: | ±0.02mm-0.03mm |
| Filament Dia.: | 1.75-3mm | Capacity: | 20-25KG/H |
| PLC: | Siemens | Winding Effect: | Good Winding |
| Whole Line Size: | 12.5L*1.1W*2.3H(meter) | Main Motor Brand: | Siemens Beide |
| Usage: | 3D Filament Printing,producing Pla Filament For 3D Printer,3d Printer Filament Making | Inverter: | ABB |
| Highlight: | 20KG H 3d filament extruder machine,20KG H 3d printer filament making machine,PLASTAR ABS 3d filament extruder machine |
||
3D Filament Extruder Machine 3d Printer Abs Filament Making Machine
Application
Mainly use to make all kinds of 3D printer filament.
Raw material
ABS, ABS+, PLA, PLA+, HIPS, PC, PEI, PVA, PC, PCL, PEEK, PETG etc.
Filament diameter
1.75mm, 2.85mm, 3mm
Filament tolerance
±0.02mm
Machine capacity, price, power consumption
Please contact us to get the latest information
We have different machine models with different capacity for your choice:
| Model | Power | Diameter | Capacity | Tolerance | Material |
| PL-25 | 2.2 KW | 1.75mm-3mm | 3-5Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-30 | 4 KW | 1.75mm-3mm | 10-15Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
| PL-45 | 7.5 KW | 1.75mm-3mm | 20-25Kg/h | +0.02mm | PLA ABS HIPS PA PET Nylon PP |
This Filament Extrusion Line is Composed by following parts:
| No. | Item | Qty |
| 1 | Hopper Dryer | 1 Set |
| 2 | Single Screw Plastic Extruder | 1 Set |
| 3 | Die | 2 Sets |
| 4 | Hot & Cooling water cooling tank | 2 Sets |
| 5 | Horizontal storage rank | 1 Set |
| 6 | Backstop machine | 1 set |
| 7 | Haul-off machine | 1 set |
| 8 | Winding machine | 1 set |

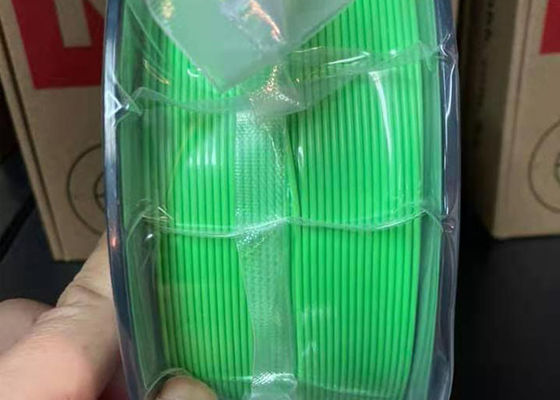

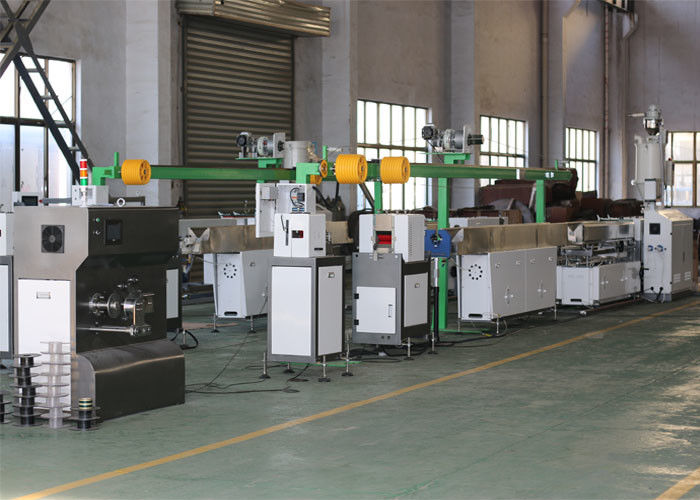

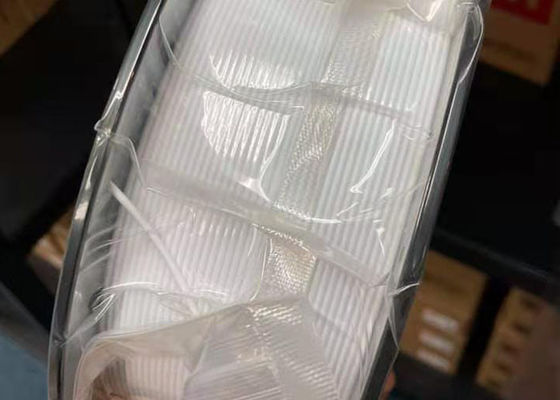

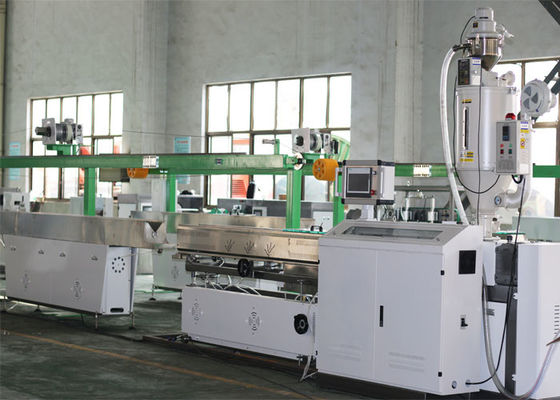

Our filament making extruder machine pictures for reference:
