Product Details:
Payment & Shipping Terms:
|
| Name: | PVC Foam Board Production Line | Raw Material: | PVC+wood+caco3+additive |
|---|---|---|---|
| Twin Screw Type: | Co-rotating Conical Twin-screw | Screw Design: | Double-screw |
| Inverter: | ABB Frequency Controller | Motor: | Siemens Brand |
| Dimension(L*W*H): | 26*3*2.8M | Board Thickness: | 5-50mm |
| High Light: | 50mm PVC Profile Extrusion Machine,PLASTAR WPC Foam Board Production Line,PLASTAR PVC Profile Extrusion Machine |
||
PVC/WPVC Foam Board production line
Decorative Board production line
Product Description
Product Usage:
1.Vinyl flooring
2. ceiling
3.wall board
4. advertisement panel
5. carving
6. furniture
Pattern: marble, carpet, stones, natural scenery, stereo design, etc, customized pattern.
Function and features: sound insulation, soft, easy to clean, comfortable feet feeling, personalized color and design.
Thickness: 3mm-25mm
Co-extrusion layer: 0.5-1.0mm
Equipment list :
| 1 | Automatic weigh and loading system | ||
| 2 | Hot/cooling mixer | SRL500/1000 | |
| 3 | Mixing material storehouse | 4tons | |
| 4 | Spring type of loader | 700Kg/hr | |
| 5 | Twin screw extruder | SJZ80/156 | |
| 6 | Twin screw extruder | SJZ51/105 | |
| 7 | T-die and calibrating system | 1220mm, 915mm | |
| 8 | PUR glue coating system | optional | |
| 9 | 16 roller haul off unit | ||
| 10 | Automatic cutting with dust suciton | ||
| 11 | Tipping stacker |
Specification of PVC foam board:
| Main Dimension | L: 2200 W: 1220mm T: 6-12mm | |
| L: 2440 W: 600mm T: 6-12mm | ||
| L:1200 W: 1200mm T: 6-12mm | ||
| L: 600 W: 600mm T: 6-12mm | ||
| Specification | 1) surface color | Wood, cloth, marble |
| 2) Top layer | PVC film | |
| 3) Material | PVC foam | |
| 4) Acc | Lightgage steel joist or glue | |
| 5) Lacquer | UV | |
| 6) Surface Effect | Smooth,embossed, shinning or matt etc. | |
| 7) Gloss | Matt 30±5%, Semi Gloss 50±5%, High Gloss 70±5% | |
| 8) Production Line | PUR hot lamination | |
| 9) Joint | 4-side T&G with micro bevel or square edge | |
| Distinctive Feature |
♦ Damp-proof and water-proof ♦ Good heat insulation and noise insualation ♦ More stable, energy-saving and healthy ♦ Rot-proof and long life ♦ Natural and environment friendly ♦ small heavy |
|
| Consumer Benefits |
♦ good health for family ♦ long life and easy to exchange ♦ wonderful color |
|
| Installation |
♦ Installation: glue or lightgage steel joist ♦ Precision cutting without edge broken |
|

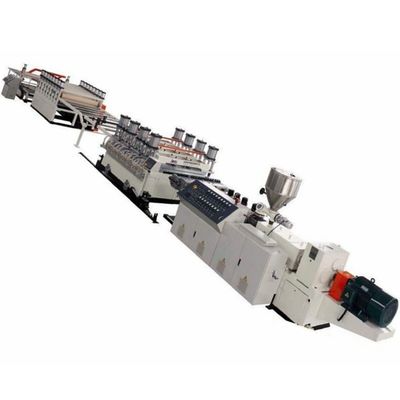

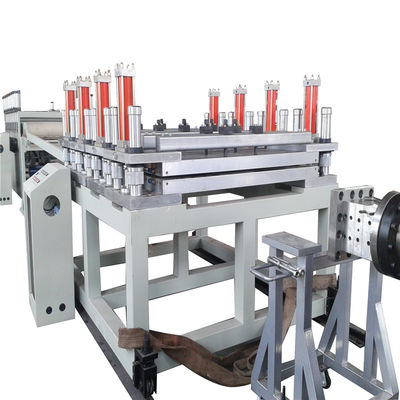

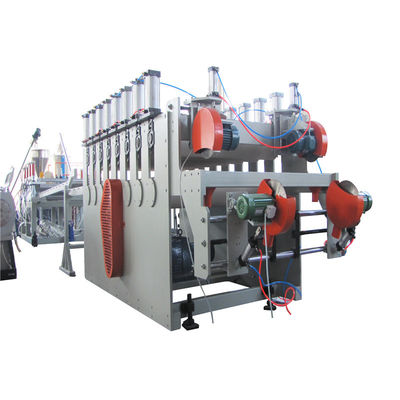

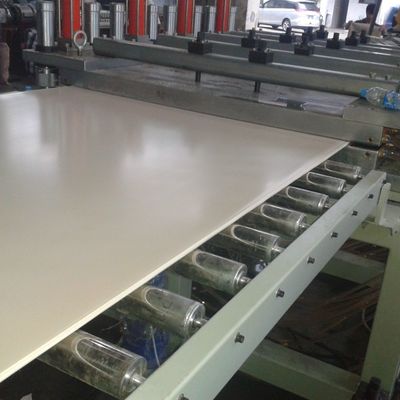

Machine pictures for reference:
