Product Details:
Payment & Shipping Terms:
|
| Raw Material: | PVC+wood+caco3+additive | Name: | PVC Foam Board Production Line |
|---|---|---|---|
| Screw Design: | Double-screw | Twin Screw Type: | Co-rotating Conical Twin-screw |
| Inverter: | ABB Frequency Controller | Motor: | Siemens Brand |
| Dimension(L*W*H): | 26*3*2.8M | Board Thickness: | 5-50mm |
| High Light: | WPC Foam Board Production Line,PLASTAR pvc profile manufacturing machine,PLASTAR 50mm foam board production line |
||
PVC WPC Foam Board Making Machine Extrusion Line Manufacturing Machine
PVC/WPVC Foam Board production line
1,PVC WPC foam board machine production line
PVC/PVC-WPC foam board can be used for furniture & construction function.
used for furniture, it is free foam type. one extruder with T die is ok.
used for construction, it is surface co-extruded with pure PVC no foam, so surface is more stronger than free foam type, it is good used for concrete formworkers.
free foam & surfacce co-extruder (also called skinning foam ) is there one more extruder and division connection part for die. others are same. so it means you invest an skinning foam board line, it also can produce free foam type board.
usually foam board size 4' wide, 8' length, 5-25mm thickness, also some client want MAX to 35mm, or 40mm thickness, it is ok to be manufactured.
2,Machinery introduction
Produce processing:
raw material mixing--feeding---extrusion----forming and cooling----cooling---hauling--cutting
Equipment list :
| 1 | Automatic weigh and loading system | ||
| 2 | Hot/cooling mixer | SRL500/1000 | |
| 3 | Mixing material storehouse | 4tons | |
| 4 | Spring type of loader | 700Kg/hr | |
| 5 | Twin screw extruder | SJZ80/156 | |
| 6 | Twin screw extruder | SJZ51/105 | |
| 7 | T-die and calibrating system | 1220mm, 915mm | |
| 8 | PUR glue coating system | optional | |
| 9 | 16 roller haul off unit | ||
| 10 | Automatic cutting with dust suciton | ||
| 11 | Tipping stacker |
Specification of PVC foam board:
| Main Dimension | L: 2200 W: 1220mm T: 6-12mm | |
| L: 2440 W: 600mm T: 6-12mm | ||
| L:1200 W: 1200mm T: 6-12mm | ||
| L: 600 W: 600mm T: 6-12mm | ||
| Specification | 1) surface color | Wood, cloth, marble |
| 2) Top layer | PVC film | |
| 3) Material | PVC foam | |
| 4) Acc | Lightgage steel joist or glue | |
| 5) Lacquer | UV | |
| 6) Surface Effect | Smooth,embossed, shinning or matt etc. | |
| 7) Gloss | Matt 30±5%, Semi Gloss 50±5%, High Gloss 70±5% | |
| 8) Production Line | PUR hot lamination | |
| 9) Joint | 4-side T&G with micro bevel or square edge | |
| Distinctive Feature |
♦ Damp-proof and water-proof ♦ Good heat insulation and noise insualation ♦ More stable, energy-saving and healthy ♦ Rot-proof and long life ♦ Natural and environment friendly ♦ small heavy |
|
| Consumer Benefits |
♦ good health for family ♦ long life and easy to exchange ♦ wonderful color |
|
| Installation |
♦ Installation: glue or lightgage steel joist ♦ Precision cutting without edge broken |
|

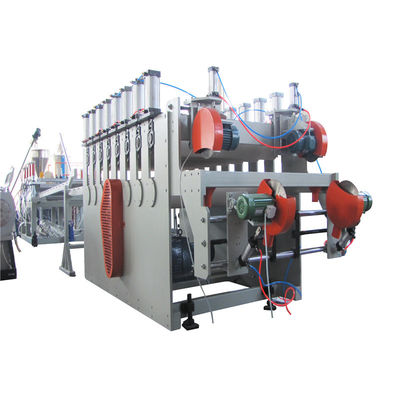

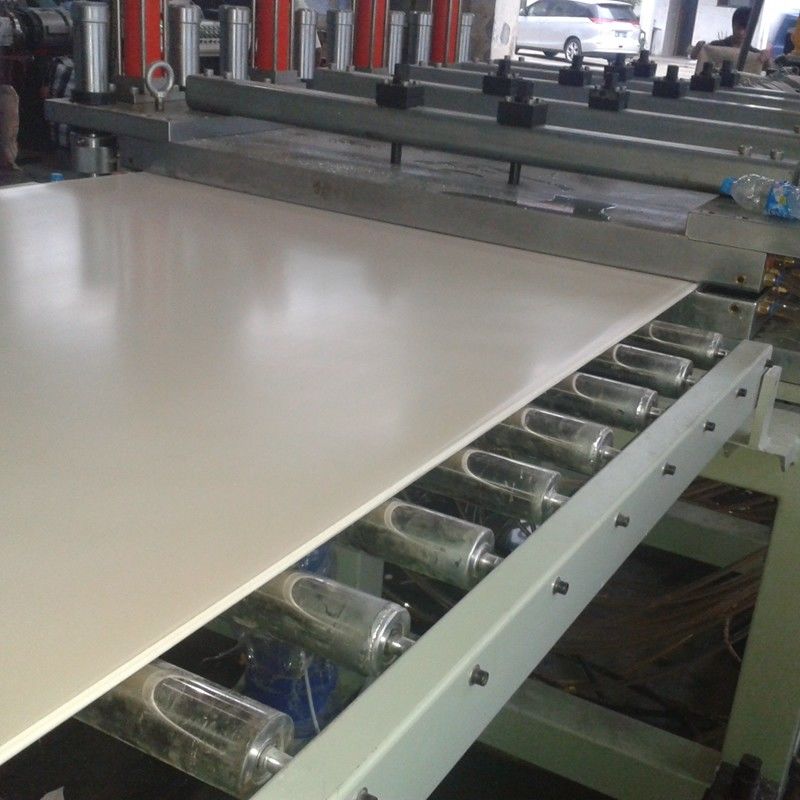

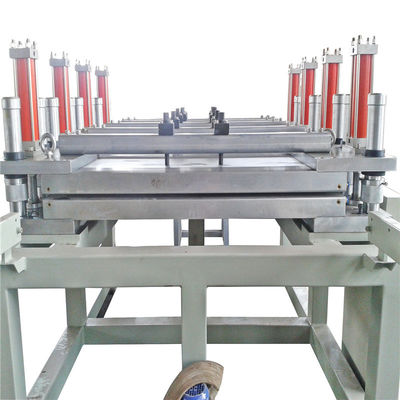

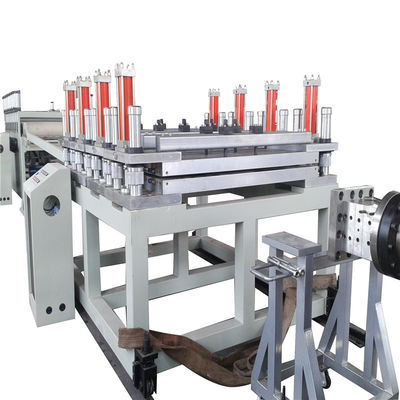

Machine pictures for reference:
