PE PP 120kg/H Plastic Pelletizing Recycling Machine Recycle Plastic Pellets Making Machine

Double Stage PE PP Plastic Granulating Pelletizing Machine/ Recycle Plastic pellets Making Machine

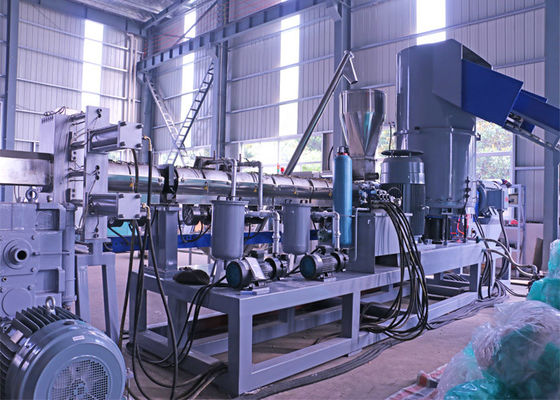

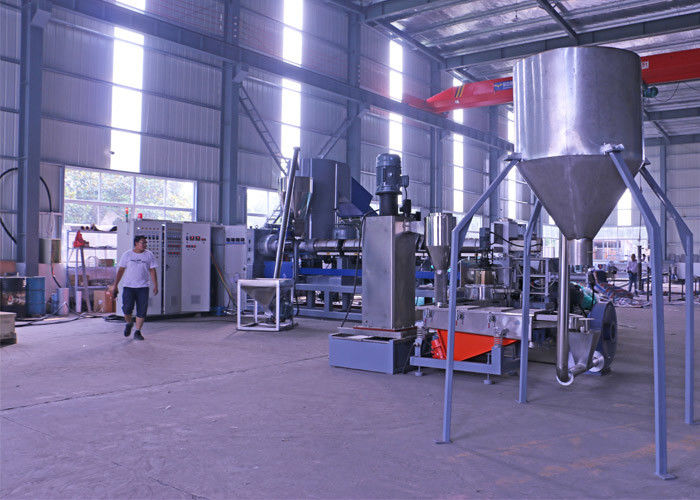

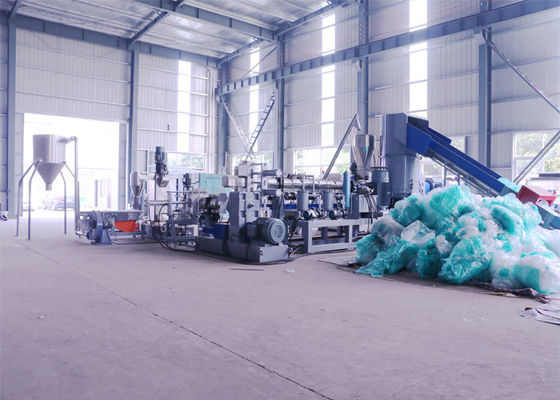

Waste PP PE Film Plastic Pelletizing Production Line

Product Description

PP PE plastic pelletizing production line is used to make pellets from waste plastics, like PP, PE films, or HDPE, PP flakes or PET flakes.

For plastic PP, PE films, we developed a compact pelletizing line for them. Due to the films are very soft and foamed, it’s difficult to be filled into extruder directly, even by force feeder screw, the efficiency is not good, and can be blocked. So, we integrated the most advanced technologies and cost-effective concepts for this kind of machine, we developed the PP, PE film granulating machine.

Features

1. All recycling materials after sorting, crushing, and washing, no need spin-drying, or oven drying, or drying in the sun, can be used to produce. This plastic pelletizing line is applicable for both dry and wet materials.

2. It is full automatic from raw materials crushing, washing, feeding to pelletizing.

3. It takes full advantages of high pressure friction ceaseless temperature increasing system to heat, avoiding continuous heating, which is energy saving.

4. It adopts separate and full automatic power distribution system to ensure motor running under safe and normal condition.

5. Screw and barrel is made of high strengthened carbon steel, which has long using life.

Application

PP PE film plastic pelletizing production line is mainly used to make pellets from waste plastics, like PP, PE films, agricultural films, LDPE stretch films, LLDPE films, PP woven bags, shopping bags, and other soft PP,PE plastics.

Processing capacity is from 100kg/h to 1200kg/h.

Machine pelletizing line models:

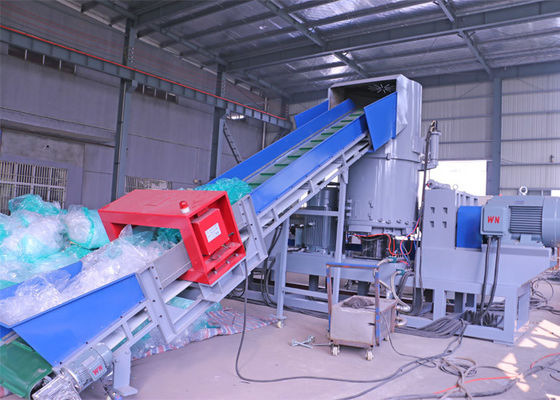

Compactor/agglomerator
The rotatory blades of compactor will cut up incoming scraps. Frictional heating which caused by high speed rotatory blades will heat and let scraps shrinking just below their agglomerating point. Optimal designed guide structure compacts the material and directs it into extruder screw. Crushes, dries and compacts the material which enables a fast and stable feeding from the compactor directly into the extruder.

Pelletizing unit
Water-ring die-face/Strand cutting methods are usually adopted. In water-ring die-face cutting system, the rotary cutting blades will be pneumatically fit completely and closely to the die-face surface to ensure efficient cutting. Rotary speed of the blades is automatically adjusted by module system according to melt pressure at the die face.

Quality first is the tenet of our company.In order to realize this concept, we set up our own mold and CNC workshop, factory quality control personnel strictly control the quality.Also can facilitate the customer to better understand the production process and the physical machine.
Welcome friends from all walks of life to visit our workshop, sincerely hope that we can become partners and long-term cooperation in the future!
