Double Stage PE PP Recycle Plastic Pellets Making Machine 800kg/H

The actual production capacity is even bigger than the supplier promised me, i am very satisfied with this machine, very good. I surely will cooperate with you again in the future.

—— Mr. Joshua Douglas

Good service, prompt delivery

—— Mr. Bond Toth

I am so glad to have this pleasant business cooperation with Plastar,they have done quite amazing job. We communicate so well and they give me very professional help of this new technology,we will start the new business of plastic recycling and we are sure it will be a good result.

—— Mr. Mark harrison

I am very happy to have such good cooperator and shipping is very fast and solve my issue very fast,give big thumb,happy happy~ Very professional and easy to communicate.

—— Mrs. Nancy

I'm Online Chat Now

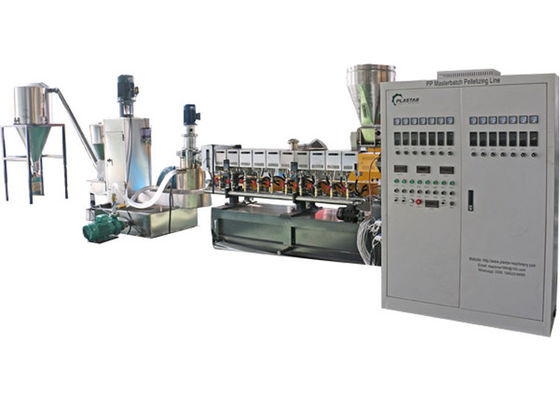

Double Stage PE PP Recycle Plastic Pellets Making Machine 800kg/H

small.img.alt small.img.alt small.img.alt

Large Image :  Double Stage PE PP Recycle Plastic Pellets Making Machine 800kg/H

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: PL500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 25000-85000$
Packaging Details: wood box+wood pallet+stretch film package
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/year
Detailed Product Description
Name: Plastic Recycling Pelletizing Machine Raw Material: PP PE ABS PET HDPE, LDPE Etc
Screw Design: Single Screw Extruder Processing Capacity: 100-1500kg/h
Machine Type: Single Stage Or Double Stage Feeding Type: Force Feeding
Degassing Device: Vacuum Degassing Main Motor Brand: Siemens Beide
Screen Changer: No Stop Automatic Hydraulic Screen Changer After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

Double Stage plastic pellets making machine


Double Stage plastic granules making machine


85mm screw plastic pellets making machine

Product Application
In order to recycle waste plastics, waste plastic need to be washed, dried then melted, plasticized, extruded into strips, cooled by cooling system, and cut into granules by granulator. These granules are further processed into various plastics products by blowing, injection and calendering.

Main Features
1) Single stage extruder and double stage extruders can be used according to user's requirement or material condition.
2) Plastic pelletized polyethylene (PE), polypropylene (PP), polystyrene (PS), polyvinyl chloride (pvc), PET, HDPE, ABS and other engineering plastics or general plastics recycling and granulation.
3) Granules cutting type: water ring face cutting, strip/noodle type cutting and hot cutting;
4) Waste woven bags and waste film can be directly put into the granulation line without crushing.
5) The main engine is equipped with full automatic control cabinet and PLC operating system. It is easy to operate and has stable performance.
6) Low energy consumption, remarkable energy saving effect, high output, mechatronics. Plastic granulation


Main Pelletizing line components:

item value
Plastic Processed HDPE, HDPE/PP, PE/PP, Lldpe, PP, PET
Condition New
Output (kg/h) 150kg/h - 800kg/h
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2020
Warranty of core components 1 Year
Core Components Engine, Motor, Pressure vessel
Place of Origin China
Type Recycling Granulator
Screw Design Single
Screw diameter (mm) 85
Screw Speed (rpm) 28rpm - 34rpm
Voltage customized
Dimension(L*W*H) according to model
Weight according to model
Certification CE ISO SGS
Warranty 1 Year
After-sales Service Provided Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location Egypt, Philippines, India, Mexico, Thailand, Australia, Bangladesh
Showroom Location Egypt, Italy, Philippines, India, Bangladesh
Applicable Industries Building Material Shops, Construction works , Energy & Mining
Application Granules Production
Raw material PP PE Film Bags Material
Usage Pp Pe Film Pelletizing
Final product Small Plastic Pellet
Cutting type Water-ring Die-face
Color Customer Choice
Capacity 180kg/hour-1000kg/hour
Control Electric Control
Service system Buyer's

Machine pelletizing line models:




Speed of Screw Rotation


Center Height



20-80 kg/h

12.5-130 r/min


1000 mm



80-150 kg/h

33-130 r/min 20-120r/min

45kw 55kw

1000 mm



120-280 kg/h

20-120 r/min

75kw 90kw

1000 mm



150-450 kg/h

33.3-110 r/min

110kw 160kw

1000 mm



300-600 kg/h

20-100 r/min


1200 mm



450-700 kg/h

7-80 r/min


1200 mm

Double Stage PE PP Recycle Plastic Pellets Making Machine 800kg/H 0

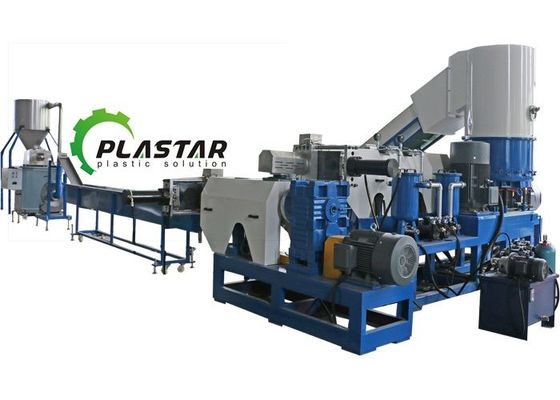

The rotatory blades of compactor will cut up incoming scraps. Frictional heating which caused by high speed rotatory blades will heat and let scraps shrinking just below their agglomerating point. Optimal designed guide structure compacts the material and directs it into extruder screw. Crushes, dries and compacts the material which enables a fast and stable feeding from the compactor directly into the extruder.

Double Stage PE PP Recycle Plastic Pellets Making Machine 800kg/H 1

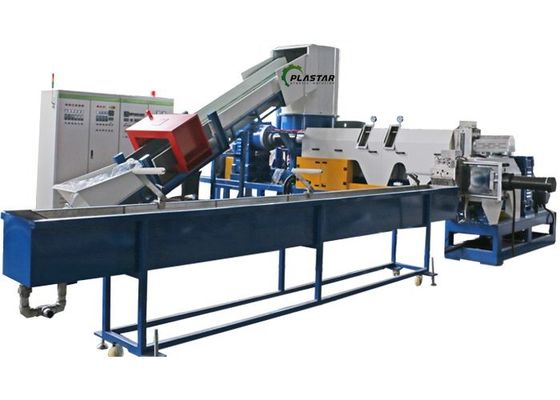

Pelletizing unit
Water-ring die-face/Strand cutting methods are usually adopted. In water-ring die-face cutting system, the rotary cutting blades will be pneumatically fit completely and closely to the die-face surface to ensure efficient cutting. Rotary speed of the blades is automatically adjusted by module system according to melt pressure at the die face.

Double Stage PE PP Recycle Plastic Pellets Making Machine 800kg/H 2

Quality first is the tenet of our company.In order to realize this concept, we set up our own mold and CNC workshop, factory quality control personnel strictly control the quality.Also can facilitate the customer to better understand the production process and the physical machine.
Welcome friends from all walks of life to visit our workshop, sincerely hope that we can become partners and long-term cooperation in the future!
