Plastic PVC Pipe Extrusion Line Double Screw Automatic

Large Image : Plastic PVC Pipe Extrusion Line Double Screw Automatic

Product Details:

Place of Origin:	China
Brand Name:	PLASTAR
Certification:	CE
Model Number:	PL-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Dollar 28000-42000$/set
Packaging Details:	Standard export package
Delivery Time:	30-50 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets/year

Contact Now

Detailed Product Description

Raw Material:	PVC+Caco3+Additives	PVC Pipe:	75-160mm
Application:	Pipe	Screw Design:	Double-screw
Voltage:	Customized	Automatic Grade:	Automatic
Dimension(lwh):	20mx2.5mx2.2m	Plastic Processed:	PVC
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Inverter:	ABB
Color:	Customised
High Light:	Extrusion Twin Screw Pvc Pipe Machine , Double Screw PVC Pipe Extrusion Line , Double Screw PVC Pipe Extrusion Machine

Plastic Extrusion Machine Extruders Pvc Pipe Making Machine

75-160MM UPVC PVC Pipe Extrusion Production Line for Water Drainage Water Supply

PVC pipe extrusion line is mainly used in the production of pressure water pipes, agriculture irrigation, building or city drainage ,Sewage pipes etc. The whole production line consists of Conical twin screw extruder, PVC pipe mould-Vacuum calibration tank-Haul-off machine-Planetary Saw Cutting machine. Producing pipe diameter range: Φ75mm-Φ160mm. And the line can be equipped with comptroller thickening instrument, laser printer, crusher, shredder, pulverizer ,water chiller, air compressor etc. . Advanced design of screws and barrel provides powerful safeguard for the PVC plasticization.

Process Flow: Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Haul-off → Saw Cutter → Belling machine→ Final Product Inspecting &Packing

Detail Specification

Feeder	• To feed material into extruder
Extruder	• World famous brand electrical component such as Siemens, Schneider, ABB etc •High torque gearbox with adopts NSK/SKF bearing; •Siemens/WEG brand motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.
Die head	• 40Cr material •Complete set include extrusion die head, Slotting & water ring type calibration sleeve • Apply to PVC single,dual,Four cavity extrusion.
Vacuum calibration tank	• Include full set of vacuum and water pump • length 4000mm
Haul off	• Upper and lower caterpillar is driven separately by the frequency inverter
Planetary Saw Cutter	• Planetary saw cutter:enter knife by hydraulic drive • Cutting saw: steel alloy, specific for cutting U-PVC pipe. • Equipped cast aluminum compacted block for accurate cutting • Synchronous control
Belling machine	• Blow type: internal air blow and external mould compacted calibration, make U, R and Z type sockets; • Siemens PLC controlling:Automation& Remote Function: for centralized Controlling
Tipping table	•Stainless steel 304 as touching material •Discharge driving by air cylinder

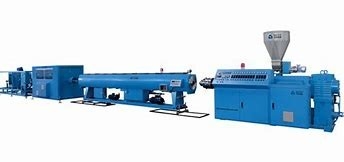

Machine pictures for reference:

Plastic PVC Pipe Extrusion Line Double Screw Automatic 0
