Usage: | Waste Plastic Crusher | Suitable Material: | PVC, PE PPR Pipe, Profile |
---|---|---|---|
Capacity: | 100-800kg/h | Motor Brand: | Siemens Beide |
Inverter: | Optional | Machine Color: | Customized |
Voltage: | Customized | Air Blower & Silo: | Optional |
High Light: | 500kg H plastic pipe crusher,PLASTAR 500kg H waste plastic crusher,PLASTAR 22kw plastic pipe crusher |
High Performance SWP Plastic Profile Pipe Crusher For PP PE PPR PVC Pipes
SWP series plastic pipe/profile crusher machine consists of motor, rotary shaft, blades, frame, working platform, screen mesh, body and discharging door, it is very efficient machine for further recycling the waste plastic pipe or profile, after crushing, you can get 2-8mm small crushed particles.
This SWP series crusher is specially designed to crush PVC pipe, PPR pipes, etc. For smaller diameter, you can put the 6m long pipe directly into this crusher for crushing, we also manufacture PVC milling machine pulverizer as well.
Main Technical Parameters:
Model | SWP300 | SWP400 | SWP500 | SWP600 |
Rotary Knife Diameter(mm) | 400 | 400 | 400 | 400 |
Rotary Knife Quantity (unit) | 3 | 5 | 5 | 10units/2groups |
Rotary Knife rpm(r/min) | 600 | 500 | 500 | 480 |
Static Knife Quantity(unit) | 2 | 2 | 2 | 2x2 |
Sieve Aperture(mm) | φ10 | φ12 | φ12 | φ12orφ14 |
Crushing Capacity(kg/h) | 150-200 | 300-400 | 400-500 | 500-700 |
Power(kw) | 13.2 | 18 | 18-22 | 33 |
Feed Door Caliber(mm | 300x200 | 350x300 | 500x300 | 650x300 |
Weight(kg) | 950 | 1300 | 1500 | 1800 |

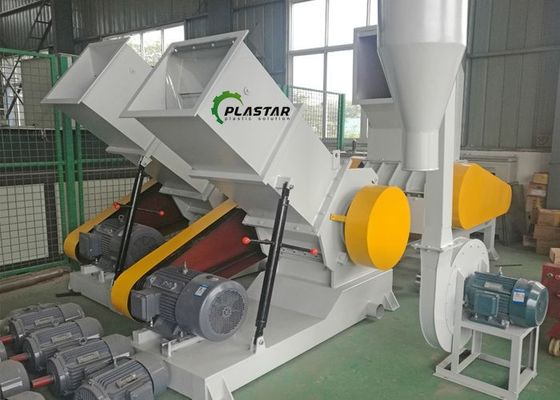

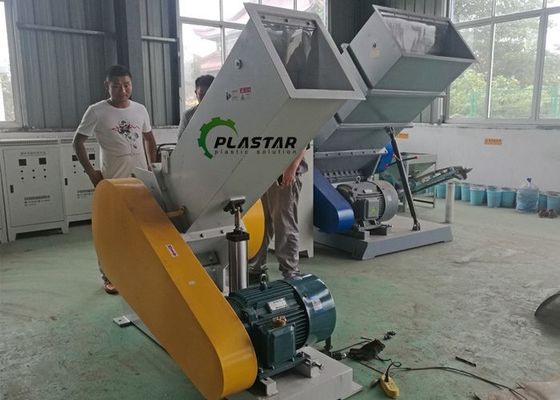

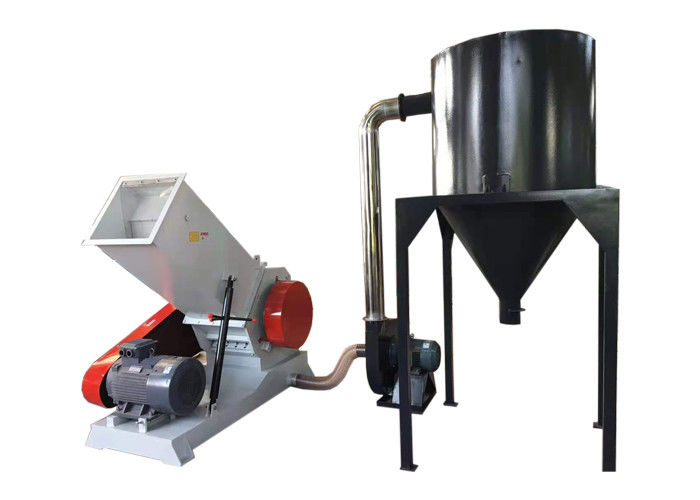

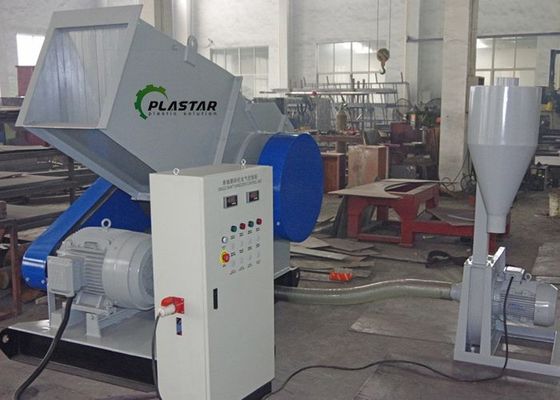

Machine pictures for reference:
