UPVC PVC Plastic Pulverizer Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  UPVC PVC Plastic Pulverizer Machine

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: MF600
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: dollar 6500-12500$
Packaging Details: Wood package+wood pallet+stretch film package
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets/year
Detailed Product Description
Applied Material: PVC UPVC CPVC Pipe/Profile Milling Type: Rotor Blade Type
Blade Material: D2 Motor Brand: Siemens Beide
Vibrating Screen: Yes Dust Collecting Device: Yes
Cooling Type: Water Cooling+air Cooling Final Powder Size: 30-80mesh
Usage: Plastic Powder Making
High Light:

PLASTAR D2 Blade Plastic Pulverizer Machine

,

80mesh pvc pulverizer machine

,

80mesh Plastic Pulverizer Machine

Automatic PVC High Speed Plastic Pulverizer Machine Mill PVC Pulverizer For Pipe Profile

Plastic PVC pulverizer adopts rotor blade design to pulverize waste PVC UPVC CPVC material into power for further usage. For extrusion product making factory, there will lots of waste PVC product during production, to reuse the waste, the customer can use crusher machine to crush waste into small particles, after that, customer can use our MF series high efficient pulverizer machine to further reduce the size of particles into powder, Our pulverizer machine can be widely used for recycling waste PVC ceiling panel, PVC wall panel, PVC profiles, PVC pipes, PVC Corner Bead, PVC residue and so on.

About our MF series PVC pulverizer:

  1. For the motor, we use Siemens Beide brand for standard to guarantee the quality.
  2. The rotation blades and fixed blades can be used for milling around 300T material before changing.
  3. There are totally three water cooling system on the machine, one is for the bearing, one is for the milling room, the left one is for the pipe.
  4. Our machine design has two mouth for filling lubrication oil, one for filling the oil inside the bearing, one for filling outside the bearing, by thus, we can make sure the bearing’s long time usage without problem. We suggest the customer add oil every 24 hours usage, just add little amount oil will be ok.
  5. For the rotation blade seat and blades, we adopt new design, our blades are buckled into the blade seat, as the following picture, so after long time usage, the customer just need to take the old blades out and put the new set in, there is no need to change the blade seat, which can save customer cost.

Our Pulverizer Machine Advantages:

- Adopt new design rotation blades, customer just need to change blades, no need to change the blade seat, just need to do stamic balance after changing new blades, no need to do dynamic balance.
- Equipped with dust collection device to reduce dust pollution.
- Close blower for discharge can reduce labor intensity of worker and save money for clients.

Main Machine Model for Your Choice:

No Item MF-500 MF-600 MF-800
1 Main motor power 37KW 45KW 75KW
2 Capacity (PVC 30-80mesh) 150-180kg/h 250-300kg/h 450-500kg/h
3 Material of conveying pipe 304 Stainless steel 304 Stainless steel 304 Stainless steel
4 Total weight(kg) 1300

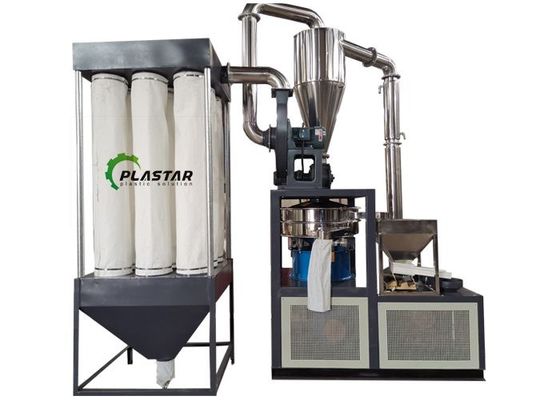

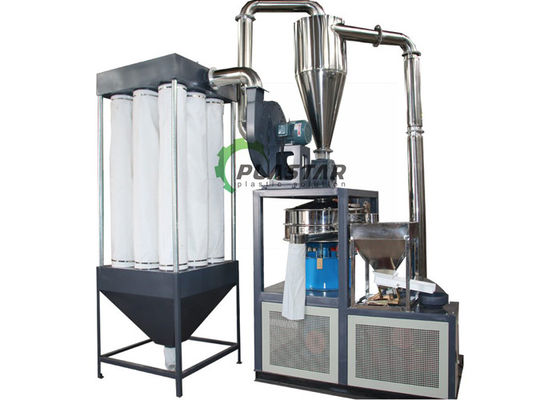

Pulverizer Machine Picture:

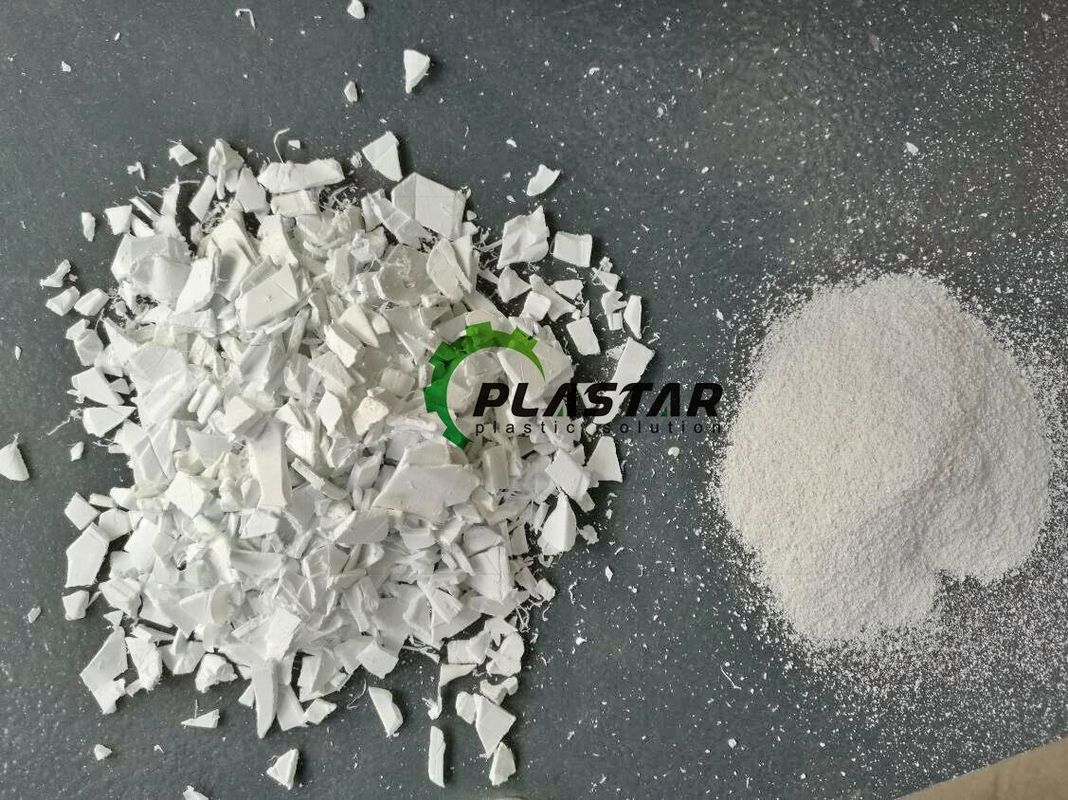

Before and after milling:
UPVC PVC Plastic Pulverizer Machine 0

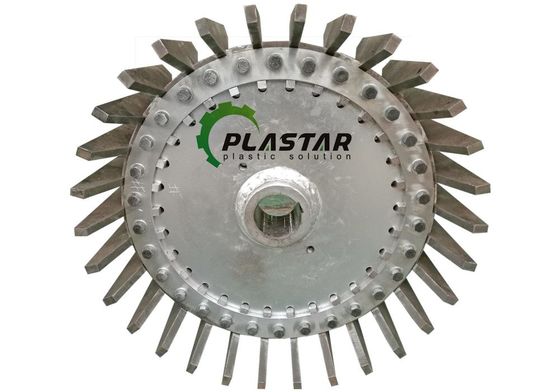

New Design rotation blades:

UPVC PVC Plastic Pulverizer Machine 1

UPVC PVC Plastic Pulverizer Machine 2
