Product Details:
Payment & Shipping Terms:
|
| Milling Type: | Milling Blade Type | Blade Material: | SKD-11 |
|---|---|---|---|
| Cooling Type: | Water Cooling+air Cooling | Applied Material: | PE, LDPE, LLDPE |
| Vibrating Screen: | Yes | Motor Brand: | Siemens Beide |
| Usage: | Rotational Molding Usage Powder | Final Powder Size: | 30-50mesh |
| High Light: | PVC Plastic Pulverizer Machine,PLASTAR 50mesh plastic grinding machine,PLASTAR PE Plastic Pulverizer Machine |
||
1 For the motor, we use Siemens Beide brand as standard to guarantee the quality.
2 The milling blades material are SKD-11, which can improve the service life.
3 There are totally three water cooling system on the machine, one is for the bearing, one is for the milling room, the left one is for the pipe.
4 Our machine design has two mouth for filling lubrication oil, one for filling the oil inside the bearing, one for filling outside the bearing, by thus, we can make sure the bearing’s long time usage without problem. We suggest the customer add oil every 24 hours usage, just add little amount oil will be ok.
Application:
Suitable material includes HDPE LDPE LLDPE PVC PE PET pellet or flakes whose size is not surpass than 12mm ,soft PVC ,HARD pvc and so on.
Final powder mesh size in genneral is between 20~80 mesh.
The powder mesh size is adjustbale.
Features:
1. Compare with same type pulverizer, the capacity of this mode is more higher
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker
4. the cover of main machine can be opened for maintain
5.the cooling of machine have wind cooling and water cooling, it can cool the machine body very good.
Components:
1. Grinding room
2. Main motor
3. Wind-sending pipeline
4. Hopper
5. Shanking feeder
6. Rotundity vibrating sieve
7. Cyclone windbutterfly valve
8. Cyclone seperator
9. Blower
10. Electrical control cabinet
11. Dust catcher.
Main Technical Parameters:
| Item | 400 | 400B | 500 | 500B |
| Pulverizing Room diameter (mm) | φ400 | φ500 | ||
| Disc quantity | 1set (solid cutter) | |||
| Blade quantity (pc) | 20 | 24 | ||
| Main shaft rotating speed (r/min) | 3700 | 3400 | ||
| Main motor power (KW) | 30 | 37 | 45 | 55 |
| Feeding power (KW) | 0.75 | |||
| Blower power (KW) | 0.75 | |||
| Oil pump power (KW) | 0.37 | |||
| Starting method of main motor | Start relief | |||
| Feeding method | Frequency inverter | |||
| Capacity (kg/h) | 200 | 250 | 350 | 400 |
| Overall size (mm) | 1900x1300x2000 | 2000x1900x2300 | ||
| Weight (kg) | 1000 | 1100 | 1800 | 1900 |
| Fineness (mesh) | 20-80 | |||
PE LLDPE Pulverizer Machine Blade Picture:
Our new type milling blades adopt SKD-11 material, the milling capacity is also highly improved since we use more blades compared with traditional design.

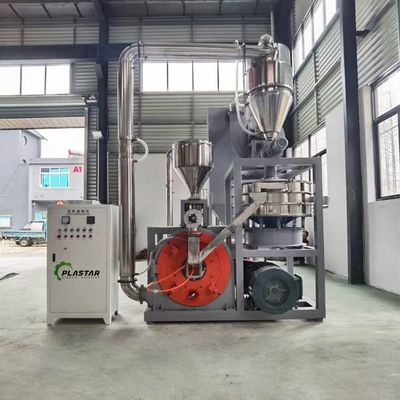

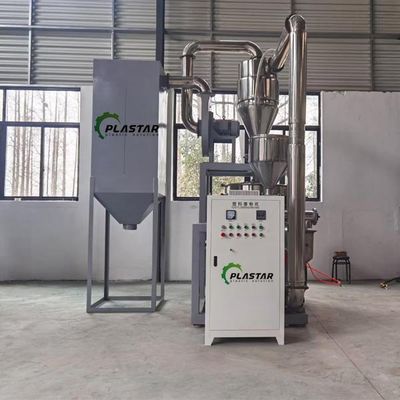

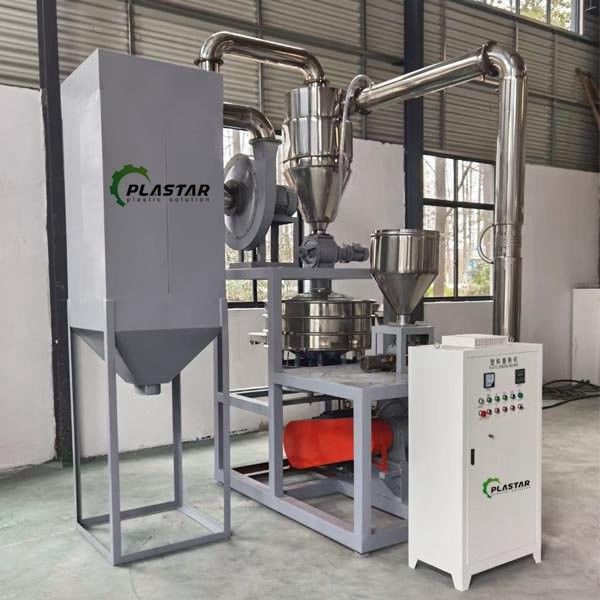

LLDPE PE Pulverizer Machine Picture:
