Product Details:
Payment & Shipping Terms:
|
| Usage: | Rotational Molding Usage Powder | Applied Material: | PE, LDPE, LLDPE, EVA, SPC, Etc |
|---|---|---|---|
| Milling Type: | Milling Blade Type | Motor Brand: | Siemens Beide |
| Dust Collecting Device: | Optional | Blade Material: | SKD-11 |
| Cooling Type: | Water Cooling+air Cooling | Final Powder Size: | 20-80mesh |
| High Light: | SKD 11 Plastic Grinder Machine,20Mesh Plastic Miller,20Mesh Plastic Grinder Machine |
||
Waste Powder PP PE PVC EVA Plastic Miller Plastic Pulverizer Grinder Machine
The brand-new MF series plastic pulverizer belongs to the Disc-type pulverizer series, which disc diameter from 350mm to 800mm.This pulverizer is high speed, precision grinders for the processing of medium hard, impact resistant and friable materials, for example PE,PVC,PP,ABS,PA,EVA,PET,PS,PPS,EPS,PC,Foam,Cow leather and so on.
Advantages
● Save and simple adjustment of cutting gap
● Low drive power and High throughput
● Innovative efficient design
● Easy to maintain and control
● Wide range of accessories
● Automatically regrinding coarse powder
● Dual cooling system
Applications
One of the main fields of use of PLASTAR MF series plastic pulverizer is the pulverization of PE for rotomolding applications. In this process, a screening machine is necessary to ensure the right output size, other applications are the working in line with a shredder and crusher to have a balance and efficient system to handle in house production waste.
1. Model: NP600
2. Milling room dia.: 610mm
3. Main motor power: 90kw
4. Rotation blade rotation speed: 5500rpm
5. Air blower motor: 7.5kw
6. Cooling method: Air cooling, water cooling
7. Pipe material: double layer 304 stainless steel
8. Vibrating screen dia. 1500mm stainless steel round screen
9. Inverter : ABB brand
10. Bearing: imported NSK brand bearing
11. Milling blade material: D2
12. Capacity: 600-650kg/h
13. Final powder size: 30-40mesh
14. Electrical control parts: Schneider brand electrical components
Main Datas:
| Model | 400 | 500 | 600 | 800 |
| Disc Diameter (mm) | 400 | 500 | 600 | 800 |
| Motor Power (kw) | 22-30 | 37-45 | 55 | 75 |
| Aire Blower Power (kw) | 3 | 4 | 5.5 | 7.5 |
| Output (KG/H) | 100-120 | 150-200 | 200-300 | 400-600 |
| Powder Size | 20-120mesh | 20-120mesh | 20-120mesh | 20-120mesh |
PE LLDPE Pulverizer Machine Blade Picture:
Our new type milling blades adopt SKD-11 material, the milling capacity is also highly improved since we use more blades compared with traditional design.

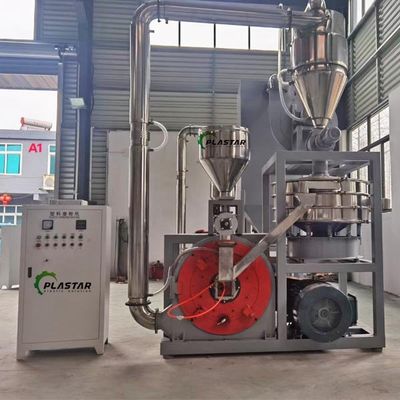

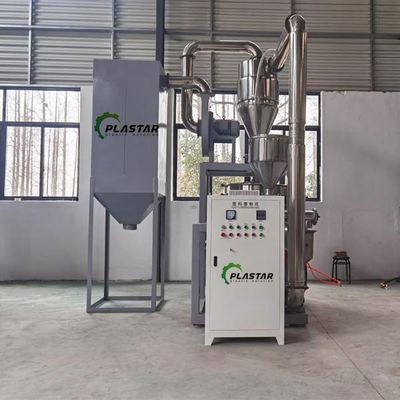

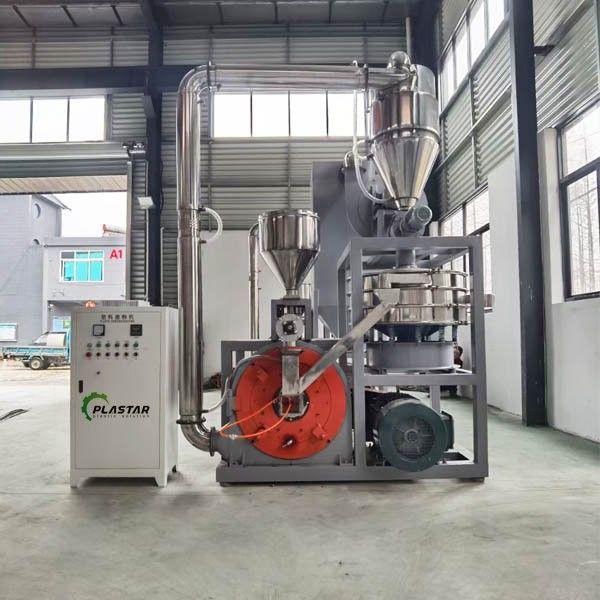

LLDPE PE Pulverizer Machine Picture:
