Product Details:
Payment & Shipping Terms:
|
| Raw Material: | Carbon Fiber, PP, PE, PET, ETFE | Capacity: | 100-1500kg/h |
|---|---|---|---|
| Screw Design: | Double Parallel Twin Screw | Pelletizing Type: | Strand Cutting |
| Inverter: | ABB Brand | Final Product: | Clean Recycled Pellet |
| Type: | Granulating Production Line | Voltage: | 220v/380v/440v(customizable) |
| Condition: | New | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
| High Light: | 180KG H plastic pellets making machine,PLASTAR 240mm pet granules making machine,PLASTAR 240mm plastic pellets making machine |
||
1.Filling & Modification PE,PP,PS,EVA+CaCo3,Talcum Powder,TiO2 PP,PA6,PA66,ABS+Ferrous Powder,Magnetic Powder,Ceramic Powder
2.Blending & Modification PP,PA,PE+EPDM;PE,PP,PS+SBS;PP+NBR;EVA+Silastic;TPR compounds PP+PE;PBT+PET;PA,,PC,CPE,TPU+ABS
3.Masterbatch PE,PP,PS,ABS,EVA,PET+Pigment and additives
4.Functional Masterbatch CB masterbatch: PE,PP,PS,ABS,EVA+carbon Flame retardant masterbatch: PE,ABS,PA PBT+flame retardant&additives Degradative masterbatch: PE,PS+Starch;PP+CaCO3,Talcum powder Safeguard function masterbatch:Masterbatch of heat insulator
5.Glass Fiber(carbon fiber,wood fiber) Reinforcement PE,ABS,AS,PBT,PET,PA,PC,PPS+Carbon fiber PP,ABS,AS,PBT,PET,PA,PC,PPS,PPO+long glass fiber or shot glass fiber
| Mode | Screw Diameter D(mm) |
Screw Length(mm) | L/D | Screw Rater N(r/min) |
Motor Power P(kw) |
Torque T(N.m) |
Torque Level T/N3 |
Capacity Q(kg/h) |
| SHJ-50A | 50.5 | 32-52 | 500 | 45 | 430 | 5.4 | 135-225 | |
| SJH-52B | 51.5 | 210 | 32-64 | 600 | 55 | 438 | 5.5 | 225-250 |
| SJH-52C | 51.5 | 210 | 32-64 | 600 | 75 | 597 | 7.5 | 200-300 |
| SJH-65A | 62.4 | 240 | 32-52 | 400 | 75 | 895 | 6.3 | 180-250 |
| 500 | 75 | 716 | 5.1 | 180-250 | ||||
| SJH-65B | 62.4 | 240 | 32-64 | 600 | 90 | 716 | 5.1 | 200-300 |
| SJH-75A | 71 | 290 | 32-56 | 400 | 90 | 1074 | 5.0 | 225-350 |
| 500 | 110 | 1050 | 4.8 | 250-450 | ||||
| SJH-75B | 71 | 290 | 32-64 | 600 | 132 | 1050 | 4.8 | 350-550 |
| SJH-75D | 71 | 290 | 32-64 | 60O | 220-250 | 1990 | 9.2 | 500-1000 |
2. Main machines included in production line
| NO. | Name |
| 1 | SHR500A High Speed Mixer |
| 2 | Screw Loader |
| 3 | Main feeder |
| 4 | SHJ series Twin Screw Extruder |
| 5 | Electric Control System(cabinet) |
| 6 | Strands Pelletizing System/ Water ring Pelletizing System |
| 7 | Vibrating screen |
| 8 | Storage hopper |
Introduction of parts of SHJ Twin Screw Extruder
SHJ Twin Screw Extruder adopts modular design principle, component standardization manufacturing, which can present stable and reliable performance. Thanks to the modular principle, SHJ extruders can provide highly customizable solutions according to customers' process and special requirements. Based on different output torque grade, SHJ series extruders have basic type and efficiency type.
Process section includes barrels, screw shafts, screw elements, individual temperature heating and cooling unit. Barrels and screw elements are designed in block principle.
Block structure allows the screw elements combine and sequence optimized to realize the process:
Conveying-Plasticization- Compounding & Dispersion- Homogenization- Degassing- Pressure building
Also Block structure allows the barrels adjust freely to the fit the process requirement.
Based on different process position, SHJ extruders have different barrels type: feeding barrel, side feeding barrel, close barrel, open on top barrel, vacuum vent barrel, etc. According to the different jobs' requirement, barrels' materials can be nitride steel or bimetallic steel.
Multiple cutting systems can be combined with SHJ Twin Screw Extruder, such as strands pelletizing, hot-face cutting, water ring pelletizing and under-water pelletizing, etc.
Both Instrument control and PLC control are available to apply in the SHJ electrical controlling system. All the key electrical parts adopt European brands to guarantee the controlling system with significant and stable performance.
Advantages of the production line
1. It can produce high-quality pellets
2. It works with high efficiency
3. It's computerized with high automation
Why choose us
Lower investment cost for a high quality and durable machine;
Low energy consumption with high production output;
Overseas installation and training are available;
Machine warranty with spares in stocking and in-time delivery;
Fast machine delivery and installation: PLASTAR produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers. The regular delivery time of an PLASTAR recycling machine is within 50 working days.

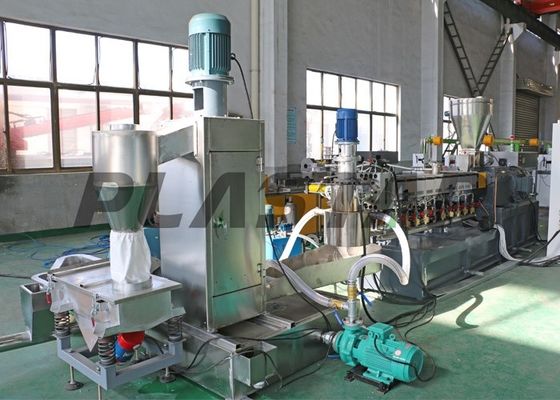

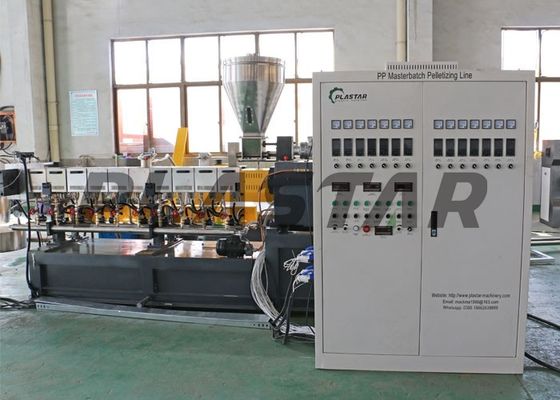

More machine pictures for your reference:
