|Applied Material:||PE, LDPE, LLDPE||Milling Type:||Milling Blade Type|
|Motor Brand:||Siemens Beide||Vibrating Screen:||Yes|
|Dust Collecting Device:||Optional||Cooling Type:||Water Cooling+air Cooling|
|Final Powder Size:||30mesh, 35mesh||Usage:||Rotational Molding Usage Powder|
LDPE LLDPE plastic pulveriser machine,
PLASTAR Plastic Grinding Machine,
PLASTAR LLDPE PE plastic pulveriser machine
1. Model: NP600
2. Milling room dia.: 610mm
3. Main motor power: 90kw
4. Rotation blade rotation speed: 5500rpm
5. Air blower motor: 7.5kw
6. Cooling method: Air cooling, water cooling
7. Pipe material: double layer 304 stainless steel
8. Vibrating screen dia. 1500mm stainless steel round screen
9. Inverter : ABB brand
10. Bearing: imported NSK brand bearing
11. Milling blade material: D2
12. Capacity: 600-650kg/h
13. Final powder size: 30-40mesh
14. Electrical control parts: Schneider brand electrical components
|Bearing||NSK brand bearing|
1. For the motor, we use Siemens Beide brand as standard to guarantee the quality.
2. The milling blades material are SKD-11, which can improve the service life.
3. There are totally three water cooling system on the machine, one is for the bearing, one is for the milling room, the left one is for the pipe.
4. Our machine design has two mouth for filling lubrication oil, one for filling the oil inside the bearing, one for filling outside the bearing, by thus, we can make sure the bearing’s long time usage without problem. We suggest the customer add oil every 24 hours usage, just add little amount oil will be ok.
PE LLDPE Pulverizer Machine Blade Picture:
Our new type milling blades adopt SKD-11 material, the milling capacity is also highly improved since we use more blades compared with traditional design.

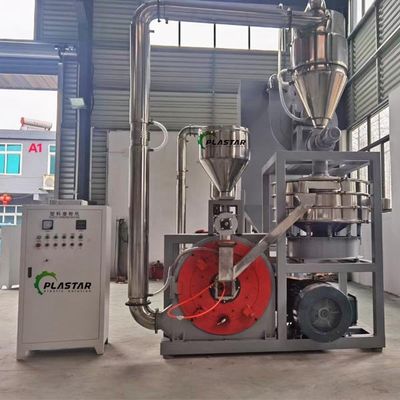

LLDPE PE Pulverizer Machine Picture:
